- Page 1 HGT 1051 Handheld Operating Panel Instruction Manual Date of creation: 23.02.2018 Version date: 07.06.2024 Article number: 01-245-1051-E...
- Page 2 (print, photocopy, microfilm, or in any other process) without express permission. We reserve the right to make changes in the content without notice. SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in this handbook and assumes no responsibility for damages that occur through its...

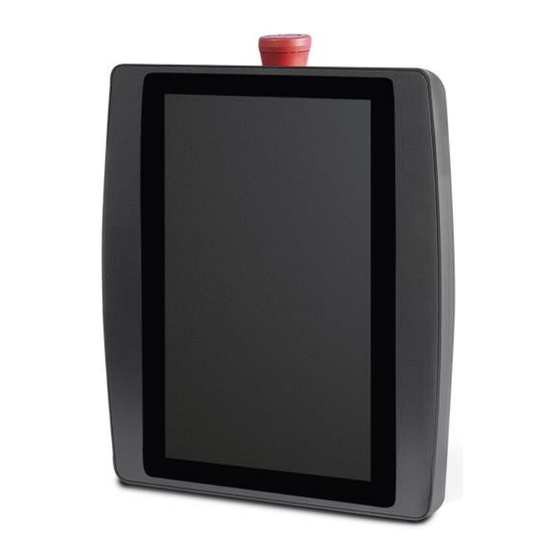

- Page 3 10.1" HANDHELD CONTROL PANEL HGT 1051 10.1" Handheld Control Panel HGT 1051 The HGT 1051 is an intelligent handheld operating panel used for programming and visualization of automated processes. Process diagnostics, operat- ing and monitoring of processes are thereby simpli- fied.
-
Page 4: Table Of Contents
10.1“ HANDHELD CONTROL PANEL HGT 1051 Table of Contents Essential Components ............5 Introduction ................6 Target Group/Purpose of this Manual ........6 Important Reference Documentation ......... 6 Contents of Delivery ..............6 Basic Safety Guidelines ............7 Symbols Used ................7 Disclaimer .................. - Page 5 10.1" HANDHELD CONTROL PANEL HGT 1051 Technical Data ............... 17 Performance Data ............... 17 Electrical Requirements ............. 18 Terminal ..................18 Environmental Conditions ............19 Display ..................19 Terminal Requirements .............. 20 Miscellaneous ................20 Mechanical Dimensions ............21 Wall Mount ................... 22 Interfaces ................
- Page 6 10.1“ HANDHELD CONTROL PANEL HGT 1051 11 Transport/Storage ..............31 12 Storage ...................31 13 Maintenance ................32 13.1 Cleaning and Disinfection of the Touchscreen ....... 32 13.2 Service ..................33 13.3 Repair ................... 33 14 Storage Media ................34 15 Disposal ..................35 Page 4...
-
Page 7: Essential Components
10.1" HANDHELD CONTROL PANEL HGT 1051 Essential Components • 10.1" WXGA TFT color display with LED backlighting • 10.1“ projected capacitive touch screen • Confirmation button (mounted on the rear side), 2-channel configuration • Key switch (mounted top-center), two channel wiring. -
Page 8: Introduction
Please see our website for our hotline number and business hours. Important Reference Documentation • Safety System Handbook • Operating Panel Connection Cables This and additional documents can be downloaded from our website or obtained through support. Contents of Delivery 1x HGT 1051 Page 6 07.06.2024... -
Page 9: Basic Safety Guidelines
10.1" HANDHELD CONTROL PANEL HGT 1051 Basic Safety Guidelines Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken. - Page 10 10.1“ HANDHELD CONTROL PANEL HGT 1051 Danger for ESD-sensitive components. Les signes de danger pour les composants sensibles aux décharges élec- trostatiques. Page 8 07.06.2024...
-
Page 11: Disclaimer
Please thoroughly read the corresponding documentation and this operat- ing manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through non-compliance with these instructions or applicable regulations. 07.06.2024... -
Page 12: General Safety Guidelines
2006/42/EG guidelines is correct. As long as the machine with which the product should be used does not comply with the guideline, op- erating this product is prohibited. Operate the unit with devices and accessories approved by SIGMATEK only. Page 10... - Page 13 10.1" HANDHELD CONTROL PANEL HGT 1051 CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened, otherwise it could be damaged! If the device does not function as properly or is damaged in a way that could pose a hazard, it must no longer be used! Regularly check the housing for mechanical damage.
-
Page 14: Designated Use
10.1“ HANDHELD CONTROL PANEL HGT 1051 Designated Use The Safety functions implemented in the product are designed for use with safety applica- tions in a PLC control and meet the required conditions for safe operation in compliance with SIL 3, HFT 1 according to EN IEC 62061 and in compliance with PL e. Cat. 4 in ac- cordance with EN ISO 13849-1. -
Page 15: Software/Training
10.1" HANDHELD CONTROL PANEL HGT 1051 Software/Training The application is created with the software LASAL CLASS 2 and LASAL SCREEN Editor, the safety application is created using the LASAL SAFETYDesigner. Basic safety infor- mation (functional safety) can be found in the Safety System Handbook. -
Page 16: Norms And Guidelines
10.1“ HANDHELD CONTROL PANEL HGT 1051 Norms and Guidelines Residual Risks In the system integrator’s risk analysis, the following residual risks must be CAUTION taken into consideration for the product: • Release of environmentally harmful substances, emissions and undesired temperatures •... -
Page 17: Functional Safety Standards
EN ISO 13850 Safety of machines - Emergency stop function - design principles 4.4.2 EU Conformity Declaration EU Conformity Declaration The HGT 1051 conforms to the following European guidelines: • 2006/42/EG Machine Guideline • 2014/30/EU Electromagnetic Compatibility (EMC guideline) •... -
Page 18: Safety-Relevant Parameters
10.1“ HANDHELD CONTROL PANEL HGT 1051 Safety-relevant Parameters The use of the specified parameters requires a risk analysis of the end application. Input Module Safety Ratings (SIL 3, HFT 1, PL e / Cat. 4) HGT 1051 PFH = 1.1E-11 (1/h) -
Page 19: Technical Data
10.1" HANDHELD CONTROL PANEL HGT 1051 Technical Data Performance Data Processor EDGE2 Technology Processor cores Internal cache 32-kbyte L1 Instruction Cache 32-kbyte L1 Data Cache 512-Kbyte L2 Cache Internal program and 512-Mbyte data memory (DDR3 RAM) Internal remnant 128-kbyte MRAM... -
Page 20: Electrical Requirements
10.1“ HANDHELD CONTROL PANEL HGT 1051 CAUTION The Safety interface must be used exclusively with the SIGMATEK SCP XXX! The status of the Safety-related inputs (confirmation, key, emergency stop switches) is sent to the SCP XXX. The function of the confirmation, key and emergency stop switches must be... -
Page 21: Environmental Conditions
10.1" HANDHELD CONTROL PANEL HGT 1051 Environmental Conditions Storage temperature -10 ... +60 °C 0 … +50 °C Environmental temperature Humidity 10-95 %, non-condensing Operating conditions pollution degree 2 altitude up to 2000 m ≤ 70 dB Noise emissions EMC resistance... -
Page 22: Terminal Requirements
10.1“ HANDHELD CONTROL PANEL HGT 1051 Terminal Requirements Connection technology M16 plug (see X2 on page 24) Special connector cable minimum bend radius: 147 mm Miscellaneous Article number 01-245-1051 Connector cable optionally available (see documentation Connection Cables for Operating Devices) -
Page 23: Mechanical Dimensions
10.1" HANDHELD CONTROL PANEL HGT 1051 Mechanical Dimensions 07.06.2024 Page 21... -
Page 24: Wall Mount
10.1“ HANDHELD CONTROL PANEL HGT 1051 Wall Mount Using the corresponding wall mount, the panel can be attached to the provided holder (A1) on the back (see dimensions for counter piece) An additional option consists of using the magnetic feet on the panel to hang it onto a mag- netic surface. -
Page 25: Interfaces
10.1" HANDHELD CONTROL PANEL HGT 1051 Interfaces Rear Connectors X1: USB interface 2.0 type A Function +5 V It should be noted that many of the USB devices on the market do not comply with USB specifications; this can lead to device malfunctions. This may cause the device to malfunction. - Page 26 10.1“ HANDHELD CONTROL PANEL HGT 1051 X2: Cable Connector M16 Wire Color Function Pink Safety interface H Gray Safety interface L shield Safety interface shield +24 V DC Black shield ETH shield Orange/white ETH1_Rx+ Blue ETH2_Rx- Blue/white ETH2_Rx+ Brown ETH2_Tx-...
-
Page 27: Key Switch
10.1" HANDHELD CONTROL PANEL HGT 1051 Key Switch The key switch is two-stage and read via the SCP XXX connected to the Safety interface. In the SCP XXX the "HBG0811_K" module is used; inputs 5 and 6 are assigned to the key switch. -
Page 28: Confirmation Switch
The switch is active when simply pressed (middle stage). In the SCP XXX, the “HBG0811_K" module is used and inputs 1 and 2 are used for the confirmation switch. With the "HGT1051" hardware class, it is possible on the HGT 1051 among other things, to evaluate the Safety number of the connected SCP XXX. -
Page 29: Emergency Stop
10.1" HANDHELD CONTROL PANEL HGT 1051 Emergency Stop The Emergency Stop is two-stage. In the SCP XXX, the “HBG0811_K" module is with the inputs 3 and 4. 07.06.2024 Page 27... -
Page 30: Assembly/Installation
10.1“ HANDHELD CONTROL PANEL HGT 1051 Assembly/Installation Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 2.3 Contents of Delivery for more information. On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system. -
Page 31: Wiring
10.1" HANDHELD CONTROL PANEL HGT 1051 10 Wiring 10.1 ESD Protection The operator must ensure that no ESD disturbances affect the product. 10.2 USB Interface The handheld operating panel has a USB interface. This interface has a USB interface connection that can be used to connect various USB devices (keyboard, mouse, storage media, hubs, etc.). -
Page 32: Recommended Cable Shielding
10.1“ HANDHELD CONTROL PANEL HGT 1051 10.3 Recommended Cable Shielding For applications in which the bus is operated outside the control cabinet, the correct shield- ing is required. Especially when for structural reasons, the bus line must be placed next to sources of strong electromagnetic interference. -
Page 33: Transport/Storage
10.1" HANDHELD CONTROL PANEL HGT 1051 11 Transport/Storage This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! During transport, temperature and humidity fluctuations may occur. -
Page 34: Maintenance
10.1“ HANDHELD CONTROL PANEL HGT 1051 13 Maintenance During maintenance and service, observe the safety guidelines in Chapter 13.1 Cleaning and Disinfection of the Touchscreen CAUTION Before cleaning and disinfecting the touch screen, the ETV must be turned off in order to prevent triggering functions or commands unintentionally! The touch screen can only be cleaned with a soft, damp cloth. -
Page 35: Service
10.1" HANDHELD CONTROL PANEL HGT 1051 13.2 Service This product was constructed for low-maintenance operation. 13.3 Repair In the event of a defect/repair, send the panel with a detailed error descrip- tion to the address listed at the beginning of this document. -
Page 36: Storage Media
10.1“ HANDHELD CONTROL PANEL HGT 1051 14 Storage Media It is recommended that only storage media provided by SIGMATEK (Com- pactFlash cards, microSD cards etc.) be used. The number of read and write actions have a significant influence on the lifespan of the storage media. -
Page 37: Disposal
10.1" HANDHELD CONTROL PANEL HGT 1051 15 Disposal Should you need to dispose of the device, the national elec- tronic waste regulations must be observed. The device appliance must not be disposed of as household waste. 07.06.2024 Page 35... -
Page 38: Documentation Changes
10.1“ HANDHELD CONTROL PANEL HGT 1051 Documentation Changes Change date Affected Chapter Note page(s) 16.08.2018 3.1 Performance Data Note corrected 02.11.2018 4.1 Wall Mount Diagram 25.06.2019 4.1 Wall Mount Measurement added 17.12.2019 9.1 Connection from the Graphic expanded Control Cabinet 08.09.2020...
