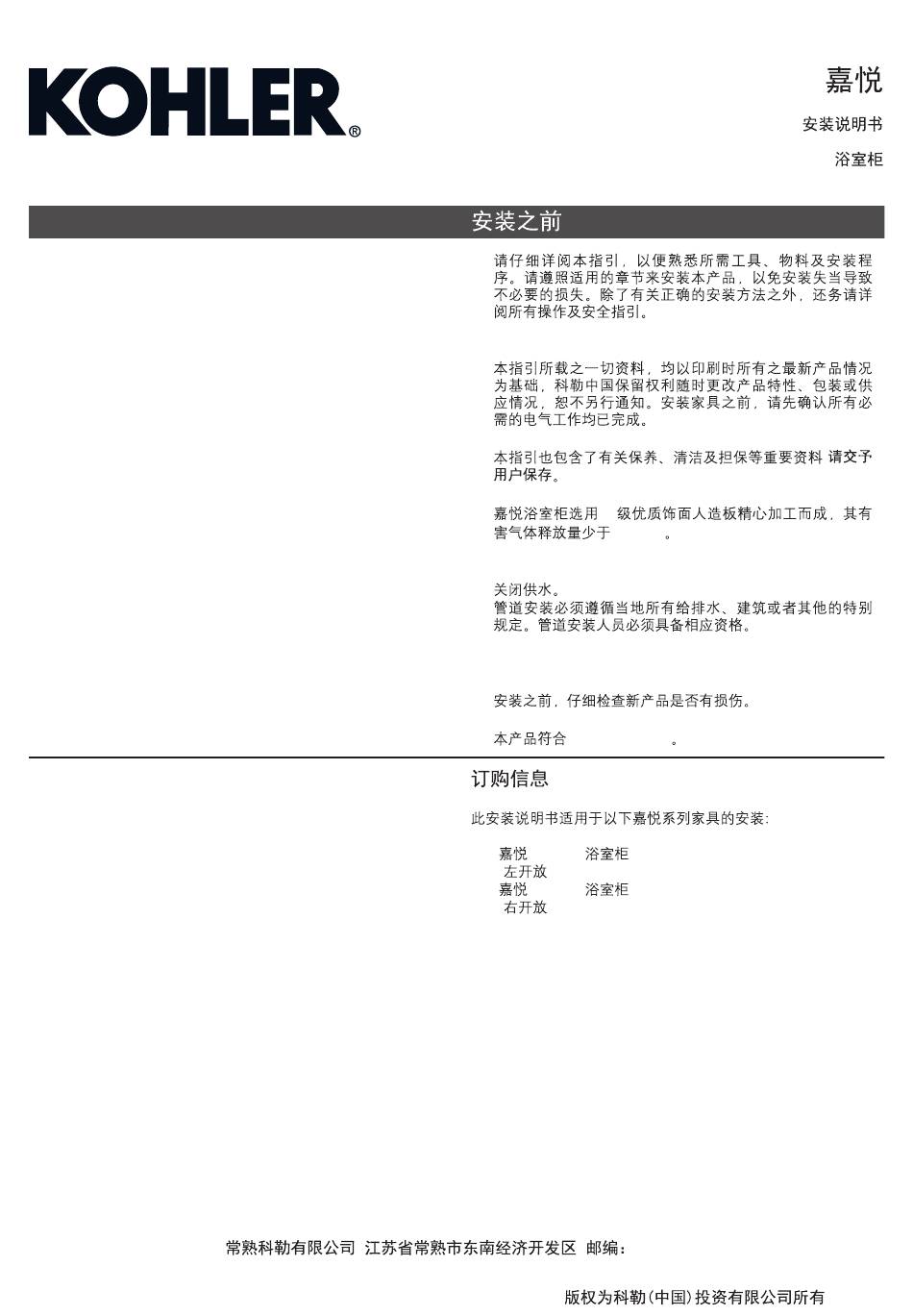

BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information-
consumer.
·
FAMILY CARE 2.0 bathroom cabinet adopts E1 grade
wood-based panel of high quality, and with further
processing, its harmful emissions will be less than
1.5mg/L.
·
Turn off the water supply.
·
The plumbing installation must comply with Water Supply
Regulations/Bye-laws, Building Regulations or any
particular regulations and practices, specified by the local
water company or water undertakers. The installation
should be carried out by a plumber.
·
Before installation carefully inspect the new fixture for any
signs of damage.
·
This product complies with GB 24977-2010.
ORDERING INFORMATION
This installation covers the following products in the FAMILY
CARE 2.0 range:

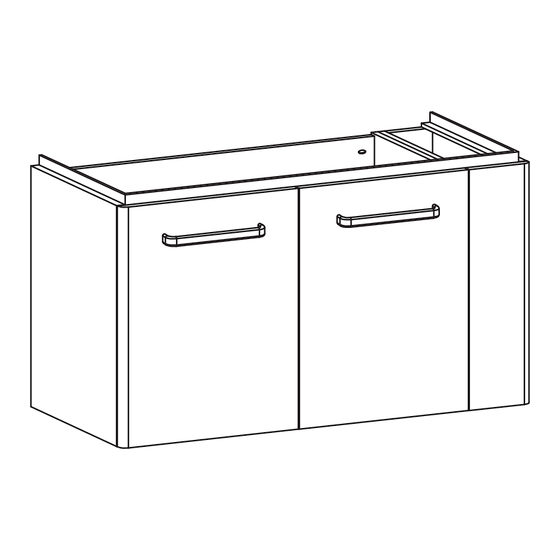

FAMILY CARE 2.0 CABINET
1000mm L ...............................................K-23804T-L-TP1
FAMILY CARE 2.0 CABINET
1000mm R ..............................................K-23804T-R-TP1
CHANGSHU KOHLER LTD.,
1398694-T01-B
please leave instructions for the
CHANGSHU, JIANGSU PROVINCE, CHINA
·
·
·
·
·
·
·
·
1000mm
(
)...................................................K-23804T-L-TP1
1000mm
(
) ..................................................K-23804T-R-TP1
SOUTHEAST ECONOMIC DEVELOPMENT ZONE,
POST CODE 215500
©
Copyright Kohler China Investment Co., Ltd. 2020
-1-
©
FAMILY CARE 2.0
INSTALLATION INSTRUCTIONS
K-23804T-L/K-23804T-R
E1
1.5mg/L
GB 24977-2010
215500
CABINET
-
2020
Advertisement
Related Manuals for Kohler FAMILY CARE 2.0 K-23804T-L
Summary of Contents for Kohler FAMILY CARE 2.0 K-23804T-L
- Page 1 · · All information in these instructions is based upon the latest product information available at the time of publication. Kohler China. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. ·...
-
Page 2: Safety Warnings
ROUGHING-IN UNIT : mm Reference Value Fig.1 Kohler reserves the right to change marked dimensions without prior notice. INSTALLATION A. Install Washbasin Cabinet Install the services. Hot (H) and Cold (C) inlets must be connected to the correct inlet pipes. - Page 3 1. Mark the position of hanged bracket according to dimensions as illustrated, and loosen the suspension hook of washbasin cabinet. Caution! Avoid the cables and pipes inner set when drilling in the wall. Note: Different types of bolts are required for different decoration boards.
- Page 4 5. Set the washbasin cabinet onto the wall bracket. Be sure the cabinet adjusted level and the back board of cabinet appressed to the wall by adjusting the screws of wall clips. See Fig.5. MAX1 Fig.5 6. Mark the wall through two holes at the corresponding positions as illustrated in Fig 6.
- Page 5 12. Adjust the screw with the wrench supplied to lift the support foot and make sure it is firmly attached to the cabinet bottom. Note: The support foot is the important part that must be installed to prevent the cabinet from descending. It must be firmly attached to the cabinet bottom (use the wrench until the screw is completely tightened.) 13.
-
Page 6: User Maintenance
6. Please do not sit, lean or step on the basin cabinet. 7. If any fixtures caused by abnormal reasons, Kohler China can supply paid replacement for service parts caused by abnormal reasons as shown in the Service Parts Page in the limited duration of warranty.
