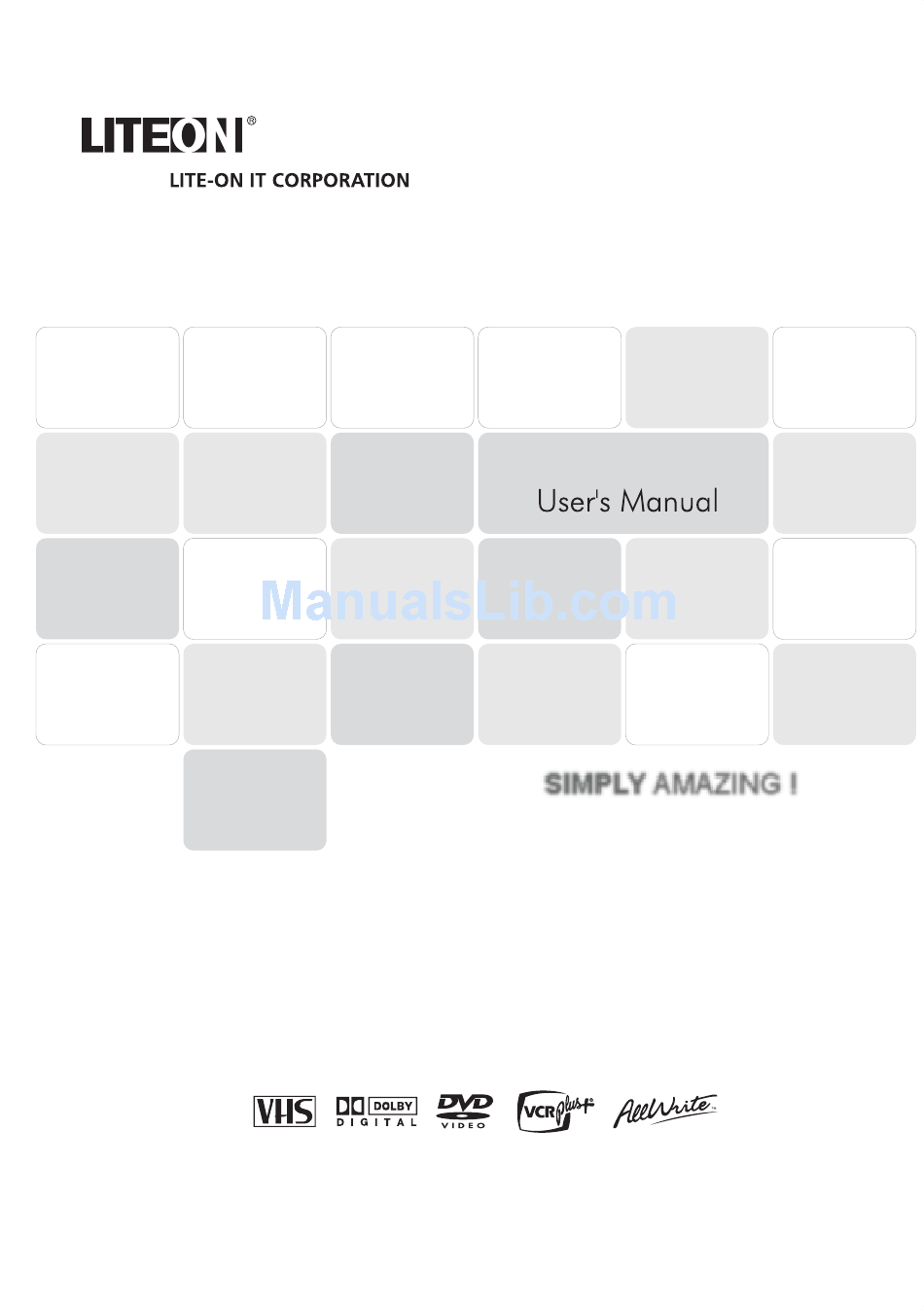

- Page 1 VCR/DVD Recorder LVC-9015G SIMPLY AMAZING !
-
Page 2: Table Of Contents
Table of contents Copying tapes/discs Getting started Copying VHS to DVD ............25 Accessories ................1 Copying DVD to VHS ............25 Important safety instructions ..........2 Warnings, cautions and others ..........3 Playback Disc information ..............4 DVD Disc Basic playback ........... 26 Controls and displays POWER, EJECT, PLAY, F.F., REW. -
Page 3: Important Safety Instructions
Important safety instructions Read instructions. Read all the safety and operating antenna or cable system is grounded so as to provide some instructions before operating the product. protection against voltage surges and built-up static charges. Retain instructions. Keep the safety and operating Article 810 of the National Electrical Code, ANSI/NFPA 70, instructions for future reference. -
Page 4: Warnings, Cautions And Others
Warnings, cautions and others THE FOLLOWING APPLIES ONLY FOR U.S.A. CAUTION! This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection CAUTION! against harmful interference in a residential installation. -
Page 5: Disc Information
Media information n Playable Media types Disc T y p e s L o g o s Characteristics This unit can playback DVD -Video discs and the region DVD -VIDEO code is printed on the rear of the unit. DVD ¡Ð R, DVD¡Ð RW and D V D ¡Ï R, DVD¡Ï R W, discs DVD ¡Ð... -
Page 6: Controls And Displays
Controls and displays Remote Control The Remote Control 1) Eject button ( EJECT) 2) Power button ( POWER) 3) Number buttons (1~9, 0) 4) VHS button (VHS) 5) DVD button (DVD) 6) Track up button (TRACK+) / Track down button (TRACK -) 7) Display button (DISPLAY) 8) Source button (SOURCE) 9) Setup button (SETUP) -
Page 7: Front Panel Connections
Controls and displays Front panel connections (For Reference Only) Names of parts and controls 1) POWER BUTTON 11) RECORD Lights green when power is on. Starts recording. Lights red when power is off. 12) INPUT 2) VCR INDICATOR Press to select signal input. Lights green when VCR deck is controllable. -
Page 8: Rear Panel Connections
Controls and Displays Rear panel connections (For Reference Only) Names of parts 1) RF OUT/IN Jacks 5) LINE OUT (VIDEO/AUDIO L/R) Jacks RF signal output/input Composite signal output. Note: Playback signals don’t go through here. Make 6) LINE OUT (S-VIDEO) Jack proper connections before using this DVD Recorder. -
Page 9: Connecting Up
Connecting Up Before making connections 1) Do not connect the AC power cord until all other connections are made. 2) Connect VIDEO OUT of the unit directly to the video input of your TV. Connecting VIDEO OUT of the unit to a TV via a VCR may cause a viewing problem when playing back a copy-protected disc. -
Page 10: Enhanced Video Options
Enhanced Video Options If your TV has S-Video or Component Video inputs, you can enjoy superior picture quality. 1. Connecting to a TV via S-Video out Connecting to a TV with a S-Video jack Connect an S-Video cable from the DVD Recorder with VCR to your TV as shown. Notes: 1. -
Page 11: Enhanced Audio Options
Enhanced Audio Options If you have a stereo system or digital audio receiver, you can enjoy superior sound quality. Connecting to a stereo audio amplifier or receiver Connect left/right audio cables (not supplied) from the DVD Recorder with VCR to your stereo system as shown. Connecting to a digital audio device Connect an amplifier with Dolby Digital and DTS decoders to enjoy surround sound. -
Page 12: Connecting A Satellite Box
Connecting a satellite receiver or cable box Connecting a cable box, digital cable box or satellite receiver Before using the unit, follow the steps below to connect the unit to an external receiver and the TV. Connecting to a cable box, digital cable box or satellite receiver with COMPOSITE jacks Use a RF cable (supplied) to connect the RF IN on the cable box/satellite receiver to the antenna outlet. -
Page 13: Initial Setup
Setup This Chapter allows you to customize the DVD Recorder+VCR to 4. When all settings are correct, press [ ] repeatedly to return meet your system requirements and set your personal preferences. to the main menu or press the [SETUP] button to exit the setup menu. -
Page 14: Tv Channel Setup
TV channel setup TV channel search When the scan channel function is activated, the TV channels are searched and stored in a specific order. If the channel assignment of your TV content provider changes or if you are reinstalling the unit, you may need to start this procedure again. -
Page 15: Channel Editor
Channel Editor Before channel editing 4.When finished, press [ ] [ ][ ] [ ] to Ensure that the antenna cables are securely connected up to select “EXIT.” Press the unit. [ENTER] to save the Adding or deleting TV channels manually setting and exit the “Channel Editor”... -
Page 16: Mapping The Vcr Plus+ Channels
Channel Editor Mapping the VCR Plus+ ® Channels The VCR Plus+ Programming System (VCR Plus+ ® ) greatly simplifies Timer Recording. To record a show, just look up its PlusCode number in your newspaper or magazine listings, and enter it into the Timer Record menu. To get started, you must first match your local TV channels to the Guide Channel Numbers (GCNs). -
Page 17: Recording
Recording 5.Press [VHS] to [DVD] to select the target Before recording recording device. This unit records on CD-R/-RW, DVD-R/RW, DVD+R/RW discs VHS tapes begin recording at the position where it was left. You and VHS tapes. Please use qualified recordable discs/VHS tapes must select the desired recording location on the tape. -
Page 18: Adding New Recordings
Recording Playback with DVD menu ( for DVD disc record- Adding new recordings ing only) Adding new recording sessions: The DVD Menu displays all the titles (programs) recorded on a disc Press [RECORD] to start a new recording ses- and you can select the one you want to play from. sion and press [ STOP] at the point you want 1.Press [... -
Page 19: Recording From A Vcr Or Camcorder
Recording To start recording Playback of recorded contents on a VHS tape 1.Press [SETUP] and then select “RECORD” to Press [ PLAY] set the desired recording mode. 1. Press [VHS] on the remote control to switch to tape control. Press [ F.F.] or [ REW] to fast forward or rewind the tape DVD Quality... -
Page 20: Recording From A Dv Camcorder
Recording Recording from a DV Camcorder 8.Resume the playback of the DV Camcorder and press [RECORD] on the unit’s remote control to start recording. 1. Connect the DV camcorder to the unit using a IEEE- 1394 4-pin cable. Press [ PAUSE ] to pause recording . Press [ PAUSE ] again or [RECORD] to resume recording. -
Page 21: Use "Easy Guider" To Record Dv Signals
Recording Use “Easy Guider” to record DV signals Disc Quality Tape Quality 1. Connect the DV camcorder to the unit using a IEEE- 1394 4-pin cable. 2.Power on your TV and this unit. Make sure that a recordable disc or a video cassette is inserted or loaded for recording. -
Page 22: Cd-R/Cd-Rw Disc Recording
Recording Recording on a CD-R/CD-RW disc 2.Press [ GUIDER ] to display the “Easy Guider” menu, press [ ] [ ] to select the “Record” and then press [ENTER]. Before to start recording This unit records video in either VCD / SVCD or audio CD format on 3.Press [ ] [ ] to select the signal-input and CD-R/RW discs. -
Page 23: Timer Record
Timer Record Prior to timer record 7.Press [ ] [ ] to select “Date” and press Please check that the recordable disc or the VHS tape has enough [ENTER] . available space for the timer recording session(s). Before you start Press [ ] [ ] [ ] [ ] to make your selection and [ENTER] for to record, follow the steps below to set the date, time, picture confirmation. -
Page 24: System
Timer Record 12.Press [ ][ ] to select the “ ” icon and ® Recording TV programs using the VCR Plus+ then press [ENTER] to exit the “Timer-Record” system menu. 1.Press [ POWER] to turn the unit on. 2.Make sure that a recordable disc or a VHS tape is inserted or loaded for recording. - Page 25 Timer Record 8. [ ] [ ] to select “Date” and press [ENTER] . Press [ ] [ ] [ ] [ ] to make your selection and [ENTER] for confirmation. To enter the number, use the numbered buttons (0, 1~9).
-
Page 26: Copying Tapes/Discs
Copying Tapes/Discs Copying VHS to Disc Copying Disc to VHS Follow these steps to copy contents on a VHS tape to a record- Follow these steps to copy contents on a disc to a VHS tape. able disc. 1. Insert the DVD you wish to copy in the DVD Note: tray. -
Page 27: Playback
Playback DVD/VCD/SVCD video disc and video cassette playback Before you can start to enjoy the digital audio and video on DVDs or video cassettes, make sure that you have made the necessary settings in the Setup screen menus outlined in the previous section that correspond to your home system. Having made these settings, you are now ready to start using the player to enjoy DVDs, Video CDs, and CDs and video cassettes. -
Page 28: Tape Basic Playback
Playback VHS Tape playback Press [ PAUSE] again to start “frame by frame mode”. Turn on the television and select the appropriate video input on the Press repeatedly to advance DVDs and Video CDs frame by television to suit the connections for the player. frame during playback in pause mode. -
Page 29: Dvd Disc Navigation Operation
Playback SUBTITLE During playback to select a subtitle language from Navigation - Playback a disc those available on the current disc. During disc playback, press [NAVI.] to display the Navigation menu. Press [ ] [ ] [ ] [ ] to move the highlight around and press [ENTER] for confirmation. -
Page 30: Tape Navigation Operation
Playback Navigation - Playback a VHS tape To exit the Navigation menu During VHS tape playback, press [NAVI.] to display the “Naviga- Press [NAVI.] again or [ ] to exit the “Naviga- tion” menu. Press [ ] [ ] [ ] [ ] to move the highlight around and press [ENTER] for confirmation. -
Page 31: Jpeg/Mp3 File And Audio Cd Playback
JPEG/MP3 file and Audio CD playback The unit can play an Audio CD, JPEG, or MP3 file on a disc. Slide show Concurrent play JPEG and MP3 files on the same JPEG file playback disc. Playing JPEG files 1.Place the disc on the tray. 1.Place the JPEG disc on the tray. -
Page 32: Dvd Menu And Edit Menu
Editing (For DVD Disc Only) Before starting to edit Protecting a title This section explains the basic editing functions on the unit. Please finish all the editing before finalizing the disc. You cannot 1. At the edit menu, press [ ] [ ] to select edit a finalized disc. -
Page 33: Easy Guider
Easy Guider Playback When you select “Record Disc” and insert a non-recordable disc, follow the on-screen instructions to change to a recordable disc. 1. Press [ GUIDER] to display the “ Easy Guider” menu. Select “Playback” and press [ENTER]. 3. Press [ ] [ ] to select the signal input source and press [ENTER]. -
Page 34: Copy
Easy Guider Copy copyright or have obtained permission from the copyright owner or otherwise have a legal right to reproduce or copy, you may be 1. Press [ GUIDER] to display the “Easy violating the law, including copyright law, and may be subject to Guider”... -
Page 35: Finalize
Easy Guider Finalize 3. When done, select “EXIT” and press [ENTER] to exit the erase menu. For DVD+R/DVD-R/DVD-RW and CD-R/CD-RW discs: Disc finalizing is necessary when you want to playback a DVD+R, DVD-R/-RW, CD-R or CD-RW on another player or a PC. Notes: For DVD+RW disc, finalizing is NOT required. -
Page 36: Gui Operation
GUI operation Changing settings This chart displays the settings for this unit. Change the settings to Clock suit your preferences and to setup the unit in the environment in Auto Clock which it is being used. Enables the clock to be set automatically or manually: Date Sets the date:... -
Page 37: Firmware Update
GUI Operation Firmware update Record As the firmware is continuously refined for greater stability and compatibility of the player, user may DVD Quality chose to update the latest firmware form http://www. Set the default quality of recording. (1hr) (2hrs) (Default) liteonit.com/DC/english/download.htm LP (3hrs) (4hrs) -
Page 38: Glossary
Glossary DVD+RW 480i/480p DVD+RW is a recordable and rewritable disc. DVD+RW use a Indicates the number of scanning lines and scanning format of an recording format that is comparable to a DVD-Video format. image signal. 480i indicates 480 scanning lines with interlace format, and 480p Interlace output indicates 480 scanning lines with progressive format. -
Page 39: Specifications
Specifications MEDIA TYPES SUPPORTED (Read Only): AUDIO RECORDING FORMAT DVD-R/RW, DVD+R/RW, DVD-ROM, CD-R/RW, CD-ROM, VHS DVD+VR (HQ/SP/LP/EP/SLP): Dolby Digital 2-channel tape AUDIO fomat supported - Playback CONTENT FORMAT SUPPORTED : Analog output 2channel 1) DVD-Video Digital output coaxial/digital 2) DVD+VR (DVD+VR format is compatible with DVD-Video in most case) Format supported LPCM/Dolby Digital/MPEG... -
Page 40: Troubleshooting Guide
Troubleshooting Guide No playback on DVD recorder. Picture --> There’s no recording on the disc. Check the disc first. --> A unplaybackable disc type is inserted. Check the playable disc The image from this unit does not appear on the type list. - Page 41 Customer Call Center: 886-3-578-7722#2604/2605 Service e-mail: dc_support@liteonit.com USA: LITE-ON (USA) International Inc. 42000 Christy Street, Fremont, CA 94538 Tel: 1-510-687-1800 Fax: 1-510-687-1900 Customer Call Center: 1-888-8-LITEON (1-888-854-8366) 1-866-269-5133 (French) Service e-mail: dc_support@liteonit.com Europe: LITE-ON Information Technology (Europe) B.V. Meerenakkerplein 16, 5652 BJ EINDHOVEN,...
