FECO
FECO:
PRODUCT:
DEVICE WEB SITE:
RELEASE DATE:
ESTIMATED MAN HOURS:
CLASS OF CHANGE:
REASON FOR CHANGE:
RELATED FECO/AB:
1.
Note
Throughout this FECO a SPACE in a string is shown by the symbol ∇ and all other
spaces are purely cosmetic. A carriage return is shown by the symbol ↵ or <CR>
Introduction
2.
Merchant Code
MEC description
The QS6000 Plus is a replacement for the KTP5312 both of which are manufactured by
PSC
It is designed to connect to the Aux Port of a VDU or via a keyboard wedge
WARNING
FECO BC#9 QS6000
F.E.C.O.
PSC QS6000 Plus
PSLS46
BCR-PSCQ6000(SCANNER)(9-PIN)
WARNING
DO NOT LOOK DIRECTLY AT THE LASER BEAM!
BC#9

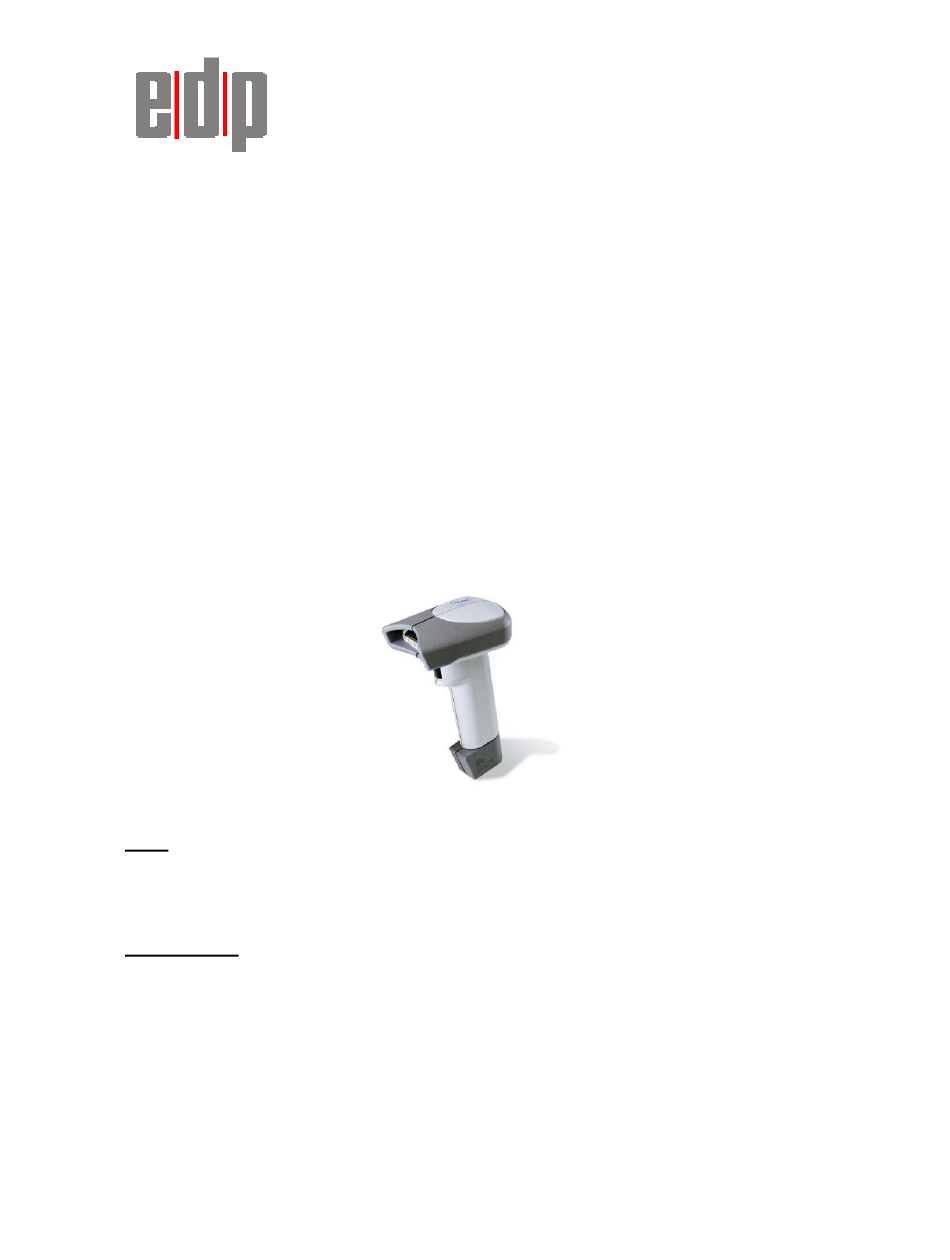

QuickScan QS6000 Plus Bar Code Reader
http://www.pscnet.com
th
14
February 2003
N/A
Informational
Introduction and Setup of the Bar Code Reader
WYSE#6/2
WARNING
WARNING
BC#9
Page 1 of 6
Advertisement
Related Manuals for PSC QS6000 Plus
Summary of Contents for PSC QS6000 Plus
- Page 1 Merchant Code PSLS46 MEC description BCR-PSCQ6000(SCANNER)(9-PIN) The QS6000 Plus is a replacement for the KTP5312 both of which are manufactured by It is designed to connect to the Aux Port of a VDU or via a keyboard wedge WARNING WARNING...
- Page 2 FECO BC#9 Connection to a Wyse55 VDU and Setup Connect the QS6000 scanner to your system using the approved PSC QS6000 I/F cable supplied with the device WARNING Connection using an unapproved cable can result in damage to the scanner. The...
- Page 3 FECO BC#9 Then set to the EDP Standard by scanning the Bar Codes as follows: - Disable Label I.D. Control To turn autosense on for use in the stand scan each the following Bar Codes: - Enable AutoSense Stand Mode Disable Very Low Power Mode FECO BC#9 QS6000 Page 3 of 6...
- Page 4 FECO BC#9 Scanning For optimal scanning results … The scanner must be pointed at a slight angle to the barcode. (Do not hold the scanner perpendicular to the barcode) The laser beam must cross the entire label. (The scanner cannot correctly read a barcode if the entire label is not scanned) With the VDU at TCL and bi-directional on, scan a barcode that has human readable text and verify that it is echoed correctly to the screen...
- Page 5 Scanner: 6.0 ozs. / 170 g Cable (32”/81 cm): 6.2 ozs / 176 g Cable length options Collapsed: 32” / 81 cm, Max. Working: 72” / 183 cm; Collapsed: 80" / 203 cm, Max. Working: 120” / 305 cm (For other cable options, contact your PSC sales representative.) 5.3 Optical...
-
Page 6: Decoding Capability
FECO BC#9 Shock (at 23°C): Withstands multiple 5.0' / 1.5 m drops onto concrete / 100+ drops to countertop Vibration: MIL-STD-810E Water & Dust: Resistant, IEC529 rating IP53DW 5.6 Decoding Capability • UPC A, E / EAN 8,13 / JAN 8, 13 (Codes add-ons P2 / P5, Code 128) •...
