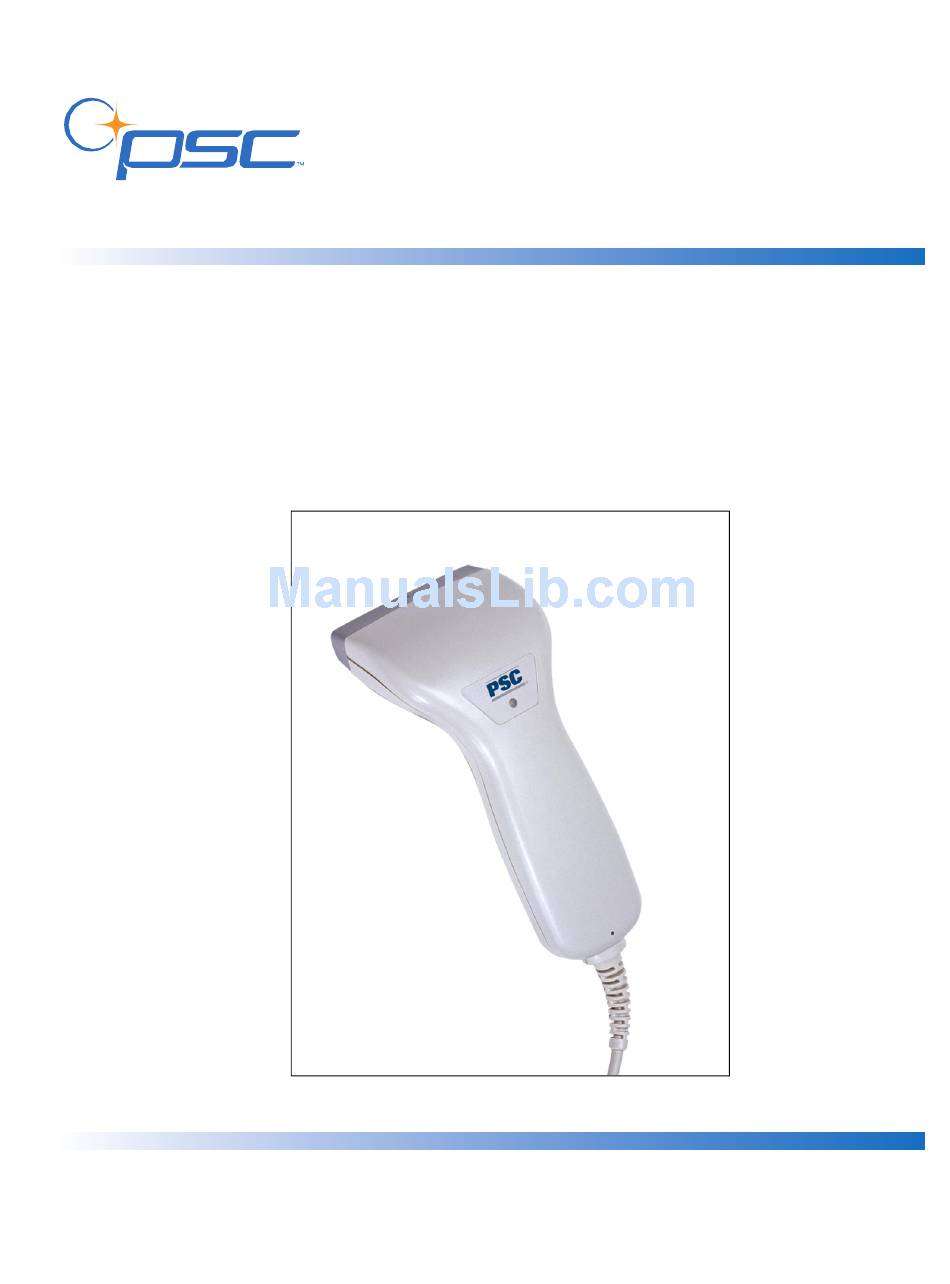

  • Page 1 QS200 Handheld Scanner Programming Manual v 2.1...
  • Page 2 All rights reserved. No part of the contents of this documentation or the procedures described therein may be produced or transmitted in any form or by any means without prior written permission of PSC Inc. Owners of PSC Inc.'s products are hereby granted non-exclusive, revocable license to reproduce and transmit this docu mentation for the purchaser's own internal business purposes.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction Flow Chart Interfaces On/Off Symbologies Code 39 Codabar/NW7 Interleaved 2/5 Standard 2/5 Matrix 2/5 EAN-13/EAN-8 UPC-A/UPC-E CHINESE POSTAL 2/5 Reading Modes General Parameters Keyboard Parameters Terminal Type Function Key Setting Function Key Table Function Key Labels Languages...
  • Page 4 RS232 Parameters CCD Wand Emulation OCIA Types Magnetic Setting Code Mark Truncate Digits ASCII Table Hexadecimal Labels Pinout Assignments Notes: 1. Options marked by { } are only available for some models. 2. Factory default values are indicated by 3. All references to numbers in this menu are in Decimal, but you MUST input it as Hexadecimal.

  • Page 5: Introduction

    INTRODUCTION Bar Code devices provide an accurate, easy, and fast method of data entry and data storage for computerized information systems. The products we are offering now can be integrated into any host computer system by the following ways: Keyboard emulation Wand emulation RS-232C serial asynchronous Dual RS-232C...

  • Page 6: Flow Chart

    -1- FLOW CHART S T A R T O F C O N F I G U R A T I O N  S E L E C T I N T E R F A C E S S E L E C T S Y M B O L O G I E S O P E R A T I O N P A R A M E T E R S SET FACTORY DEFAULTS **...

  • Page 7: Interfaces

    INTERFACES - 2 -   KEYBOARD   RS232C   CCD WAND EMULATION   {OCIA}   RESERVED 1   RESERVED 2 To choose an Interface, e.g. KEYBOARD: 1. Scan START OF CONFIGURATION 2. Scan KEYBOARD 3. Scan END OF CONFIGURATION...
  • Page 8 - 3 - SYMBOLOGIES CODE 39    INTERLEAVED 2 OF 5    STANDARD 2 OF 5    MATRIX 2 OF 5    CODABAR   ...
  • Page 9 SYMBOLOGIES - 4 - EAN-8    EAN-13/UPC-A    UPC-E    ISBN/ISSN     EAN/UPC ADDON 2/5   ...

  • Page 10: Code

    - 5 - SYMBOLOGIES CODE 128    CODE 93     CHINESE 2 OF 5     {MSI/PLESSEY}     {CODE 11}   ...
  • Page 11 SYMBOLOGIES- 6 - {PHARMACEUTICAL CODE}   {CODE IV}    {CODE49}    Itallian PharmaCode  “A”   EAN-8 TO EAN-13   In order to enable Italian PhamaCode, PHARMACEUTICAL CODE should also be enabled.
  • Page 12 - 7 - CODE 39 TYPE   STANDARD FULL ASCII TRANSMIT START/STOP CHAR   VERIFY CHECKSUN   TRANSMIT CHECK CHAR   CODE39 LABEL ID    ...

  • Page 13: Codabar/Nw7

    CODABAR/NW7 - 8 - TRANSMIT START/STOP     TYPE OF START/STOP     ABCD/ABCD ABCD/TN      abcd/abcd abcd/tn TRANSMIT CHECK DIGIT     VERIFY CHECK DIGIT    ...

  • Page 14: Interleaved 2/5

    - 9 -INTERLEAVED 2 OF 5 BAR CODE LENGTH   MINI. TO MAXI. = ? <6-32> MINI.=2. MAXI.=32   CUSTOM DEFINE 3 SETS AVAILABLE TRANSMIT CHECK DIGIT     VERIFY CHECK DIGIT    ...
  • Page 15 INTERLEAVED 2 OF 5- 10 - To choose BAR CODE LENGTH, e.g. 10 - 20, (0A,14 in Hex): 1. Scan START OF CONFIGURATION 2. Scan BAR CODE LENGTH 3. Scan 0 4. Scan END OF CONFIGURATION CUSTOM DEFINE, user may choose 1 to 3 individual lengths, excluding the range between, e.g.

  • Page 16: Standard 2/5

    - 11 -STANDARD 2 OF 5 BAR CODE LENGTH   MINI. TO MAXI. = ? <6-32> MINI.=2. MAXI.=32   CUSTOM DEFINE 3 SETS AVAILABLE TRANSMIT CHECK DIGIT     VERIFY CHECK DIGIT     See example on page 10...

  • Page 17: Matrix 2/5

    MATRIX 2 OF 5- 12 - BAR CODE LENGTH  MINI. TO MAXI. = ? <6-32> MINI.=2. MAXI.=32  CUSTOM DEFINE 3 SETS AVAILABLE TRANSMIT CHECK DIGIT   VERIFY CHECK DIGIT   See example on page 10...

  • Page 18: Ean-13/Ean-8

    - 13 - EAN-13/EAN-8 EAN-13 TRUNCATE LEADING DIGIT   TRANSMIT CHECK DIGIT      EAN-8 TRUNCATE LEADING DIGIT  TRANSMIT CHECK DIGIT    Example: user wants to truncate 1 (the first leading digit): 1. Scan START OF CONFIGURATION 2.

  • Page 19: Upc-A/Upc-E

    UPC-A/UPC-E - 14 - UPC-A TRUNCATE LEADING DIGIT  TRANSMIT CHECK DIGIT    UPC-E TRUNCATE LEADING DIGIT  TRANSMIT CHECK DIGIT    UPC-E TO UPC-A   See example on page 13...
  • Page 20 - 15 - CHINESE 2 OF 5 BAR CODE LENGTH  MINI. TO MAXI. = ? <6-32> MINI.=2. MAXI.=32  CUSTOM DEFINE 3 SETS AVAILABLE TRANSMIT CHECK DIGIT   VERIFY CHECK DIGIT   See example on page 10...

  • Page 21: Reading Modes

    READING MODES - 16 -  TRIGGER ON/OFF TRIGGER ON/     GOOD READ OFF  CONTINUOUS/ TRIGGER OFF  CONTINUOUS/ LED ALWAYS ON  TESTING  TRIGGER ON/ GOOD READ OFF/ DELAY TIME = ?  CONTINUOUS/ GOOD READ OFF/ DELAY TIME = ? ...

  • Page 22: General Parameters

    - 17 - GENERAL PARAMETERS TERMINATOR   NONE   CR/LF RS232   SPACE     CTRL-C    EXEC STX..ETX   LED INDICATOR  ...
  • Page 23 GENERAL PARAMETERS - 18 -   TERMINATOR DELAY = ? <4> KEYBOARD <0> RS232  BUZZER PITCH = ? <18>  BUZZER <5> DURATION = ? TIME(S) OF DATA COMPARISON   POWER UP BEEPING    DATA FORMAT  PREAMBLE/DATA/ POSTAMBLE/ TERMINATOR...
  • Page 24 - 19 - GENERAL PARAMETERS   CHARACTER DELAY = ? <4> KEYBOARD <0> RS232   INTERFIELD DELAY = ? <20> SENDING NUMBER OF DIGITS  ...

  • Page 25: Keyboard Parameters

    KEYBOARD PARAMETERS - 20 -      LOWER CASE UPPER CASE NUMBER KEYS     ALPHANUM NUMLOCK PAD KEYBOARD SPEED     NORMAL TURBO   PREAMBLE   POSTAMBLE 10 Bytes each CANCEL Preamble/postamble ! Please read PREAMBLE or POSTAMBLE label first...
  • Page 26 - 21 -TERMINAL TYPE " PC/AT, PS/2 30-80 " PC/XT " PS/2 25,30 IBM5541 " IBM PS/55 ST IBM 3472,3477 IBM 5530-SC " IBM PS/55 MP IBM 5295 " IBM 5530-ZC " NEC 9801 " NEC 5262/N8VS2 " CT 500/700...

  • Page 27: Terminal Type

    TERMINAL TYPE- 22 - " {Mac II,SE} "  {WYSE} "  {ACER D7300} " {WANG} "# {THINK PAD}...
  • Page 28 - 23 -FUNCTION KEY FUNCTION KEY EMULATION     ENABLE DISABLE Scanner can read Function keys and other special keys, please refer to FUNCTION KEY LABLES. When doing this, Code 39 FULL ASCII must be To concatenate a Function Key or other special keys with input data, e.g.

  • Page 29: Function Key Table

    FUNCTION KEY TABLE -24- BkSp Home PgUp PgDn...
  • Page 30 -25- FUNCTION KEY LABELS                Enter    BkSp  Home PgUp...

  • Page 31: Function Key Labels

    FUNCTION KEY LABELS -26-   PgDn   ! " # $ % &...

  • Page 32: Languages

    - 27 - LANGUAGES $  $ BELGIAN DANISH $ $ FRENCH GERMANY $ $ ITALIAN PORTUGUESE $ $ SPANISH SWEDISH $ $ SWISS $  $ WYSIWYG...

  • Page 33: Rs232 Parameters

    RS232 PARAMETERS - 28 - BAUD RATE ! ! ! ! 1200 2400 ! ! 4800 9600 ! ! 19200 38400 DATA BIT % % STOP BIT % %...
  • Page 34 - 29 - RS232 PARAMETERS PARITY & & NONE & & SPACE EVEN & MARK HAND SHAKING    NONE ACK/NAK   XON/XOFF RTS/CTS SCANNER READY  RTS/CTS DATA READY...
  • Page 35 RS232 PARAMETERS - 30 - ACK/NAK Response Time CTS Observation Time     300 msec 500 msec     1 sec 2 sec     3 sec 5sec   ∞   PREAMBLE   POSTAMBLE 10 Bytes each CANCLE PREAMBLE/POSTAMBLE ! * Please read PREAMBLE or POSTAMBLE lable first...

  • Page 36: Ccd Wand Emulation

    - 31 -CCD WAND EMULATION '  ' BAR=HIGH BAR=LOW SCAN SPEED ' SLOWEST (28cm/sec) ' SLOW (36cm/sec)  ' NORMAL (49cm/sec) ' HIGH (80cm/sec) ' HIGHEST (208cm/sec) BASE ON 0.125 mm BAR CODE...
  • Page 37 OCIA - 32 - OCIA MACHINES  "   "     CASIO SIEMENS  "    " NIXDORF    NCR-S  "   " NCR-F...

  • Page 38: Magnetic Setting

    - 33 - MAGNETIC SETTING TRACK DELIMITER         NONE         CR/LF    SPACE TRACK SELECTION       TRACK 1 TRACK 2       TRACK 3 TRACK 1&2      ...
  • Page 39 CODE MARK- 34 - ( ( CODE 39 = ? ITF 2/5 = ? ( ( STD 2/5 = ? MTX 2/5 = ? ( ( CODABAR = ? EAN-13 = ? ( ( UPC-A = ? EAN-8 = ? ( ( UPC-E = ?

  • Page 40: Code Mark

    - 35 - CODE MARK  (  ( {CODE IV} {PHARMACEUTICAL} CODE MARK CANCELLATION ! * Read code type first CODE MARK    ...
  • Page 41 TRUNCATE LEADING DIGIT - 36 -   CODE 39   CODABAR   MATRIX 2/5    STANDARD 2/5   INTERLEAVED   CODE 128   CODE 93   PHARMACEUTICAL   CODE IV User can choose only 1 symbology at a time to truncate leading or ending digits.
  • Page 42 - 37 - TRUNCATE ENDING DIGIT   CODE 39   CODABAR    MATRIX 2/5   STANDARD 2/5   INTERLEAVED   CODE 128   CODE 93   PHARMACEUTICAL   CODE IV  ) EAN-13   EAN-8   UPC-E   UPC-A...

  • Page 43: Ascii Table

    ASCII TABLE - 38 -  START CONFIGURATION   ABORT CONFIGURATION   CONFIGURATION ASCII TABLE NUL DLE SP SOH DC1 STX DC2 " ETX DC3 EOT DC4 ENQ NAK ACK SYN & BEL ETB < >...

  • Page 44: Hexadecimal Labels

    - 39 - HEXADECIMAL LABELS '                    (                         ...
  • Page 45 PIN ASSIGNMENTS - 40 - TTL Signal Output COLOR FUNCTION 9 PIN 5 PIN 6 PIN 6 PIN MINI DSUB/AMP (F) DIN (M) DIN (M) DIN (M) BROW START OF SCAN YELLO SIGANLDATA GREEN LED INDICATOR TRIGGER BLUE POWER ENABLE BLACK PURPLE GND SHIELD...
  • Page 46 - 41 - PIN ASSIGNMENTS RS232 SIGNAL OUTPUT COLOR FUNCTION 9 PIN DSUB/AMP (F) 25 PIN DSUB (F) BROW YELLO GREEN ORANGE BLUE PURPLE Vcc +5V 25,16...
  • Page 47 PIN ASSIGNMENTS - 42 - RS232/Keyboard Signal Output COLOR FUNCTION 9 PIN DSUB/AMP (F) 25 PIN DSUB (F) BROW BLUE PURPLE Vcc +5V 25,16 ORANGE NOTE: RS232 CABLE WITH DC POWER SOCKET FOR DC POWER 5V OCIA Signal Output COLOR FUNCTION 8 PIN DIN (M) 9 PIN DB-(F) 10 PIN...
  • Page 48 Fax: [852]-2-521-0291 Fax: 49 (0) 61 51/93 58 58 Fax: (305) 539-0206 Australia Italy United Kingdom PSC Asia Pacific Pty Ltd. PSC S.p.A. PSC Bar Code Ltd. North Ryde, Australia Vimercate (MI), Italy Watford, England Telephone: [61] 0 (2) 9878 8999 Telephone: [39] (0) 39/62903.1...
