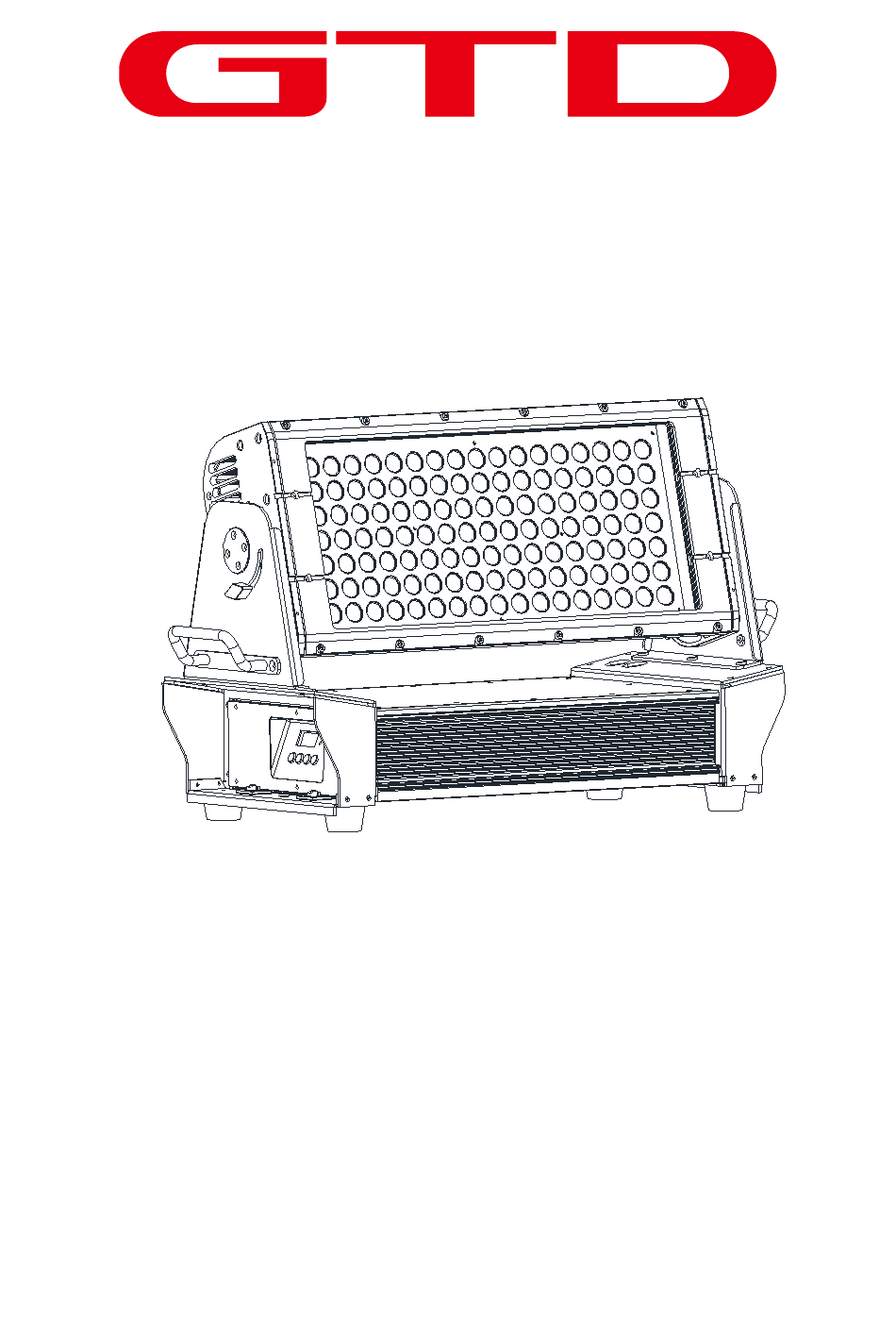

- Page 1 GTD-LT500P User Manual...
- Page 2 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
Contents 1. Safety instructions ............................... 1 2. Product introductions..............................3 2.1 Dimensions ................................3 2.2 Fixture overview ..............................4 2.3 Accessories ................................4 3. Packing and shipping ..............................5 3.1 Unpacking ................................5 3.2 Packing after use ..............................5 4. Installation ..................................5 4.1 Clamps installation .............................. -
Page 4: Safety Instructions
Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual. -
Page 5: General Guidelines
To ensure operational safety, broken or damaged cables and light source can only be fixed or replaced by certified technicians, certified local distributors or the manufacturer. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured parts. -
Page 6: Product Introductions
2. Production instructions 2.1 Dimensions 511mm [20.12"] 272mm [10.72"] 644mm [25.34"]... -
Page 7: Fixture Overview
2.2 Fixture overview 玻璃压板 透镜 电木螺丝 把手 电源盒 2.3 Accessories Item Unit Remark User Manual Safety cable ￠4*60cm 7*19 steel 3-pins signal line 0.5m power line 0.5*2.5mm2... -
Page 8: Packing And Shipping
3. Packing and shipping 3.1 Unpacking Notes All products are quality controlled before they dispatched to customers. If the fixture is damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim. Photographic evidence of the damage must be provided. -
Page 9: Power/ Control Connection
5. Power/ Control connection 5.1 Power connection Connection method: L (Live) Brown wire E (Earth) Yellow / Green bi-color wire N (Neutral) Blue wire The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is strongly recommended that each fixture are to be connected to the power source separately so that they can be switched on / off individually. -
Page 10: Testing
5.3 Testing Connect the fixture to AC power. Check if the lamp is on and the fixture is independently controllable before putting into operation. 6. Control panel 6.1 Panel instruction The control panel features touch-sensitive buttons and LED digital display for quick and easy setup of address code ... -
Page 11: Technical Specification
7. Technical specification Optical Light source: LED 6W Expected average lifetime: 50000 h Color temperature correction: 3200K~7200K Beam angle: 37° Electrical Power input, nominal: AC 100-240V 50/60Hz Max. Power consumption: 530W Max current: 3.6A, PF:≧0.62 Power supply unit: wide range electronic SMPS Power input: Self-contained power cord DMX data input/output: Chassis 3-pin Control and programming... -
Page 12: Other Features
Photometric illuminance（LUX） 2200 3660 5620 1440 19° 37° Distance（m） ∅ ∅ 3.3 ∅ 5 ∅ 6.7 19° beam distance ∅ 3.3 ∅ 6.6 ∅ 10 ∅ 13.3 37° beam distance Other features Automatic energy saving: when the shutter or CMY is closed, power consumption will be reduced automatically with ... -
Page 13: Menu Structure
8. Menu structure Level 4 Info Level 1 Level 2 Level 3 Addr AXXX A001 Setting the DMX address Running build-in program as the master or the MSTR/ALON slave Receiving soundsignal as the master or the Play AUDI MSTR/ALON slave Setting the status when no DMX signal AUTO Clos/Hold/Auto/Audi... -
Page 14: Dmx Protocol
9. DMX Protocol DMX mode Default Name DMX value Function percentage Value (10) 3.9% 12.2% Closed 12.5% 24.7% Open 25.1% 49.8% Synchronous strobe from slow to fast Strobe/ 0(0%) Shutter 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open... - Page 15 Mode dimming M3.1200Hz, Dimming curve2, snap 7.1% 9.0% dimming M4.600Hz, Dimming curve1, fade 9.4% 11.4% dimming M5.600Hz, Dimming curve2, snap 11.8% 13.7% dimming 14.1% 100.0% Reserved 0.0% 15.3% No function 15.7% 23.1% Built-in program 1 23.5% 31.0% Built-in program 2 31.4% 38.8% Built-in program 3...
-
Page 16: System Wiring Diagram
10. System wiring diagram... -
Page 17: Maintenance And Troubleshooting
It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting. Notes: Damage resulted from dust, smoke, oil or improper use is not covered by warranty. - Page 18 Problem Possible Cause Suggested Correction with the address in the control system. Choose the channel mode in “Channel setting > Misuse in “Channel setting > Channel Mode Channel Mode” of the fixture as required by the of the fixture. user. Malfunctioning of DMX cannon input/output Troubleshooting the DMX XLR signal plate of connectors.
- Page 19 Problem Possible Cause Suggested Correction can cause the ballast to overheat, so we need solve the problem and replace components as required. Thermostat damaged. Replace. No function the connector between gobo wheel motor and drive, loose, damaged, or Reconnect the gobo wheel motor to the drive, and replace cables as required.
- Page 20 Problem Possible Cause Suggested Correction coating wearing off, damages or deformation. rotating gobo wheel and color wheel. Follow the instructions stated in this user Excessive dusts or smudges on the rotating manual to clean the rotating gobo wheel or color gobo wheel or color wheel.
- Page 21 Guangzhou GTD Culture & Technology Group Co., Ltd. Tel：86-20-61808296 Fax：86-20-61812282 www.gtd‐lighting.com...
