FOS Hydor Profile
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FOS Hydor Profile and is the answer not in the manual?

Questions and answers

Related Manuals for GTD FOS Hydor Profile

Summary of Contents for GTD FOS Hydor Profile

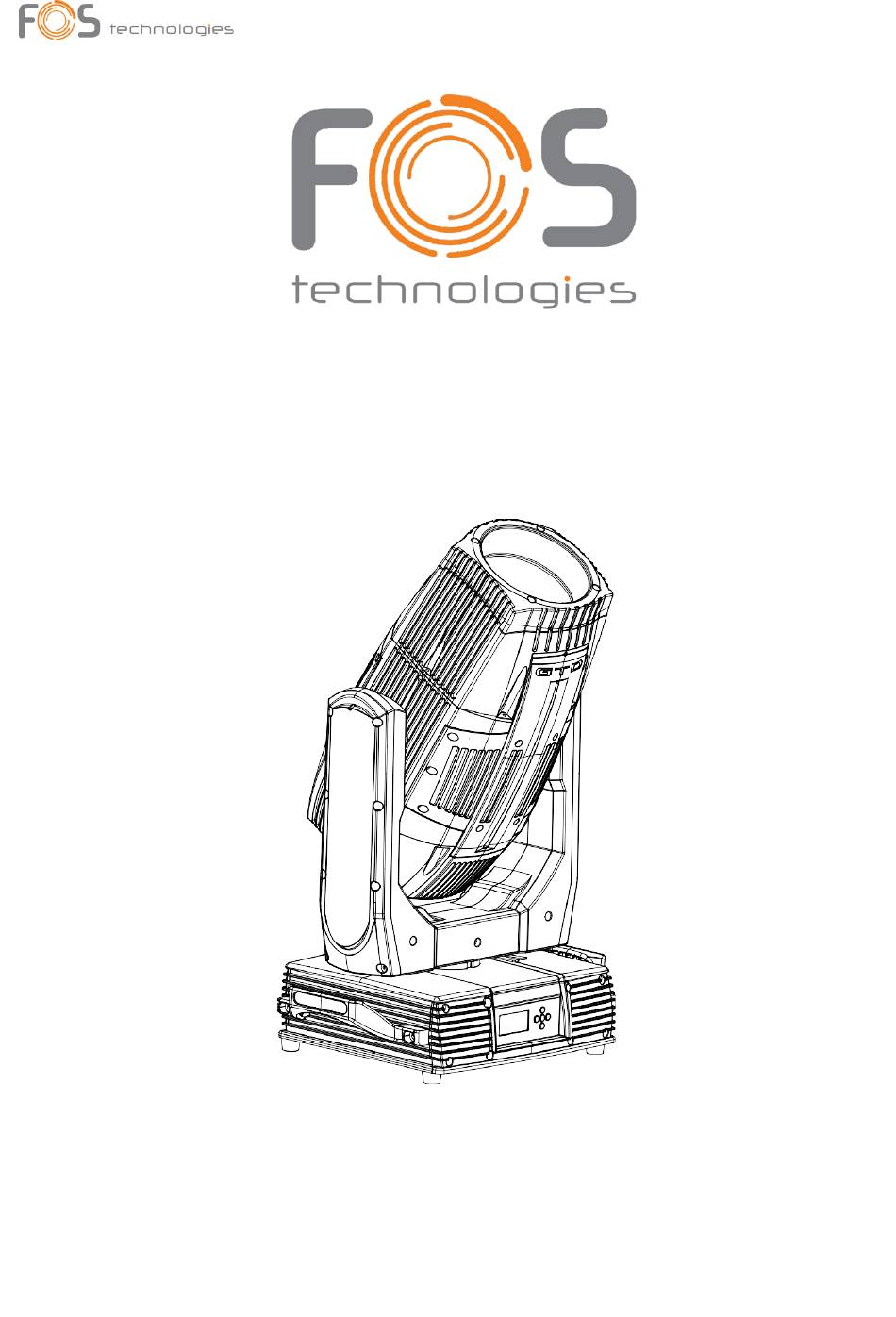

  • Page 1 FOS Hydor Profile User’s Manual...
  • Page 2 FOS TECHNOLOGIES all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. FOS TECHNOLOGIES logo and identifying product names and numbers herein are trademarks of FOS TECHNOLOGIES. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    Table of contents 1. Safety instructions ............................1 2. Product introductions ............................ 3 2.1 Dimensions ..............................3 2.2 Fixture overview ............................4 2.3 Accessories ..............................4 3. Packing and shipping ............................. 5 3.1 Protection lock ............................5 3.2 Unpacking ..............................5 3.3 Packing after use ............................

  • Page 4: Safety Instructions

    1. Safety instructions Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.FOS Technologies-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual.
  • Page 5 General guidelines This product has a protection rating of IP66.  Never open this fixture while in use.  The fixture should be kept clean. DO NOT operate the fixture in extreme heat or dusty environments. Avoid  contact with chemical liquid. Minimum distance to lighted objects must be 16.4feet (5m).

  • Page 6: Dimensions

    2. Production instructions 2.1 Dimension...

  • Page 7: Fixture Overview

    2.2 Fixture overview 2.3 Accessories Item Unit Remark User Manual Clamps 02A+21A 42-52mm Load weight 200KG Φ5*60cm 7*19 pc with hook Material：Steel Safety cable 3-pins signal line Power cord 1.5m 2.5mm...

  • Page 8: Packing And Shipping

    3. Packing and shipping 3.1 Protection lock Pan and tilt locks are equipped to ensure safe transportation. PAN: 4 lock positions are located evenly on the Pan. TILT: 5 lock positions are located on left and right side of the Tilt with the third one in the center. 3.2 Unpacking Notes All products are quality controlled and checked for any faults before they are dispatched to customers.
  • Page 9 Place the other set of packaging foam on top then carefully put it inside the cardboard box.

  • Page 10: Installation

    4. Installation 4.1 Clamps installation The fixture can be placed on the stage or mounted on the truss facing any direction. Attach the clamps to the mounting position on the base of the fixture. Warning：Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise to lock.

  • Page 11: Power/ Control Connection

    5. Power/ Control connection 5.1 Power connection Connection method: L (Live) Brown wire   E (Earth) Yellow / Green bi-color wire N (Neutral) Blue wire   The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is strongly recommended that each fixture are to be connected to the power source separately so that they can be switched on / off individually.

  • Page 12: Control Panel

    6. Control panel 6.1 Panel instruction The control panel features touch-sensitive buttons and OLED digital display for quick and easy setup of  address code and functions menu. Press the left key to enter the menu, press again to exit the menu, press the up and down keys to select the ...

  • Page 13: Technical Specification

    7. Technical specification Optical  Light source: LED 730W Expected average lifetime: 20000 h Color temperature correction: 7000K Total luminous flux: 35000Lm Color rendering index: ≥90Ra Zoom: 5° -45° Spot uniformity：≥80% Focus: multi-point focus, focus from5 meters to infinity tracking s Prism: 1-facet prism，CW/CCW rotation, variable speed Frost: 1-independent frost effect Gobo...
  • Page 14 Weight: 55Kg (121.25lbs.)
  • Page 15 IP rating: IP66 Material: Aluminum, steel, plastic Mounting points: Four quarter-turn locking points + attachment points for safety wire Dynamic effects  Pan/Tilt movement: 540˚/270˚ Strobe: 1-25Hz, synchronized, pulse effects Dimmer: 0-100%, mechanical dimming Thermal  Operating range: 5˚F to 113˚F (-15˚C to +45˚C) Startup range: -13˚F to 113˚F (-25˚C to +45˚C) Storage range: -40˚F to 140˚F (-40˚C to +60˚C) Cooling: Active fan...
  • Page 16 Other features  Enhanced stability of the fixture due to the wide input voltage AC/DC switching power supply which both  reduces the impact of power and voltage fluctuations, and removes the restriction of voltage and frequency variations in different countries. Automatic energy saving: when the shutter or CMY is closed, power consumption will be reduced automatically ...

  • Page 17: Gobos And Colors

    8. Gobos and colors 8.1 Gobo specification All patterns are made onto the metal gobos, and can be customized according to user’s requirement. The customized size is as below: Gobo material Outer dimension Effective dimension Thickness Glass gobo Φ27mm Φ22mm 3.5mm Gobo material: Glass 8.2 Gobos...
  • Page 18 Effect wheel...

  • Page 19: Colors

    8.3 Colors One color wheel: 6 colors + open, split color, CW/CCW rotation, “Rainbow effect” in both directions 1: Epiphany 2: Red 3: Orange 4: Green 5: Yellow 6: Blue 7:Open...
  • Page 20 CMY/CTO Cutting effect...

  • Page 21: Menu Structure

    Menu structure DMX Address Address 001~ XXX Setting the DMX address Setting strobe…… Display the channel value Run Value Display auto program in master King equipment/stand-alone Auto-Program or slave Total Time XXXX H Product total run time Last Time XX:XX Last product run time Last Time Code Password: XXX...
  • Page 22 System Reset System reset Scan Reset Pan and tilt motor reset ColorReset Color motor reset Gobo Reset All gobo motor reset Strobe Reset Strober motor reset Framingblade Rest Framing blade motor rest Other Reset All other motor reset Test Mode Pan……...

  • Page 23: Dmx Protocol

    10. DMX Protocol Standard Basic Extende Name DMX Value DMX percentage Function Mode Mode d Mode 0.0% 12.2% Closed 12.5% 24.7% Open Synchronous strobe from slow to 25.1% 49.8% fast Strobe/Shutter 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open...
  • Page 24 Standard Basic Extended Name DMX Value DMX percentage Function Mode Mode Mode 0.0% 5.9% Open gobo 6.3% 9.0% Gobo 1 9.4% 12.2% Gobo 2 12.5% 15.3% Gobo 3 15.7% 18.4% Gobo 4 18.8% 21.6% Gobo 5 22.0% 24.7% Gobo 6 25.1% 27.8% Gobo 7...
  • Page 25 Standard Basic Extended Name DMX Value DMX percentage Function Mode Mode Mode 0.0% 49.8% Gobo rotation positioning Gobo continuous rotation CW Gobo 50.2% 73.3% from slow to fast rotating/positioning 73.7% 76.5% Stop gobo wheel Gobo continuous rotation CCW 76.9% 100.0% from slow to fast Gobo Gobo rotation/positioning, fine...
  • Page 26 Standard Basic Extended Name DMX Value DMX percentage Function Mode Mode Mode Framing blade 2 Framing blade 2 (right ) ,fine (right ) ,fine 0.0% 100.0% tunning tunning Framing blade 0.0% 100.0% Framing blade rotation rotation Framing blade Framing blade rotation,fine rotation,fine 0.0% 100.0%...
  • Page 27 Standard Basic Extended Name DMX Value DMX percentage Function Mode Mode Mode Tilt 16Bit 0.0% 100.0% Tilt scanning, fine tunning Pan/Tilt speed 0.0% 100.0% fast→ slow 0.0% 11.4% No function 11.8% 15.3% Color wheel dichroic switch Color wheel arbitrary 15.7% 19.2% positioning 19.6%...

  • Page 28: System Wiring Diagram

    11. System wiring diagram F10 II Profile -1 JE1 JE2 Fan1 Fan2 380V Out switch power 380V In Fuse...
  • Page 29 F10 II Profile -2 Iris Prism.ROT SMS8004D-1 Focus Prism SMS8004D-2 J9 M6 SMS8004D-1 Zoom Prism.ROT ISP1 SMS8004D-2 Prism Frost J11 M4 SCR8012B 5U Focus2 J12 M3 Zoom J15 M2 Focus1 J16 M1 Flame Power SMS8004D-1 SCR8015B 4U Color SMS8004D JE1 J2 GOBO Fixed Fixed SCB8005A...
  • Page 30 Fan1 LCR8 LED1 LED2 Fan1 Fan2 48V+ 48V+ J10 J8...

  • Page 31: Maintenance And Troubleshooting

    12. Maintenance and Troubleshooting 12.1 Cleaning and maintenance It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of FOS TECHNOLOGIES Lighting.

  • Page 32: Troubleshooting

    12.2 Troubleshooting Problem Possible Cause Suggested Correction Power switch not turned on. Turn on power switch. Locate the blown fuse. Remove the broken fuse. Insert a Take out the fuse and check if it is blown. replacement fuse of the correct amperage. No response after connected to A/C Abnormal A/C input (A/C power socket, power...

  • Page 33: Spare Parts List

    Problem Possible Cause Suggested Correction Problem Possible Cause Suggested Correction Test the lamp in an adjacent fixture which is known to be Normal end of lamp life. operating properly and then replace as necessary. The midline of the lamp is not aligned with Reinstall the lamp.
  • Page 34 Guangzhou FOS TECHNOLOGIES Culture & Technology Group Co., Ltd. Tel：86-20-61808288 Fax：86-20-61812282 http://www.FOS Technologies-china.com...
