GTD -F4019 II PIXIE User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GTD-F4019 II PIXIE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTD-F4019 II PIXIE and is the answer not in the manual?

Questions and answers

Related Manuals for GTD GTD-F4019 II PIXIE

Summary of Contents for GTD GTD-F4019 II PIXIE

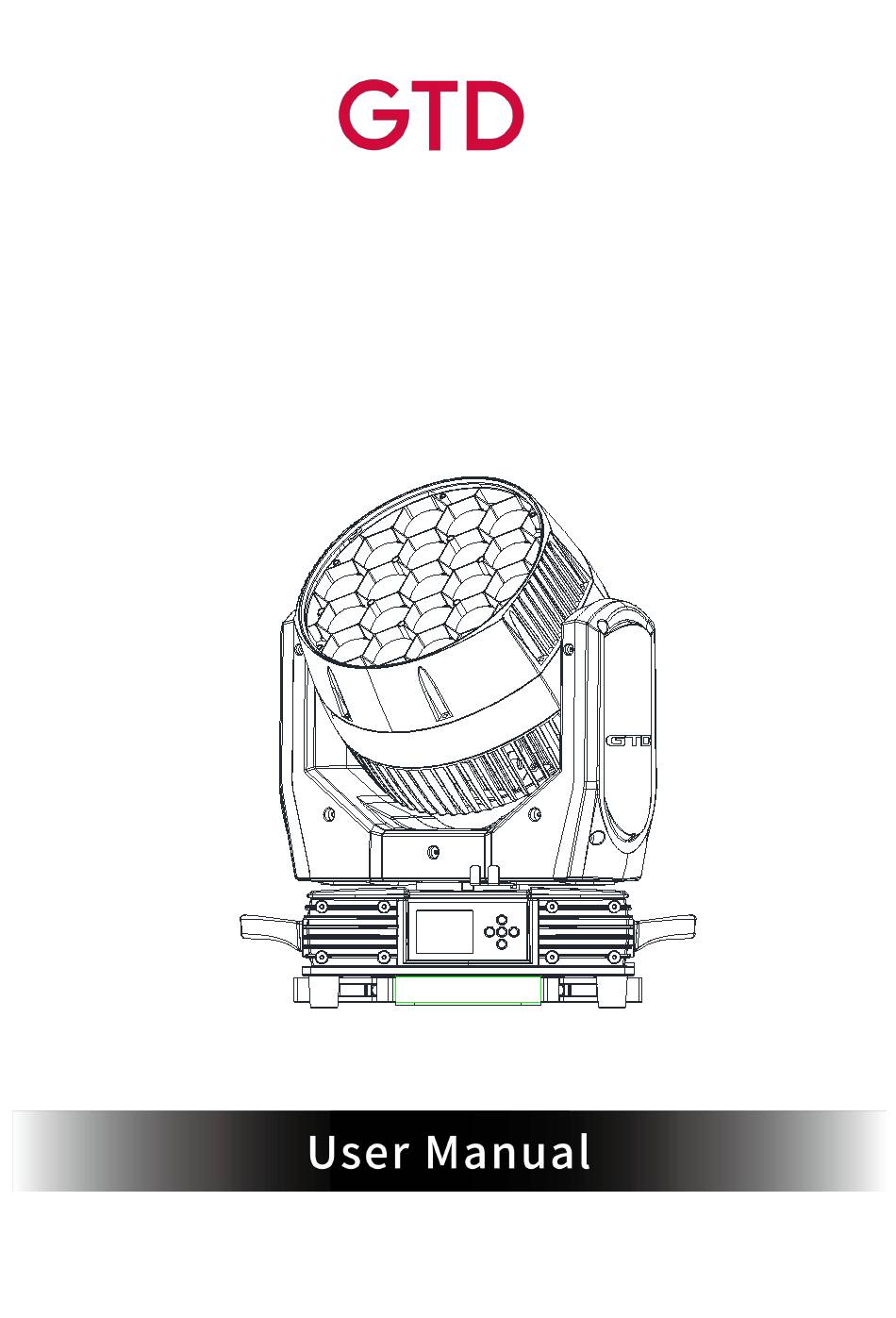

  • Page 1 GTD-F4019 II PIXIE...
  • Page 2 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    Contents 1. Safety instructions ..................................1 2. Product introductions................................3 2.1 Dimensions ..................................3 2.2 Fixture overview ................................4 2.3 Accessories ..................................4 3. Packing and shipping ................................5 3.1 Protection lock ................................... 5 3.2 Unpacking ..................................5 3.3 Packing after use ................................5 4.

  • Page 4: Safety Instructions

    Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual.

  • Page 5: General Guidelines

    To ensure operational safety, broken or damaged cables and light source can only be fixed or replaced by certified  technicians, certified local distributors or the manufacturer. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured  parts.

  • Page 6: Product Introductions

    2. Production instructions 2.1 Dimensions 235(9.02") 418(16.46") 473(18.62") 230°...

  • Page 7: Fixture Overview

    2.2 Fixture overview Front cover module 灯体前盖组件 Focus lens module 调焦镜头组件 Focus motor module 调焦电机组件 Light module 光源板组件 散热器组件 Radiator module 灯体后盖 Back cover module 水平垂直组件 Pan-tilt module Base module 底箱组件 2.3 Accessories Item Unit Remark User Manual Safety cable Φ4*60cm 7*19 pc with hook Material：Steel Power line 1.5m*2.5mm²...

  • Page 8: Packing And Shipping

    3. Packing and shipping 3.1 Protection lock Pan locks are equipped to ensure safe transportation. 3.2 Unpacking Notes All products are quality controlled before they dispatched to customers. If the fixture is damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim. Photographic evidence of the damage must be provided.

  • Page 9: Installation

    accessories carefully. Close the cover lid. The wrap page are not allowed over 3 layers. Do not upside down. Cardboard box: Wrap the fixture in plastic bags. Put it in the packaging foam along with all the accessories. Place the other set of packaging foam on top then put it carefully in the cardboard box.

  • Page 10: Power/ Control Connection

    5. Power/ Control connection 5.1 Power connection Connection method:  L (Live) Brown wire  E (Earth) Yellow / Green bi-color wire  N (Neutral) Blue wire  The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is strongly recommended that each fixture are to be connected to the power source separately so that they can be switched on / off individually.

  • Page 11: Control Panel

    6. Control panel 6.1 Panel instruction GTD-F4019 II PIXIE  Press Left-click to select the function menu, press it again exit.  Press Up or Down to change the value of the selected function (increase or decrease).  Press Up/Down- click selected menu function, and then confirm with right click.

  • Page 12: Technical Specification

    7. Technical specification Optical  Light source: LED 40W RGBW 19pcs Expected average lifetime: 20000 h Color temperature correction: 3200K~7200K Zoom range：9°-55°(10%)/6°-33°（50%）Linear high speed zoom Color: R/G/B/W, color conversion and perfect mix-color effect Ra≥70 Electrical  Power input, nominal: 100-240V~ 50/60Hz Max.

  • Page 13: Other Features

    Safety: EN 60598-2-17:1989/A2:1991, GB 7000.1-2015, GB 7000.217-2008 Photometric  Other features  Sleep mode: uses the most advanced technology to activate sleep mode remotely. When the fixture is disconnected  from signal, the sleep mode is enabled automatically to make it more stable and safer. Sleep time can be customized. Communications Design ：...

  • Page 14: Menu Structure

    8. Menu structure Level 4 Info Level 1 Level 2 Level 3 Address Address: 001~ XXX Setting the DMX address setting Setting Pan ……，All，Off Display the channel value Value Display Master /Slave Run auto program in master or slave Auto-Program Time Info This Time XXXXXX Hour...
  • Page 15 Wireless transfer DMX data to Wireless Reset another Wireless reset Restore Default Restore to default value Yes/No Product Select Product Name Select GTD xxx xxx xxx - Password- Motor System Reset System reset Reset Scan Reset Pan and tilt motor reset Others Reset...

  • Page 16: Dmx Protocol

    Scene Edit Scene Edit:001-250 Edit the channel DMX Pan,……Pan=xxx Scene Time=xxx Edit the scene time Input By Console Get scene DMX form console Record Scene Scene XX->XX Record scene form console *Settings highlighted in light grey are default values 9. DMX Protocol Standard Default mode...
  • Page 17 White 1 0.0% 100.0% No light  Full light 0(0%) ..Red 19 0.0% 100.0% No light  Full light 0(0%) Green 19 0.0% 100.0% No light  Full light 0(0%) Blue 19 0.0% 100.0% No light  Full light 0(0%) White 19 0.0%...
  • Page 18 49.4% 52.9% Static Pattern12 53.3% 56.9% Static Pattern13 57.3% 60.8% Static Pattern14 61.2% 64.7% Static Pattern15 65.1% 68.6% Static Pattern16 69.0% 72.5% Static Pattern17 72.9% 76.5% Static Pattern18 76.9% 80.4% Static Pattern19 80.8% 84.3% Static Pattern20 84.7% 88.2% Static Pattern21 88.6% 92.2% Static Pattern22...
  • Page 19 Dynamic Pattern 0.0% 100.0% Slow  Fast Speed Dynamic BackGround 0.0% 100.0% No light  Full light 0(0%) Dynamic BackGround 0.0% 100.0% No light  Full light 0(0%) Green Dynamic BackGround 0.0% 100.0% No light  Full light 0(0%) Blue Dynamic BackGround 0.0%...
  • Page 20 Basic Default mode Name DMX value DMX percentage Function Basic Value (20ch) 0.0% 100.0% 0(0%) Tilt 0.0% 100.0% Tilt (18.0%) Scan speed 0.0% 100.0% Scan speed from fast to slow 0(0%) 0.0% 12.2% Closed 12.5% 24.7% Open 25.1% 49.8% Synchronous strobe from slow to fast Strobe/ 0(0%) Shutter...
  • Page 21 Zoom 0.0% 100.0% Near  Far 0(0%) 0.0% 5.9% No function 6.3% 9.8% Static Pattern1 10.2% 13.7% Static Pattern2 14.1% 17.6% Static Pattern3 18.0% 21.6% Static Pattern4 22.0% 25.5% Static Pattern5 25.9% 29.4% Static Pattern6 29.8% 33.3% Static Pattern7 33.7% 37.3% Static Pattern8 37.6%...
  • Page 22 29.8% 35.3% Dynamic Pattern5 35.7% 41.2% Dynamic Pattern6 41.6% 47.1% Dynamic Pattern7 47.5% 52.9% Dynamic Pattern8 53.3% 58.8% Dynamic Pattern9 59.2% 64.7% Dynamic Pattern10 65.1% 70.6% Dynamic Pattern11 71.0% 76.5% Dynamic Pattern12 76.9% 82.4% Dynamic Pattern13 82.7% 88.2% Dynamic Pattern14 88.6% 94.1% Dynamic Pattern15...
  • Page 23 43.1% 46.7% Built-in program 2 47.1% 50.6% Built-in program 3 51.0% 54.5% Built-in program 4 54.9% 58.4% Built-in program 5 58.8% 62.4% Built-in program 6 62.7% 66.3% Built-in program 7 66.7% 70.2% Built-in program 8 70.6% 74.1% Built-in program 9 74.5% 78.0% Built-in program 10...
  • Page 24 Intensity 65535 0.0% 100.0% Intensity fade, fine (LSB) 0(0%) Red 1 65535 0.0% 100.0% Intensity fade, fine (LSB) 0(0%) Green 1 65535 0.0% 100.0% Intensity fade, fine (LSB) 0(0%) Blue 1 65535 0.0% 100.0% Intensity fade, fine (LSB) 0(0%) White 1 65535 0.0% 100.0%...
  • Page 25 Zoom 65535 0.0% 100.0% Zoom, fine (LSB) 0(0%) 0.0% 5.9% No function 6.3% 9.8% Static Pattern1 10.2% 13.7% Static Pattern2 14.1% 17.6% Static Pattern3 18.0% 21.6% Static Pattern4 22.0% 25.5% Static Pattern5 25.9% 29.4% Static Pattern6 29.8% 33.3% Static Pattern7 33.7% 37.3% Static Pattern8...
  • Page 26 23.9% 29.4% Dynamic Pattern4 29.8% 35.3% Dynamic Pattern5 35.7% 41.2% Dynamic Pattern6 41.6% 47.1% Dynamic Pattern7 47.5% 52.9% Dynamic Pattern8 53.3% 58.8% Dynamic Pattern9 59.2% 64.7% Dynamic Pattern10 65.1% 70.6% Dynamic Pattern11 71.0% 76.5% Dynamic Pattern12 76.9% 82.4% Dynamic Pattern13 82.7% 88.2% Dynamic Pattern14...
  • Page 27 39.2% 42.7% Built-in program 1 43.1% 46.7% Built-in program 2 47.1% 50.6% Built-in program 3 51.0% 54.5% Built-in program 4 54.9% 58.4% Built-in program 5 58.8% 62.4% Built-in program 6 62.7% 66.3% Built-in program 7 66.7% 70.2% Built-in program 8 70.6% 74.1% Built-in program 9...

  • Page 28: System Wiring Diagram

    10. System wiring diagram...

  • Page 29: Maintenance And Troubleshooting

    It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting. Notes: Damage resulted from dust, smoke, oil or improper use is not covered by warranty.
  • Page 30 Problem Possible Cause Suggested Correction with the address in the control system. Choose the channel mode in “Channel setting > Misuse in “Channel setting > Channel Mode Channel Mode” of the fixture as required by the of the fixture. user Malfunctioning of DMX cannon input/output Troubleshooting the DMX XLR signal plate of connectors.
  • Page 31 Problem Possible Cause Suggested Correction cooled sufficiently. Burned-out or failing lamps, or high temperatures in or around the fixture, can cause the ballast to overheat, so we need solve the problem and replace components as required Thermostat damaged. Replace. No function the connector between gobo wheel motor and drive, loose, damaged, or Reconnect the gobo wheel motor to the drive, and replace cables as required.
  • Page 32 Problem Possible Cause Suggested Correction wheel. Rotating gobo wheel, color wheel with Replace the worn-off, damaged or deformed coating wearing off, damages or deformation rotating gobo wheel and color wheel Follow the instructions stated in this user Excessive dusts or smudges on the rotating manual to clean the rotating gobo wheel or color gobo wheel or color wheel wheel.
