Wilo CO MVI Installation And Operating Instructions Manual page 6

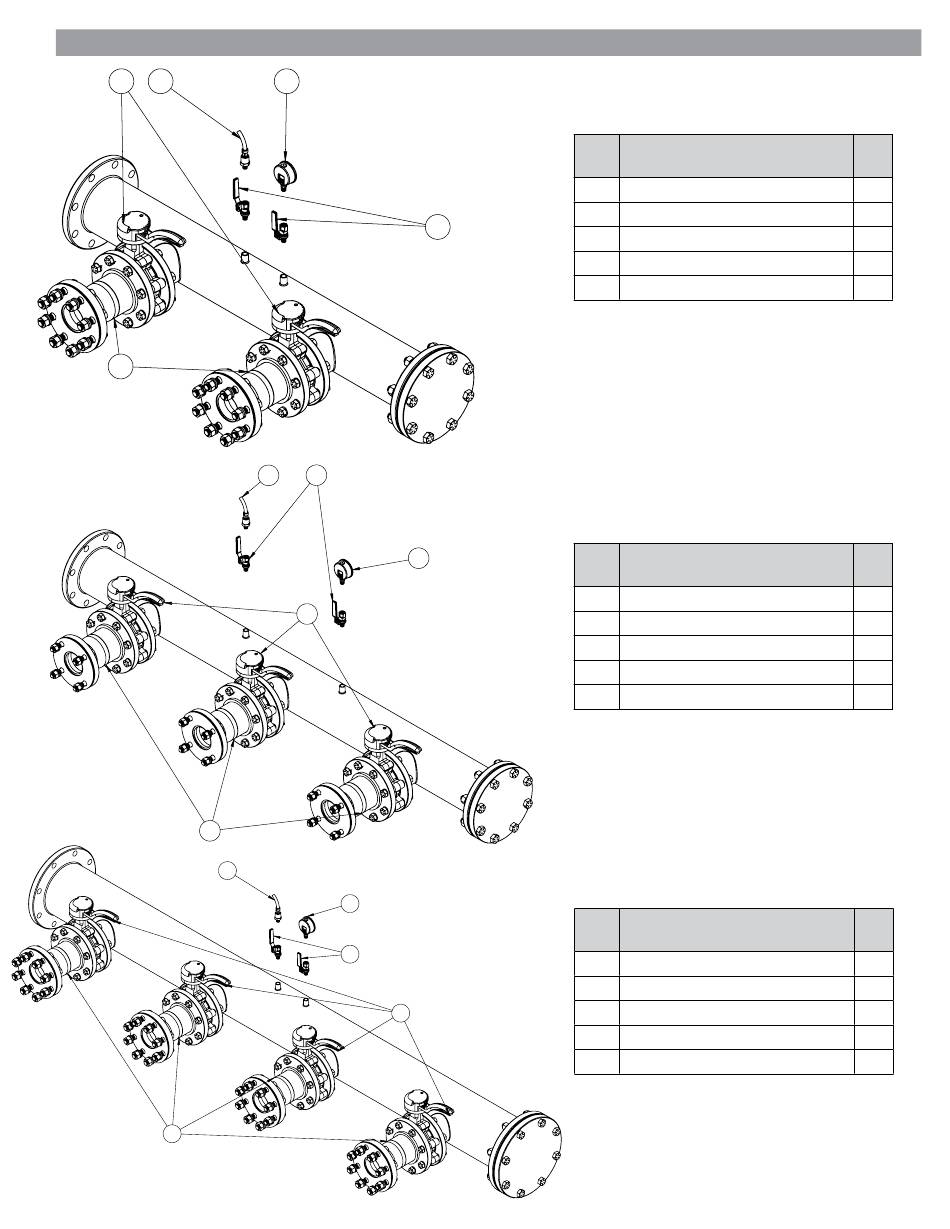

Fig. 5d - Suction Assembly
1 2
5
5
2
5
Wilo-CO MVI - Installation and Operation Manual
3
4
2 4
3
1
3
4
1
Duplex
Item
Description
No.
1 Isolation butterfly valves
2 Pressure transducer
3 Pressure gauge
4 1/4" NPT shutoff ball valves
5 ANSI butt-weld 304SS spools
Triplex
Item
Description
No.
1 Isolation butterfly valves
2 Pressure transducer
3 Pressure gauge
4 1/4" NPT shutoff ball valves
5 ANSI butt-weld 304SS spools
Quadplex
Item
Description
No.
1 Isolation butterfly valves
2 Pressure transducer
3 Pressure gauge
4 1/4" NPT shutoff ball valves
5 ANSI butt-weld 304SS spools
Qty
2
1
1
2
2
Qty
3
1
1
2
3
Qty
4
1
1
2
4
6
