JADEMAR LIGHTING JVTR-SOL Series Manual

WARNING
BEFORE YOU BEGIN READ THESE INSTRUCTIONS COMPLETELY AND CAREFULLY.
NOTE:
• Please read this entire manual to fully understand and safely
use this product.
• Specifica ons are subject to change without notice.
• Please visit our website the most recent user guide versions.
READ ALL INSTRUCTIONS BEFORE INSTALLATION
• Consult a qualified electrician to ensure correct branch circuit conductor.
• The product should be installed and operated by a qualified electrician or technician in accordance with relevant local codes.
• Risk of electric shock. Ensure that main power source is off when wiring or soldering the sec ons of the product.
• Before installing this fixture or doing any maintenance, make sure to turn off the power supply at the circuit breaker or fuse box.
• Check to make sure that all fixture connec ons have been properly made and the fixture is grounded to avoid poten al electrical shocks.
• Designed for use in AC110-277V/110-347V,50/60Hz, protected circuit.

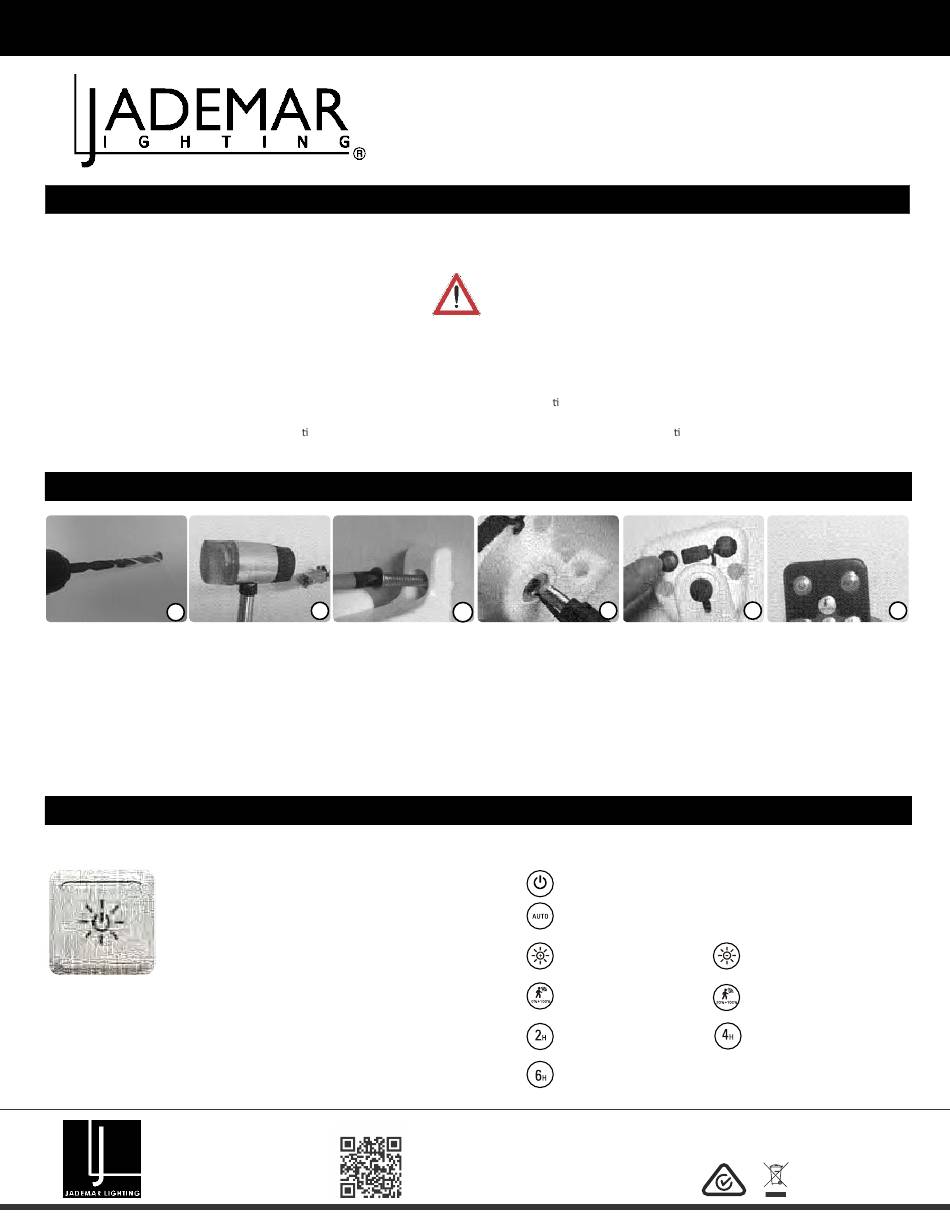

INSTALLATION INSTRUCTIONS
1
Drill the hole for screws Insert the screw cap into
Screw diameter is 4mm wall and make it flat as
REMARK:
1. When installation is complete, the product will start its work in automatic mode as default setting.
2. There is manual mode optional which supports light to work at day time. Under manual mode, light will turn off after 12 hours if not turn off by hand.
3. When the red light flashes once when you turn product on, it means that battery is low, please charge the product.
WALL SWITCH AND REMOTE CONTROL
WALL SWITCH
Wall Switch can be used for setting the power
(4 working programs are looped):
1st push: 100% Power;
2nd push: 50% Power;
3nd push: 30% when nobody`s there and goes
to 100% Power when sensor is triggered;
4th push: Power Off.
Miami, FL USA - info@jademar.com
T: 305.640.0465 - F: 305.640.0468
WWW.JADEMAR.COM
JVTR-SOL SERIES
SOLAR POWERED
ROTATING LED BATTEN LIGHT KIT
IMPORTANT SAFETY INFORMATION
2
Use screw driver to fix
the screws into the
surface wall/ceiling
UNPACKING
• Unpack and carefully examine the product.
• Report any damage and save all packing materials if any part(s) were
damaged during shipping.
• Do not attempt to use this apparatus if it is damaged.
3 4
Press button to turn On:
Connect light and
1st push: 100% Power;
solar panel by the
2nd push: 50% Power;
DC solar cable
3rd push: 30% + 100%
when sensor is triggered;
4th push: Power Off
REMOTE CONTROL BUTTONS
MANUAL switch ON/OFF, 100% full power
AUTOMATIC ON/OFF up dawn & dark, 100% full power
Increase the brightness by 20%
Light is 0% (Power Off),
turns On when sensor is
triggered.
Set light to work for 2 hours
Set light to work for 6 hours
5 6
Select AUTO or
MANUAL mode to set
the lighting program as
you like
Decrease the brightness by 20%
Light is On with 30% Power,
changes to 100% when sensor
is triggered.
Set light to work for 4 hours
Revised 11/2022
Page 1 of 2
