WARNING
BEFORE YOU BEGIN READ THESE INSTRUCTIONS COMPLETELY AND CAREFULLY.
CAUTION:
Risk of fire or electric shock. Check for damage to luminaire, electrical, and structural parts before installa on.
This luminaire is intended for installa on by qualified electrician only.
Disconnect electrical power to circuit before installa on or maintenance.

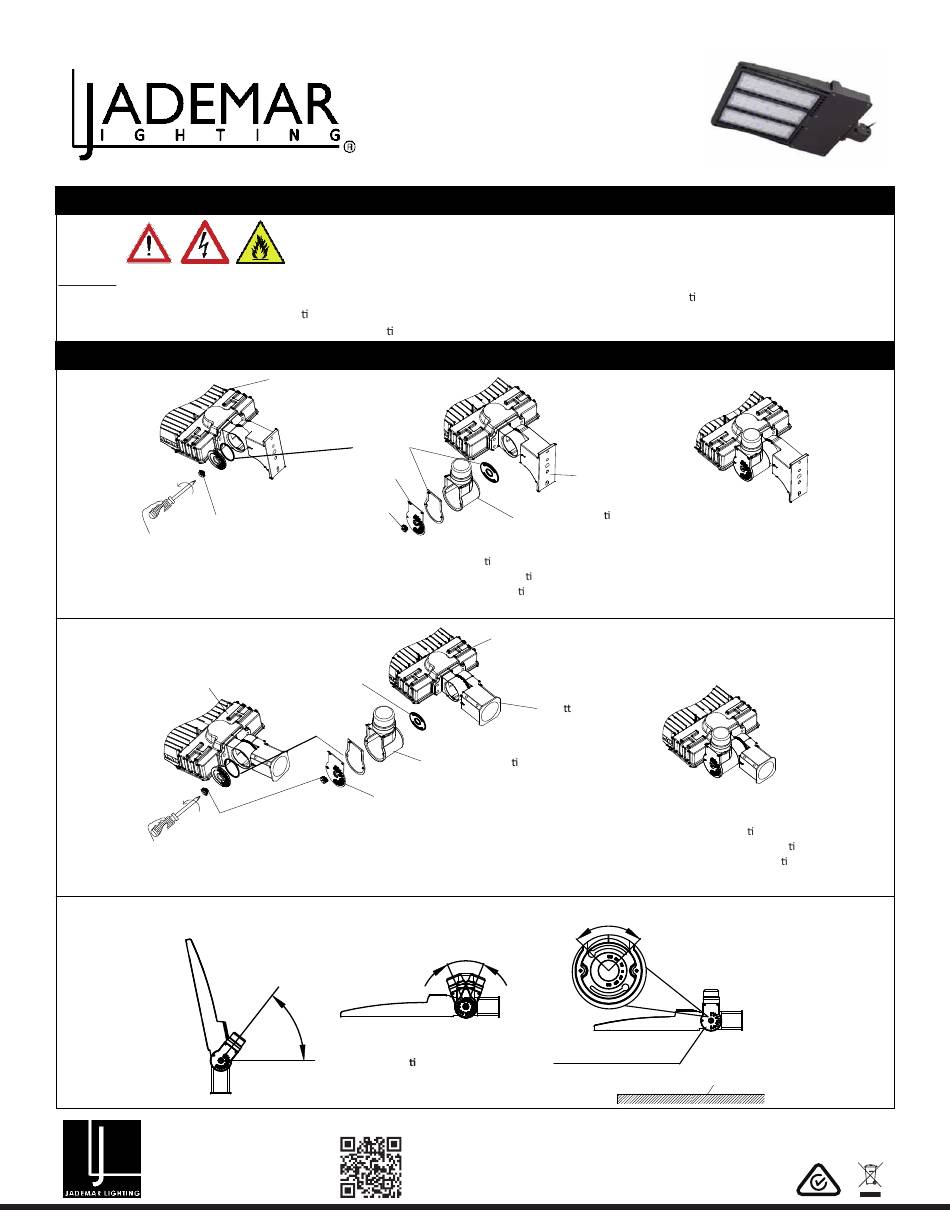

1.0 INSTALLATION INSTRUCTIONS - OPTICAL CONTROL ACCESSORIES
1/2 blocking
Step 1: Remove the round cap
on the luminaire and unscrew
the 1/2 screw.
Lamps and lanterns
1/2 blocking
Step 1: Remove the round cap
on the luminaire and unscrew
the 1/2 screw.
Miami, FL USA - info@jademar.com
T: 305.640.0465 - F: 305.640.0468
WWW.JADEMAR.COM
JD-SB SERIES
INSTALLATION INSTRUCTIONS
WARNING: Risk of electric shock and serious injury. SHUT OFF BREAKER AT PANEL BEFORE INSTALLING.
lanterns
Silicone
Cover plate
1/2 blocking
Step 3: Remove the components
of the light control junc on box
and install the light control junc on
box on the lamp (ARM installa on
mode).
Silicone
Silicone
Light control junc on box
Cover plate
Step 2: The lamp control terminal box
is assembled according to the
disassembly chart and is correctly
connected with the AC power supply
line. (as shown)
45°
45°
The light source controls the
ver cle ground or inclines 25°
to the ground
Revised 03/2024
Page 1 of 8
Arm
Silicone
Light control junc on box
Step 2: The lamp control terminal box
is assembled according to the
disassembly chart and is correctly
connected with the AC power supply
line. (as shown)
Lamps and lanterns
Slipfi er
Step 3: Remove the components
of the light control junc on box
and install the light control junc on
box on the lamp (ARM installa on
mode).
90°
ground
