Vogue FU580 Assembly Instructions

Packed parts
Part description Qty.
A Top panel 1
B Back panel 1
C Bottom 1
panel
D Left panel 1
E Right panel 1
F Outer door 1
G Inner door 1
1
Model shown: FU580
K
A
Mount 3 connecting rods into the top panel for
FU580 (4 rods for FU581, 5 rods for FU582/
FU583)
FU580 to FU583_ML_A5_v1_20240201.indd 1 FU580 to FU583_ML_A5_v1_20240201.indd 1

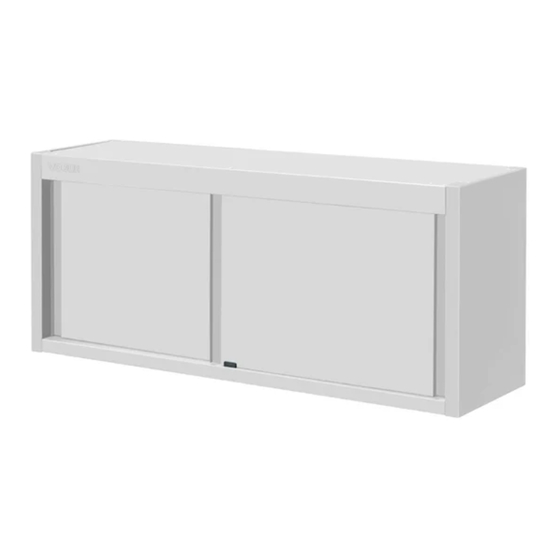

Stainless Steel Wall Cupboard:
FU580/FU581/FU582/FU583:
Assembly Instructions
Part description Qty.
H Middle 1
shelf
I Support 4
for middle
shelf
J Screw for 8
top/bottom
panel
FU580 x 10
FU581 x 12
Connecting
K
rod
FU582 x 14
FU583 x 14
L Wall 1
mounting
plate
Assembly
tool
2
Model shown: FU580
K
C
Mount 3 connecting rods into the bottom panel
for FU580 (4 rods for FU581, 5 rods for FU582/
FU583)
Manual size: A4 folded into A5
3
K
D
Mount 2 connecting rods into the left panel
5
C
B
Connect the bottom panel with the back panel
7
D
C
Mount the left panel and right panel
4
K
E
Mount 2 connecting rods into the right panel
6
A
C
B
Connect the top panel with the back panel
A
B E
