Vogue FU584 Assembly Instructions

Packed parts
Part description Qty.
A Top panel 1
B Back panel 1
C Bottom 1
panel
D Left panel 1
E Right panel 1
F Left foot 1
board
G Right foot 1
board
1
N
A
Mount 9 connecting rods into the top panel
FU584 to FU587_ML_A5_v1_20240226.indd 1 FU584 to FU587_ML_A5_v1_20240226.indd 1

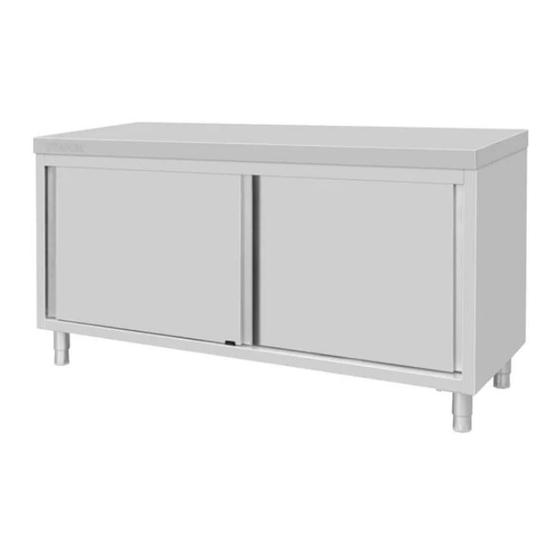

Stainless Steel Floor Cupboard:
FU584/FU585/FU586/FU587:
Assembly Instructions
Part description Qty.
H Outer door 1
I Inner door 1
J Middle shelf 1
Support for
K 4
middle shelf
Screw for
L 4
bottom shelf
Screw for foot
M 16
board
N Connecting 16
rod
Assembly tool
2
N
C
Mount 3 connecting rods into the bottom panel
Manual size: A4 folded into A5
3
N
D
Mount 2 connecting rods into the left panel
5
B
C
Connect the bottom panel with the back panel
7
C
Secure the bottom shelf with screws
4
N
E
Mount 2 connecting rods into the right panel
6
D
E
Connect the left panel and right panel
