Read & Follow All Safety Instructions
When using electrical equipment, basic safety precautions should always be followed including:
1.
Disconnect power before performing work on electrical equipment (using the light switch to turn off the power is not sufficient to prevent electrical shock)
2.
Do not mount near gas or electric heaters
3.
Do not install in unstable, loose or breakable surfaces and Do not let objects impact or exert force on the suface of the fixture
4.
Use caution when servicing batteries (Battery acid can cause burns to skin and eyes; If acid is spilled on skin or eyes, flush with water and contact a physician
immediately)
5.
Equipment should be mounted in locations and at heights where it will not be subjected to tampering by unauthorized personnel
6.
The use of accessory equipment not recommended by Beghelli Inc may cause an unsafe condition and will void the unit's warranty
7.
Do not use this equipment for other than its intended purpose
8.
Installation and servicing of this equipment should be performed by a qualified electrician familiar with the product and the hazards involved
9.
Allow battery to charge for 24 hours before first use (EM VERSION)
10.
To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects
WARNING
1.
Verify correct supply voltage by comparing it with the luminaire label
information
2.
All wiring connections should be capped with UL approved wire connectors
3.
Use minimum 90°C Supply Wires
•
0-10V DIMMING WIRES MUST BE RUN FROM A DIFFERENT CONDUIT OUT OF THE J-BOX
HT VERSION
0-10V LEAD / DALI
VIOLET......(DIM +)
GRAY........(DIM -)
INSTALLATION INSTRUCTION
IMPORTANT SAFEGUARDS
SAVE THESE INSTRUCTIONS
MOUNTING BRACKET
18/5 POWER CORD; 72" L
MOUNTING HARDWARE (RECOMMENDED 3/8 X 2-1/4"L)
(BY OTHERS)
AC LEADS
BLACK...... (HOT)
WHITE........(NEUTRAL)
GREEN...... (GROUND)
BEGHELLI USA., 3810 Executive Way, Miramar, Florida 33025, USA. Tel: (954) 442-6600
CAUTION
1.
Avoid direct eye exposure to the light source while it is on
2.
Beware- small parts and packing material may be hazardous to children
3.
Risk of burn; Disconnect power and allow fixture to cool before handling
fixture
EM VERSION
0-10V LEAD / DALI
VIOLET......(DIM +)
GRAY........(DIM -)
Page 1 of 4

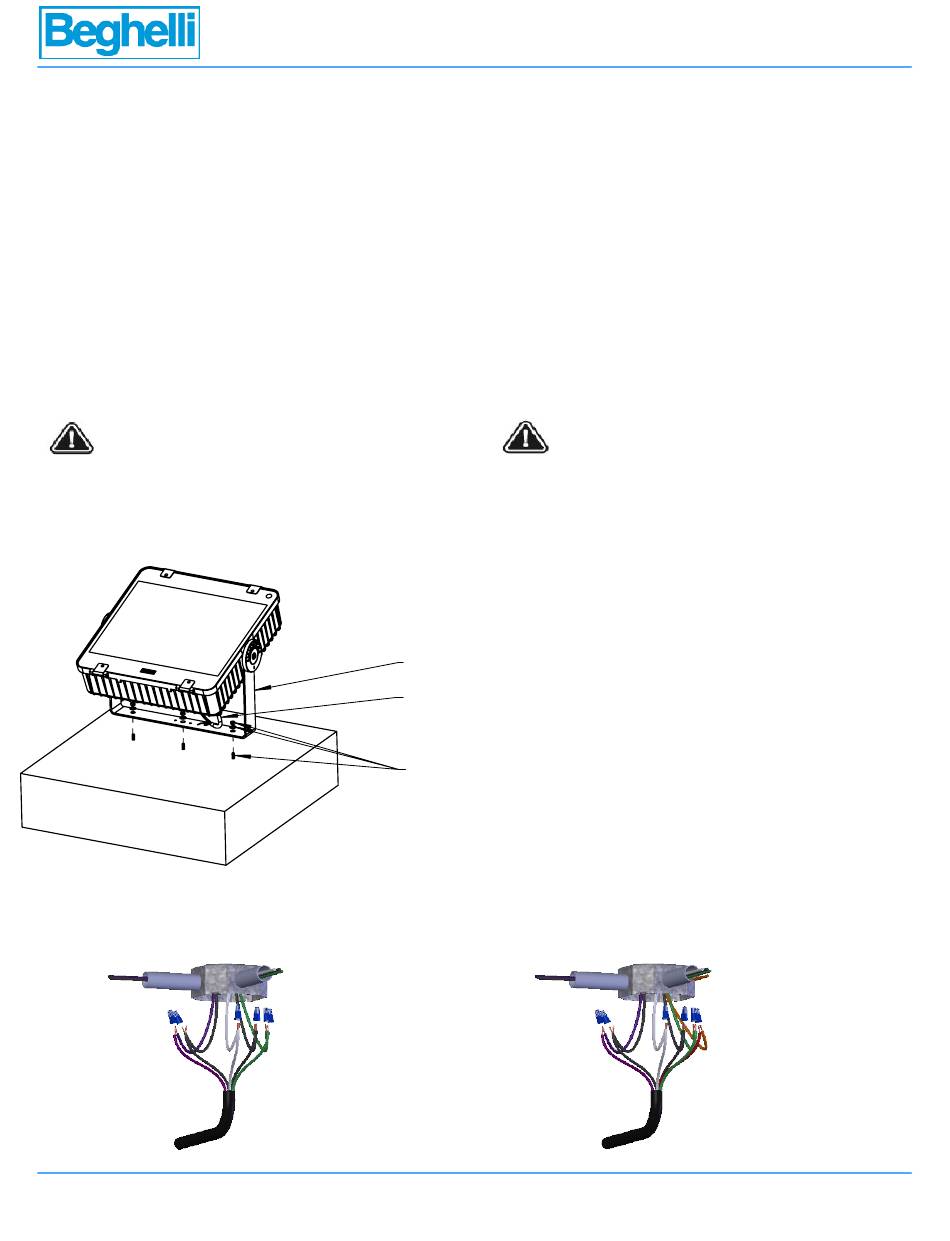

BOXLED BL736
AC LEADS
BLACK...... (SWITCHED)
WHITE........(NEUTRAL)
GREEN...... (GROUND)
RED/ORANGE (UNSWITCHED)
