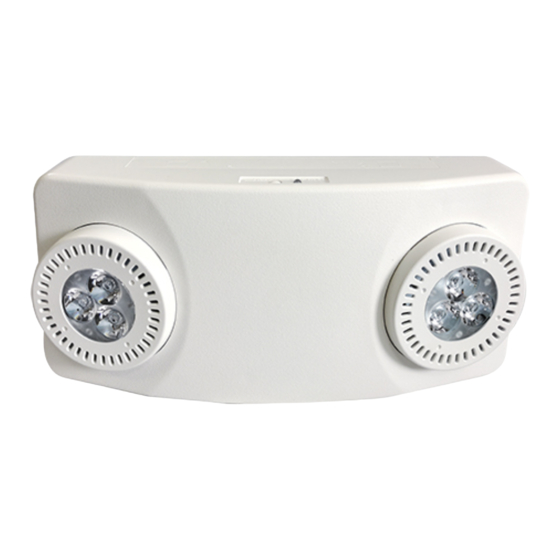

Beghelli BBX-SE Instruction Manual

1. Install the BBX/ BBX-HO according to the installation instructions.
2. When AC power is supplied to fixture, the unit will automatically initiate a self-test with self-
diagnostics that will do the following:
(1) Monitor for faults with battery, charger board, lamps and transfer circuit every 5 seconds.
(2) Perform a three-minute self-test every month.
(3) Perform a 90-minute self-test every 12 months starting in the 12th month after installation.
Note: ALL functions are factory pre-set (does not need field adjustment).
3. Dual color LED lamp indicator shows the following status:
(1) Green color: ON/ Ready
Blinking: Testing
(2) Red color: Service Alert
Blinking: Sequence below determines service required
TO RESET:
After resolving the fault of emergency equipment, press test button for 2 seconds without releasing
to reset. LED indicator will show green.
3. For manual test, press test button as follows:
Press test button once
Press test button twice
Press test button 3 times (within 2 seconds)
Press test button 4 times (within 2 seconds)
One blink ON/pause (4 seconds) Battery is not connected
Two blinks ON/pause (4 seconds) Battery is shorted or battery voltage drops below acceptable level
Three blinks ON/pause (4 seconds) Charger board circuit fault
Four blinks ON/pause (4 seconds) Transfer circuit fault
Five blinks ON/pause (4 seconds) Emergency lamp fault
Six blinks ON/pause (4 seconds) Remote head's emergency lamp fault (if installed)
(within 2 seconds) 30 seconds test
(within 2 seconds) 3 minutes test
30 minutes test
90 minutes test
Beghelli U.S.A., 3810 Executive Way, Miramar, Florida, Tel: (954) 442-6600
Page 1 of 2
BBX-SE
BBX-SE-HO
9/16/22
