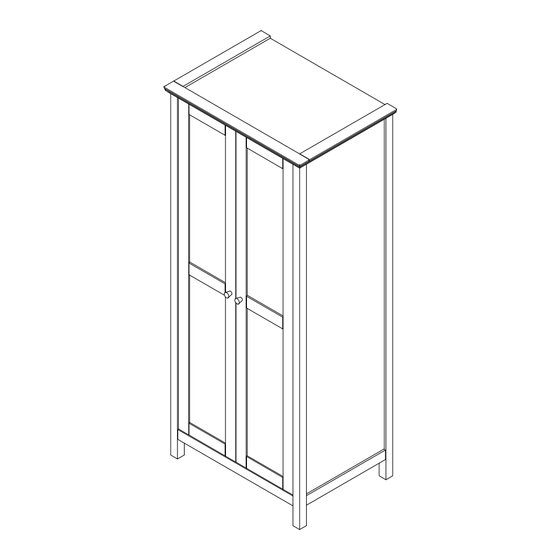

- Page 1 WILTON 2 DOOR NARROW WARDROBE INSTRUCTIONS MANUAL H188 W80 D57cm...
- Page 2 Introduction Thank you for purchasing the Wilton 2 Door Narrow Wardrobe. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. Tools required Tools required Time to assemble 1 hour People to assemble Important safety Warning: In order to prevent overturning, this product must be used with the Information wall attachment device provided.
- Page 3 Ensure that the wall strap is used to securely attach the wardrobe to the wall to prevent tipping. Any additional or replacement parts must only be obtained from John Lewis & Partners. Do's Check the pack and make sure you have all the parts listed.
- Page 4 Parts list Dimensions Descriptions Top Panel H3 W80 D57cm Side Panel Right H4 W185 D55cm Side Panel Left H4 W185 D55cm Door Panel H2 W169 D337cm Back Ply Support H2 W68 D4cm Back Ply H0.3 W69 D43cm Bottom Panel H2 W68 D51cm Bottom Front Hrail H4 W68 D5cm Bottom Back Hrail...
- Page 5 Fixtures and fittings supplied Dimensions Descriptions (not actual size) Cam heals Ø1.5 x 1.2cm Cam rods M5 x 3.4cm Wooden dowels Ø0.8 x 3cm M3.5 x 1.6cm Screw M3.5 x 1.6cm Screw pan head Screw handle M4 x 3cm Flat washer M6 x 0.1cm Ø2.5 x 2.6cm Handle...
- Page 6 Product assembly C x 2 Side Panel Right B x 8 C x 2 B x 8 Side Panel Left...
- Page 7 Product assembly D x 12 J x 6 Door Panel Door Panel I x 2 B x 6 Top Panel...
- Page 8 Product assembly Bottom Panel C x 8 Fixed Shelf C x 8 Bottom Back Hrail Bottom Front Hrail...
- Page 9 Product assembly Back Ply Support A x 1 Bottom Front Hrail A x 3 Side Panel Left Bottom Back Hrail Fixed Shelf Side Panel Left A x 4 Bottom Panel...
- Page 10 Product assembly Side Panel Right A x 1 A x 3 A x 4 Fixed Shelf Bottom Panel...
- Page 11 Product assembly Side Panel Left Side Panel Right Back Ply Let the back plys slide downward for a while. Top Panel Side Panel Right A x 6 Side Panel Left...
- Page 12 Product assembly E x 6 K x 1 M x 1 K x 1 D x 12 Door Panel Door Panel...
- Page 13 Product assembly...
- Page 14 Product assembly Door Panel Door Panel F x 2 H x 2 L x 2 G x 2 E x 2 E x 21 Push the back plys upwards until it enter in the groove in the top panel.
-
Page 15: Wall Mounting
Wall mounting Warning and fixings In order to prevent this product tipping over, you must use the wall attachment device provided. Wall fixing screws are not included, since different wall materials require different types of screws/ fixings. Please ensure you use the correct screws/ fixings for your type of walls and seek professional advice if you are not sure. -
Page 16: Maintenance
Thank you. If you require additional information or have any issues with this product please call the John Lewis Helpline on 03456 002 389. If you require spare parts or further technical assistance please call 01244 689 949 or email mail@fwgroup-uk.com.
