Summary of Contents for LightSpeed Technologies 4K-100M-ADV-KIT

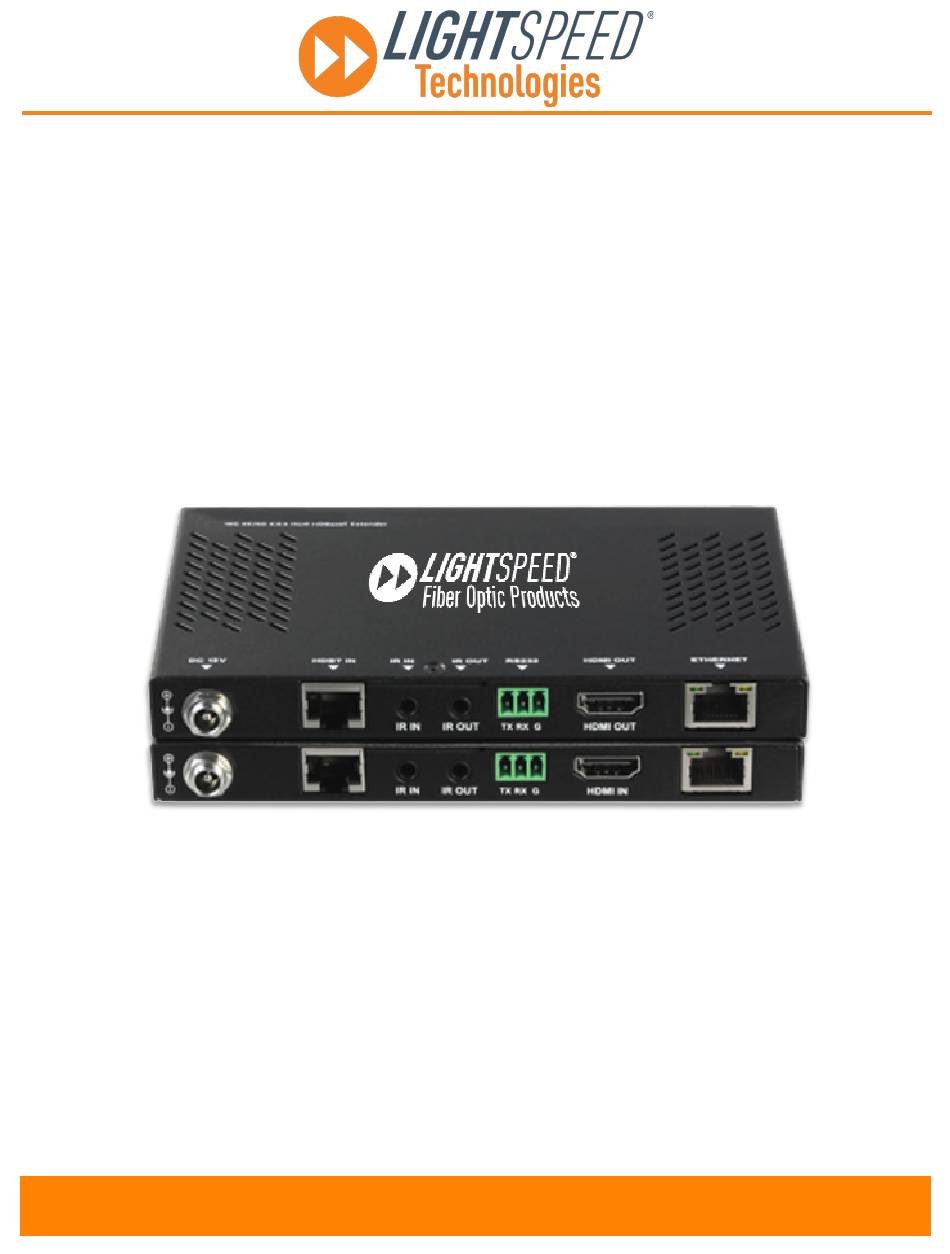

- Page 1 HDMI, IR, RS232 & Ethernet over Twisted Pair Extender Set 4K-100M-ADV-KIT HDMI, IR, RS232 & Ethernet over Twisted Pair Extender Set Version 1.2.0 Installation & Specification Guide...
- Page 2 Ÿ Supports bi-directional power (PoC compatible) from either the receiver or transmitter Ÿ Slim chassis with optional mounting brackets for easy installation *Note: The 4K-100M-ADV-KIT supports Dolby Vision only if the data rate is less than or equal to 10.2Gbps. Available exclusively from Future Ready Solutions www.lightspeed-tech.com | Email: info@lightspeed-tech.com | Phone: 239.948.3789...
-
Page 3: Package Contents
4K-100M-ADV-KIT HDMI, IR, RS232 & Ethernet over Twisted Pair Extender Set Version 1.2.0 Package Contents Ÿ 1 x twisted pair transmitter Ÿ 1 x twisted pair receiver Ÿ 1 x power supply (12VDC/2A) Ÿ 1 x IR emitter Ÿ 1 x IR receiver (rated for broadband 30-50KHz) Ÿ... -
Page 4: Specifications
4K-100M-ADV-KIT HDMI, IR, RS232 & Ethernet over Twisted Pair Extender Set Version 1.2.0 Specifications Video Input/Output Signal Type HDMI 2.0, HDCP 2.2, HDR, 3D Up to 4096x2160@60Hz, including Input/Output Resolution 4K@60Hz/4K@30Hz/1080P/1080I/ Supported 720P 4K: 8/10/12 bit Deep color 1080P: up to 16 bit... - Page 5 4K-100M-ADV-KIT HDMI, IR, RS232 & Ethernet over Twisted Pair Extender Set Version 1.2.0 Panel & LED Descriptions Transmitter & Receiver Front Panels No. Name Description On: The device is powered on POWER LED Off: The device is powered off Blinking: The device is working properly...
- Page 6 4K-100M-ADV-KIT HDMI, IR, RS232 & Ethernet over Twisted Pair Extender Set Version 1.2.0 Transmitter Rear Panel No. Name Description Power adapter port (extender kit only requires power DC 12V supply on transmitter or receiver) Twisted pair cable connection port connecting the...
- Page 7 HDMI, IR, RS232 & Ethernet over Twisted Pair Extender Set Version 1.2.0 RS232 Operation The 4K-100M-ADV-KIT supports bi-directional RS232 control when connected to RS232-enabled devices and control systems via the Phoenix-style connector. Three pins are present: • G = Ground •...
-
Page 8: Troubleshooting
4K-100M-ADV-KIT HDMI, IR, RS232 & Ethernet over Twisted Pair Extender Set Version 1.2.0 Troubleshooting Ÿ Ensure the power is on. Ÿ Ensure the power adapter provided in the package is connected to either the transmitter or receiver Ÿ If power is present on one end only (either the transmitter or receiver), verify the twisted pair cable is connected and terminated according to T568B straight-through standards.
