TUISS Outdoor Zip Roller Blind Installation Manual

Advertisement

Quick Links

Installation Guide
Outdoor Zip Roller Blind

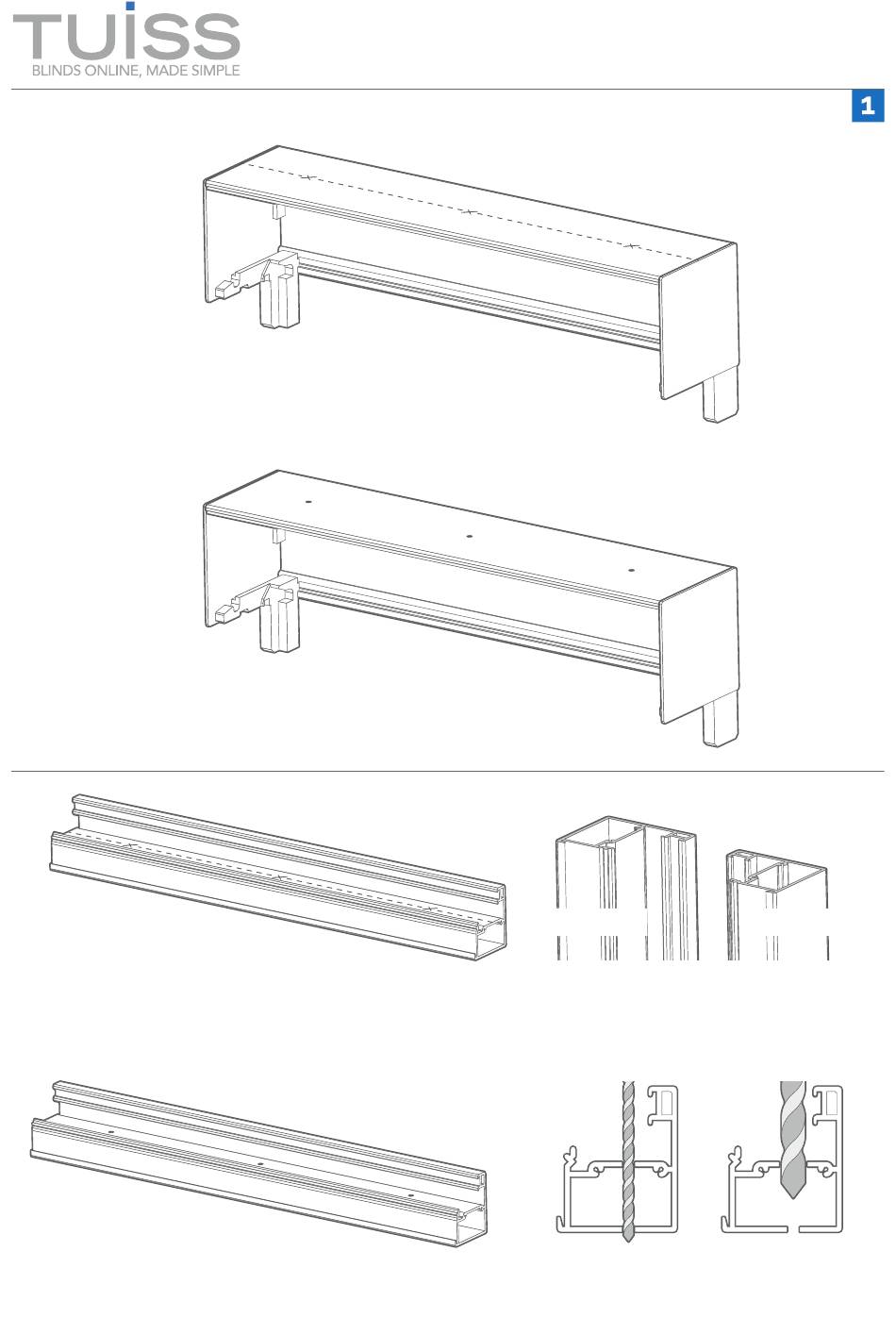

Make pilot holes
Start by marking out some screw holes in the top of the cassette, roughly along its centre
line. Make the outer holes 100mm in from each end, with another around the centre.
Use a 3mm drill bit to drill a hole through the top of the cassette at each mark.
Top of side channels
Left channel
Right channel
Mark out your channels, ensuring you are 100mm from the top and bottom, and every 600mm in between, depending on the
length of your channels. If you are mounting these to brick, please ensure your screw holes will not line up with the mortar of
your wall.
1.
2.
Drill a hole at each mark you made on each channel. Use a 3mm drill bit and drill the holes all the way through the channel.
Then, use a 10mm drill bit to widen just the inner holes.
