9. Install the Drain Line and Air Gap (Air Gap Not Supplied)
• For all drain lines, use at least a 1/2 inch I.D. line.

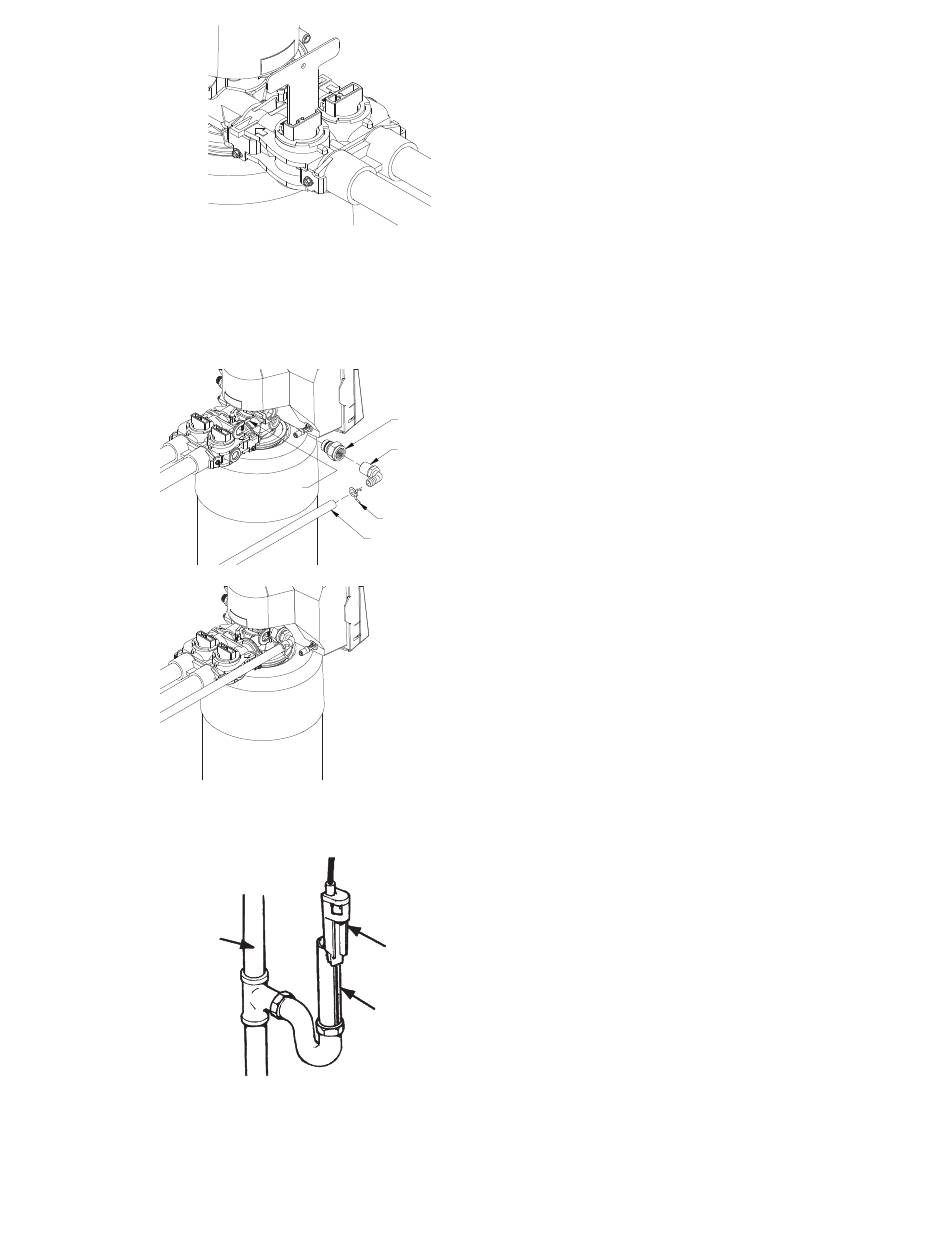

• Connect the drain line to the drain outlet on back of the valve, opposite the inlet
connection (see figure 5). A fitting is require to connect the female pipe thread to the
drain line. Run the drain line to the air gap.
• The air gap should be installed between the end of the drain line and the drain to
prevent possible back siphoning (see figure 6).
DRAIN
STACK
Figure 4
DRAI N LI NE
FLOW CTRL ( DLFC)
Wrap PTFE Thread
Sealant Tape Around
1 /2" NPT Elbow
DLFC CLI P
SPRI NG CLI P
1 /2" DRAI N LI NE
Figure 5
"Mr. Drain"
AIR GAP
STAND PIPE
FOR
WASHER, ETC
Figure 6
Important Note: The air gap should be
two times the diameter of the drain line or
a minimum of two inches. Please check
your local plumbing codes to ensure
compliance.
