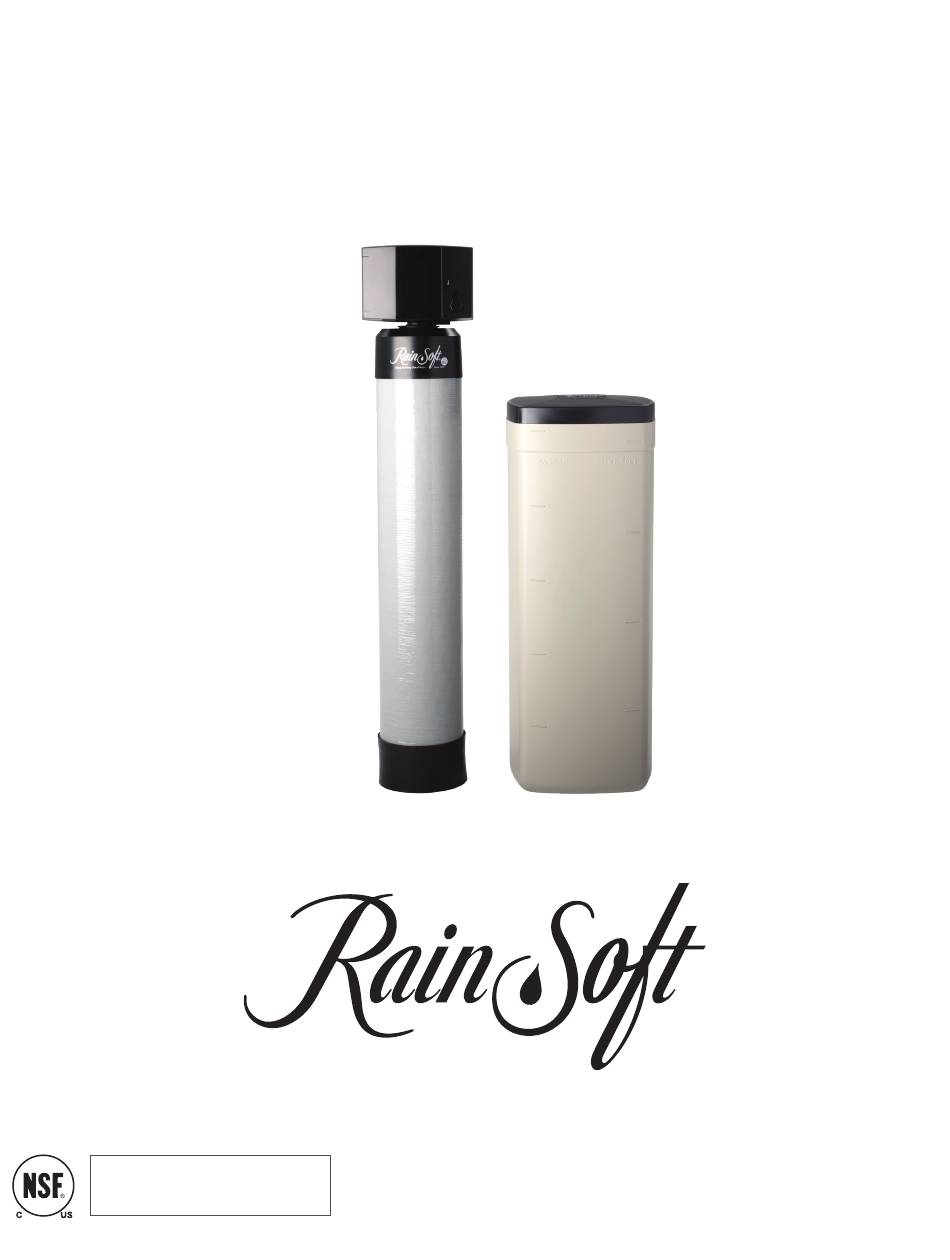

TC CONDITIONER SERIES
WATER TREATMENT SYSTEM
(Generation 6 of Controls)
The TC Conditioner series are tested and certified
The TC Conditioner series are tested and certified
by NSF International to NSF/ANSI Standard 44
by NSF International to NSF/ANSI Standard 44
and CSA B483.1 for the reduction of the claims
and CSA B483.1 for the reduction of the claims
specified on the Performance Data Sheet.
specified on the Performance Data Sheet.
Part No. 50037
Rev C 09/24
RAINSOFT TC CONDITIONER SERIES OWNER'S MANUAL
RAINSOFT.COM
Advertisement
Related Manuals for RainSoft TC Series
Summary of Contents for RainSoft TC Series
- Page 1 CSA B483.1 for the reduction of the claims and CSA B483.1 for the reduction of the claims specified on the Performance Data Sheet. specified on the Performance Data Sheet. Part No. 50037 Rev C 09/24 RAINSOFT TC CONDITIONER SERIES OWNER’S MANUAL RAINSOFT.COM...
-
Page 2: Table Of Contents
Exploded Views and Parts Lists ....18-21 Warranty Information ......22 2 • RAINSOFT TC CONDITIONER SERIES OWNER’S MANUAL... -
Page 3: Information On Water Treatment Systems
Questions? If you have any questions regarding the installation, operation, or servicing of this system, please contact your local RainSoft Dealer. Your local RainSoft Dealer is familiar with your particular water conditions, and is able to address your concerns promptly and efficiently. -
Page 4: Product Certification Information
Safe Drinking Water Act. State of California: TC Conditioner 75 CV and TC Conditioner 100 CV. All other models are not registered in the State of California for the purpose of making health claims. 4 • RAINSOFT TC CONDITIONER SERIES OWNER’S MANUAL... -
Page 5: Installation Instructions
• Align the control valve with the tank. Push down on the control valve and continue to Important Note: Do not over-tighten the turn it clockwise until the valve O‑ring seals against the tank (see figure 1). valve to the tank. Figure 1 RAINSOFT TC CONDITIONER SERIES OWNER’S MANUAL • 5... - Page 6 (see figure 3). The arrow molded into the valve indicates the direction of flow. Figure 3 • Ensure that the bypass valve is in bypass position. The valve handles should be perpendicular to the pipes (see figure 4). 6 • RAINSOFT TC CONDITIONER SERIES OWNER’S MANUAL...
- Page 7 (see figure 6). a minimum of two inches. Please check your local plumbing codes to ensure compliance. DRAIN STACK "Mr. Drain" AIR GAP STAND PIPE WASHER, ETC Figure 6 RAINSOFT TC CONDITIONER SERIES OWNER’S MANUAL • 7...
- Page 8 • Insert the barrel plug from the DC power supply into the mating jack in the back of the control box . • Plug the DC power supply into a 110 VAC 60 Hz or 230 VAC 50 Hz outlet. 8 • RAINSOFT TC CONDITIONER SERIES OWNER’S MANUAL...
-
Page 9: System Start Up
• See Salt Requirements before filling your brine tank with salt. • When using Block Type Salt, please review Stacking Figures on page 10 for correct and incorrect stacking methods of Salt. RAINSOFT TC CONDITIONER SERIES OWNER’S MANUAL • 9... - Page 10 - 4 = 150 lbs of Salt - 3 = 150 lbs of Salt Level - 4.0 level Level - 4.0 level - equal to 200 lbs (Correct) - equal to 200 lbs (Not Correct) 10 • RAINSOFT TC CONDITIONER SERIES OWNER’S MANUAL...
-
Page 11: Salt Requirements
It is always wise to provide preventative maintenance for your system. If small amounts chloride is usually available only in bags of iron are present in your water, use a salt containing iron remover or add RainSoft water and sold specifically for this purpose. -
Page 12: An Overview Of The Regeneration Process
AN OVERVIEW OF THE REGENERATION PROCESS Your RainSoft TC Water Conditioner performs a periodic CYCLE 5: Fast Rinse regeneration cycle to clean mineral bed and restore its capacity. With the brine solution fully rinsed out, the valve then moves to How often it regenerates depends on your water use, incoming its final regeneration process cycle 5. -
Page 13: Tc Control Navigation
This setting is to change the amount of salt used per regen. Use the up or down arrows to adjust the lbs of salt settings. The Salt Setting does effect the efficiency of your softener. Consult with your local RainSoft dealer on what salt setting is best to use. Press Left arrow to exit Regen Settings. -
Page 14: Installer Mode
_____ [A] x _____ [B] = _____ [C] (grains to be softened per day) _____unit capacity at given salt ÷ _______ [C] = ______ days between regen [D] (see page 4) If number [D] is a decimal, round down: ______days 14 • RAINSOFT TC CONDITIONER SERIES OWNER’S MANUAL... -
Page 15: System Errors
Your system is equipped to alert you for alarm situations: When Alarm is active, your TC will display the Error Message and on the Display. Contact your RainSoft Dealer if an Error Message is present.. SYSTEM TESTING To test the functions of your TC Product, example the key pad, the flow meter or motor. -
Page 16: Troubleshooting Guide
2. Install a pressure regulator. If the troubleshooting guide did not resolve the symptom, please contact your local RainSoft Dealer for service. If you cannot locate your local RainSoft Dealer, please contact RainSoft Customer Service at 1-800-860-7638 or logon to www.rainsoft.com for the name and location of your nearest authorized Dealer. -
Page 17: Performance Data Sheets
WATER TREATMENT NEEDS. PART REPLACEMENTS. SEE THE OWNERS MANUAL FOR GENERAL OPERATION AND MAINTENANCE REQUIREMENTS. SEE WARRANTY CARD FOR SPECIFIC WARRANTY INFORMATION. THIS PERFORMANCE DATA SHEET IS NOT FOR USE IN CALIFORNIA. RAINSOFT TC CONDITIONER SERIES OWNER’S MANUAL • 17... -
Page 18: Control Valve Exploded View
CONTROL VALVE EXPLODED VIEW 18 • RAINSOFT TC CONDITIONER SERIES OWNER’S MANUAL... -
Page 19: Control Valve Parts List
51921 RPS SOFTENER VALVE MOTOR ASSY 17501 BRINE GEAR / CAM 51918 SCREW 1/4-20 X 1IN PHIL PAN SS 51912 WIRE HARNESS 1 POWER 24 VDC 52491 GEN6 REAR HOUSING WITH INSERTS RAINSOFT TC CONDITIONER SERIES OWNER’S MANUAL • 19... -
Page 20: Valve Exploded View
VALVE EXPLODED VIEW 20 • RAINSOFT TC CONDITIONER SERIES OWNER’S MANUAL... -
Page 21: Valve Parts List
RISER PIPE RETAINER O-RING 19739 CHECK BALL CAGE ASSEMBLY 13329 O-RING - 014 17941 DIFFUSER UPPER BASKET 1 X .008 RED 32 B 18985 DIFFUSER UPPER BASKET 1 X .02 WHITE 19328 TANK RETAINER SEAL RAINSOFT TC CONDITIONER SERIES OWNER’S MANUAL • 21... -
Page 22: Limited Lifetime Warranty
RainSoft part(s) furnished, for a nominal charge to cover labor, handling, packing and the increase, if any, in the retail price of the part(s) since the date of purchase. Genuine RainSoft parts must be used. Failure to use genuine RainSoft parts will void the warranty and certifications. - Page 23 NOTES RAINSOFT TC CONDITIONER SERIES OWNER’S MANUAL • 23...
