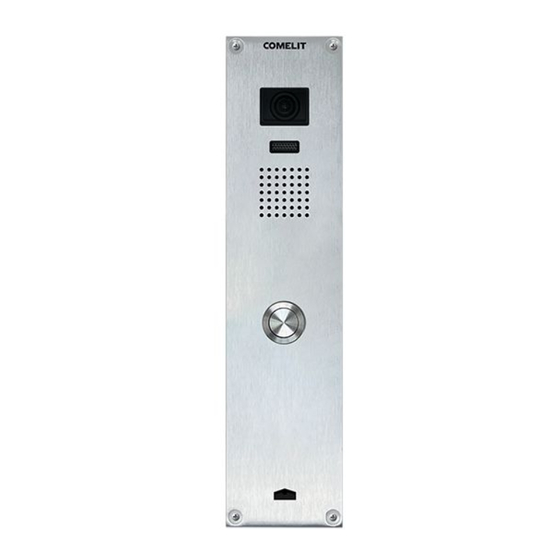

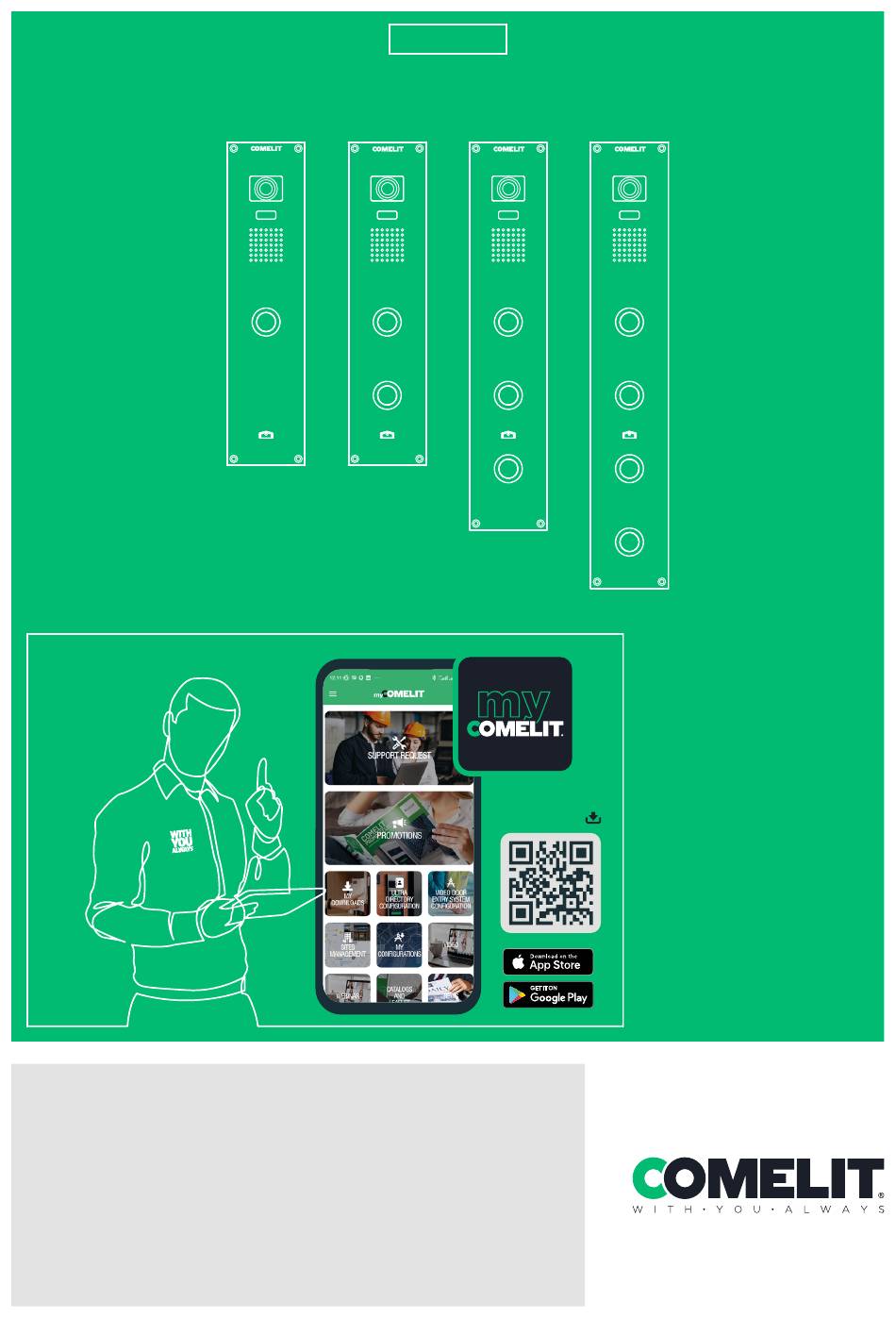

- Page 1 TECHNICAL MANUAL MYCOMELIT: THE APP FOR PROFESSIONALS MYCOMELIT, L'APP PER IL PROFESSIONISTA FREE DOWNLOAD Adam entrance panel with 1-2-3-4 buttons Simplebus 2 System art. AD2101, AD2102, AD2103, AD2104...
-
Page 2: Warning
Warning Intended use This Comelit product was designed for use in the creation of audio and video communication systems in residential, commercial or industrial settings and in public buildings or buildings used by the public. Installation All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with careful observation of the indications provided in the Manuals / Instruction sheets supplied with those products. -
Page 3: Table Of Contents
Table of contents Warning .................... 2 Description ..................5 Technical specifications ..............6 Notes for the installer..............7 Installation ..................8 Settings .................... 9 Programming an additional entrance panel ........ 10 Special programming ..............11 Customising the call code ............13 Table of call codes .................14 Disabling the RTE input .............. - Page 4 The buttons are pre-programmed to call door entry monitors with call code 1/2/3/4. f To customise the call codes, please refer to Customising the call code AD2101 AD2102 AD2103 AD2104...
-
Page 5: Description
Also ideal for renovation projects. Nameplates art. AD9201 and information cards art. AD9202, which can be customised by the user, can also be added. AD2101 AD2102 AD2103 AD2104 1. -
Page 6: Technical Specifications
Technical specifications AD2101 AD2102 AD2103 AD2104 60 mm 37 mm GENERAL DATA Type Complete unit Product colour Aluminium Coating material type Polycarbonate, Anodised aluminium Flush mounting Yes Surface mounting Yes, with specific accessory CAMERA FEATURES Camera Colour Sensor type 1/4" CMOS Fixed lens dimensions (mm) 2.6... -
Page 7: Notes For The Installer
Notes for the installer 79° 79° 79° 50 cm 50 cm 50 cm 111 cm 96° The camera must not be installed in front of light sources, or in places where the filmed subject is against the light. In dim environments, we recommend additional lighting is provided. -
Page 8: Installation
Installation AD2101 AD2102 AD2103 AD2104 AD2101 AD2102 AD2103 AD2104 ENTRANCE PANEL INFO PANEL ENTRANCE PANEL NAMEPLATE AD9202 AD9201 Customisation to be performed by the user OPTIONAL... -
Page 9: Settings
Settings Permanently set the S1 DIP-switches corresponding to the function you want to programme in accordance with the table below (you do not need to enter programming mode) DIP-SWITCH FUNCTION The SE output and the C-NO relay are controlled by 2 separate buttons on the internal unit: the key button (SE) and the actuator button (C-NO) 1 2 3 4 DIP 1... -
Page 10: Programming An Additional Entrance Panel
Programming an additional entrance panel With switching device art. 1405, only one additional entrance panel may be installed. The two entrance panels must be programmed as main and secondary ; see table below. » The “Main entrance panel” carries out lock-release (or actuator) commands only when it is in call or self activation status. -
Page 11: Special Programming
Special programming √ Make a note of the DIP-switch settings example Example f Set the code corresponding to code 184 code 184 the desired programming PROGRAMMING DIP-SWITCH CODE cod. 184 Lock-release activation time: 100 msec 1 2 3 4 cod. 185 Lock-release activation time: 200 msec 1 2 3 4 cod. - Page 12 Reset the configuration of the DIP-switches Only for programs 184, 185, 186, 245, 246, 247 f Set DIP2 to ON. To set the “lock-release activation time” as programmed in step on page...
-
Page 13: Customising The Call Code
Customising the call code √ Make a note of the DIP-switch settings example example code 5 code 5 f Set the call code of the apartment you wish to call (for example: 5) using the DIP- switches (see Table of call codes). -
Page 14: Table Of Call Codes
Table of call codes Code DIP-switch 1,4,6 1,5,7 1,4,5,6,7 1,6,8 1,4,7,8 2,4,6 2,5,7 2,4,5,6,7 2,6,8 2,4,7,8 1,2,4,6 1,2,5,7 1,2,4,5,6.7 1,2,6,8 1,2,4,7,8 3,4,6 3,5,7 3,4,5,6,7 3,6,8 3,4,7,8 1,3,4,6 1,3,5,7 1,3,4,5,6.7 1,3,6,8 1,3,4,7,8 2,3,4,6 2,3,5,7 2,3,4,5,6.7 2,3,6,8 2,3,4,7,8 1,2,3 1,2,3,4,6 1,2,3,5,7 127 1,2,3,4,5,6,7 1,2,3,6,8 1,2,3,4,7.8 4,5,7... -
Page 15: Disabling The Rte Input
Disabling the RTE input √ Make a note of the DIP-switch settings f Set code 206 code 206 Code 206 PROGRAMMING DIP-SWITCH CODE cod. 206 Disable RTE input. 1 2 3 4 Reset the configuration of the DIP-switches To re-enable the function, repeat the procedure. -
Page 16: Operating Distances
6801W (/BM) o 6601W (/BM) 1209 AD2103 A MAX B MAX C MAX Comelit art. 4577 1 mm2 (Ø 1.2 mm AWG 17) 200 m 100 m (655 feet) (330 feet) UTP5 cat. 5 0.2 mm2 (Ø 0.5 mm AWG 24) -
Page 17: Connections
Connections Basic diagram 1216 6721W 6721W/BM +6710 1214/2C 6701W 1 2 3 4 6701W/BM +6710 1214/2C 1 2 3 4 6721W 6721W/BM +6710 1214/2C 6741W 6741W/BM 1 2 3 4 +6710 1214/2C 1 2 3 4 110-240V 1209 12 VAC/VDC 18Ω... -
Page 18: Variant For Using The External Entrance Panel Relay
Variant for using the external entrance panel relay 1209 “C.NO relay activation 2 sec.” 12V/24V AC-DC f Set DIP switch 1 to ON permanently (as shown in the R GND C NO 4A MAX figure) 1 2 3 4 AD2104 System with 2 entrance panels and switching device art. -
Page 19: System With 3 Entrance Panels And Switching Device Art. 1404
System with 3 entrance panels and switching device art. 1404 Video entry riser 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1404 1404 110-240V 110-240V 110-240V 1209 1209 1209 12 VAC/VDC 12 VAC/VDC 18Ω... - Page 20 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy...
