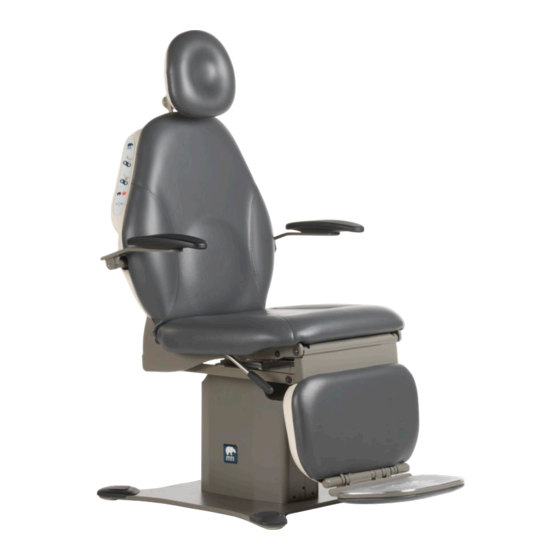

Summary of Contents for MTI 461
- Page 1 & 403 user manual...
- Page 2 SCAN THE QR CODE TO THE LEFT TO ACCESS SETUP AND OPERATION VIDEOS AND RESOURCES FOR THE 461 AND 403 SERIES CHAIRS...
-
Page 3: Table Of Contents
Current Sensing Technology ............................. 14 Shutdown ..................................14 Controls .................................... 15 Headrest Operation ................................. 16 Armrest Operation ................................17 Footrest Operation (461 Model Only) ..........................17 Swivel Operation ................................17 LIST OF ACCESSORIES ................................18 MAINTENANCE ..................................19 Disinfection ..................................19 Cleaning ................................... -
Page 4: Applicable Model(S)
User Manual | MTI 461 & 403 APPLICABLE MODEL(S) This manual is for the following product numbers and serial numbers: PRODUCT NUMBER DESCRIPTION EFFECTIVE S/N 461-002-XX 461 Exam Chair, Swivel Top, 100-240V 230401-XXXXXX to Current 403-002-XX 403 Exam Chair, Swivel Top, 100-240V... -
Page 5: General Information
Training is accomplished either through reading the installation and operation sections of the user manual or through remote training provided by MTI Technical Support. To request training, contact MTI. PRODUCT INFORMATION Date of Purchase:... -
Page 6: Symbols And Warnings
User Manual | MTI 461 & 403 Symbols and Warnings Type B applied part This manual contains Notices, Cautions, and Warnings, which Type B, partie appliquée are meant to call attention to particular parts or sections Proper shipping orientation for the product of this manual. - Page 7 Upper and lower limits of relative humidity Limites haute et basse de humidité relative Upper and lower limits of atmospheric pressure Limites haute et basse de la pression atmosphérique Connection point for the neutral conductor Point de connexion pour le conducteur neutre Connection point for the live conductor Point de connexion pour le conducteur sous tension Connection point for the protective earth (ground)
-
Page 8: Safety Instructions
Backrest, seat, footrest, armrest, headrest, and other parts of the Do not operate equipment in the presence of flammable equipment should only be used for their intended purpose. MTI is anesthetics. not responsible for use of components outside of their intended use. -
Page 9: Electromagnetic Interference
4. Increase separation between equipment and interfering device. is normally required) this equipment might not offer adequate 5. Contact MTI if electromagnetic interference persists. protection to radio-frequency communication services. The user might need to take mitigation measures, such as relocating or Electromagnetic Compatibility (EMC) re-orienting the equipment. - Page 10 The MTI Exam/Procedure Chair is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the MTI Procedure Chair can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the MTI Procedure Chair as recommended below, according to the maximum output power of the communications equipment.
-
Page 11: Guidance And Manufacturer's Declaration - Electromagnetic Immunity
RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the MTI Procedure Chair is used exceeds the applicable RF compliance level above, the MTI Procedure Chair should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the MTI Procedure Chair. -
Page 12: Electrical Requirements
GUIDANCE AND MANUFACTURER’S DECLARATION - ELECTROMAGNETIC IMMUNITY The MTI Exam/Procedure Chair is intended for use in the electromagnetic environment specified below. The customer or the user of the MTI Exam/Procedure Chair should assure that it is used in such an environment. -
Page 13: Contraindications
WARNING/AVERTISSEMENT WARNING/AVERTISSEMENT When using endocardial catheters or high frequency surgical/ Do not plug this equipment into a low power or auxiliary outlet. This procedure devices, use non-conductive material to insulate the equipment must be connected to a 100-240 Volt AC (VAC), 47-63 patient from metal portions of the equipment. -
Page 14: Equipment Features
The 461 Exam Chairs have power lift and back functions with coordinated leg rest and footrest functions. The 461 Exam Chairs have a 550 lb. (249 kg) patient capacity. The 461 Exam Chairs are 21” (53.3 cm) wide with an entry height of 21” (53.3 cm). All 461 Exam Chairs are manual Swivel Top models. -
Page 15: Installation
Fiche sur le connaissement, prendre une photo, et signalez CAUTION/PRÉCAUTION immédiatement tout dommage au transporteur et contactez le support technique de MTI. Demander une inspection par le To move equipment, lift only from the equipment’s main transporteur en cas de dommage caché est noté. -
Page 16: Unpacking And Set-Up
User Manual | MTI 461 & 403 Unpacking and Set-up 1. Remove shipping straps, 2. Remove (4) shipping bolts 3. Slide the chair off the pallet. To 4. With the back and seat shipping box, and other boxes with an adjustable or 7/16” end... - Page 17 13. If applicable, plug in the foot 14. If applicable, attach any 15. Position the chair in the 16. Install the (4) leveling control at the base of the chair. accessories. See the accessory’s desired location. Level the chair glide covers over the feet of Instruction Guide for installation by adjusting the height of the the baseplate.
-
Page 18: Operation
Current sensing technology will also slow the motion of the chair when experiencing higher loads for increased stability. Shutdown To shutdown the 461/403 Exam Chair, unplug the chair from the outlet. -
Page 19: Controls
Controls ITEM DESCRIPTION FUNCTION FOOT CONTROLS AND HAND SWITCHES Back Up/Down Buttons Raises or lowers the backrest in coordination with the leg rest by pressing the desired direction. Lift Up/Down Buttons Raises or lowers the chair top by pressing the desired direction. Stop Button (Emergency Stops all motorized movement of chair. -
Page 20: Headrest Operation
User Manual | MTI 461 & 403 Headrest Operation Articulating Headrests 1. To attach the headrest. 2. To adjust the height of the 3. To adjust the angle of the 4. To remove a headrest: headrest: headrest: A. Loosen the knob on the A. -
Page 21: Armrest Operation
Les accoudoirs ne se verrouille pas en place. Faites preuve de prudence pour éviter que les accoudoirs ne soient heurtés en position verticale. Tenir fermement les accoudoirs tout en les déplaçant pour les empêcher de tomber rapidement. Footrest Operation (461 Model Only) 1. To fold up the footrest: 2. -
Page 22: List Of Accessories
User Manual | MTI 461 & 403 LIST OF ACCESSORIES DESCRIPTION RESTRICTIONS Additional Headrests 461: Deep Oval, Magnetic, and Prosthetic Provides an articulating surface with various Articulating Headrests pillow shapes/sizes to support patient’s head. 403: Oval, Deep Oval, Magnetic, and... -
Page 23: Maintenance
See “MTI Suggested Disinfectants Policy” for more details on disinfecting solutions which have CAUTION/PRÉCAUTION been tested on MTI’s products. It is available for download at Contact with sharp or pointed objects can damage the www.mti.net/DisinfectantsPolicy. In the U.S. & Canada, call upholstery. -
Page 24: Cleaning
User Manual | MTI 461 & 403 Cleaning Calls for Service Upholstery should be cleaned weekly with a mild liquid soap Equipment’s model and serial number information are and water mixture. Afterwards, wipe upholstery with clean required when calling for service. -
Page 25: Limited Warranty
This warranty does not apply to any part or product which upon examination by MTI or its authorized agents indicates the product has been repaired or altered in any way by persons other than MTI or its authorized agents, has been misused, abused or used in a manner contrary to any instructions issued by MTI. -
Page 26: Troubleshooting Guide
Voir «SOUND GUIDE» à la page 23 pour des solutions supplémentaires. Pour plus d’informations sur cet équipement, y compris des schémas de circuits, le manuel de service et pièces (Numéro d’article 130-3833), et autres descriptions, s’il vous plaît contacter MTI. -
Page 27: Sound Guide
SOUND GUIDE SOUND STATUS OR CONDITION Short beep immediately after pressing P1 or P2 Programmed position has not been saved. Short beep and chair stops moving Current sensing has detected an excessive load and stopped the actuator or column. Remove or reposition patient. Double beep A programmed position has been successfully saved. -
Page 28: Specifications
User Manual | MTI 461 & 403 SPECIFICATIONS DESCRIPTION SPECIFICATION Load Capacity Lift 550 lb (249 kg) Back 300 lb (136 kg) Footrest (Stationary Load) (461 Model Only) 150 lb (68 kg) Looped Footrest (403 Model Only) 150 lb (68 kg) -
Page 29: In-Service Form
User Manual the desired program button for 5 seconds. Once saved, audible confirmation will be received. If you would like to receive occasional emails regarding MTI promotions and product announcements, fill out the sales form at www.mti.net/contact-us. MTI, Inc. - Page 30 THIS PAGE IS INTENTIONALLY BLANK...
- Page 31 THIS PAGE IS INTENTIONALLY BLANK...
- Page 32 800-924-4655 • 801-875-4999 • Fax 801-952-0548 www.mti.net © MTI All rights reserved. MTI reserves the right to make any product changes without notice. The MTI brand and Bear logo design are registered trademarks of MTI, Inc. in the United States.
