Instruction Guide | 322/323/324
U.S. & Canada (888) 520-4998 | International (801) 875-4998 | www.mti.net
This manual is for the following part numbers:
PART NUMBER
322-XX-XXX
323-XX-XXX
324-XX-XXX
DATE
REVISION
12/22/2015
A
DESCRIPTION
Stool, Pneumatic Hand Operated, Chrome Base w/o Backrest
Stool, Pneumatic Hand Operated, Chrome Base w/ Ergo Backrest
Stool, Pneumatic Hand Operated, Chrome Base w/ Body Support
REVISION HISTORY TABLE
CO#/ECO#
CO-0066
WARNING/AVERTISSEMENT
Read this manual before installation and use.
Lisez ce manuel avant l'installation et l'utilisation.
Required Tools (324 Model Only)
5/32" Allen
Wrench
Optional Tools (324 Model Only)
Phillips
Screwdriver
3/16" Allen
Wrench
DETAILS
Initial release
Awl or sharp instrument
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MTI 322
Summary of Contents for MTI 322

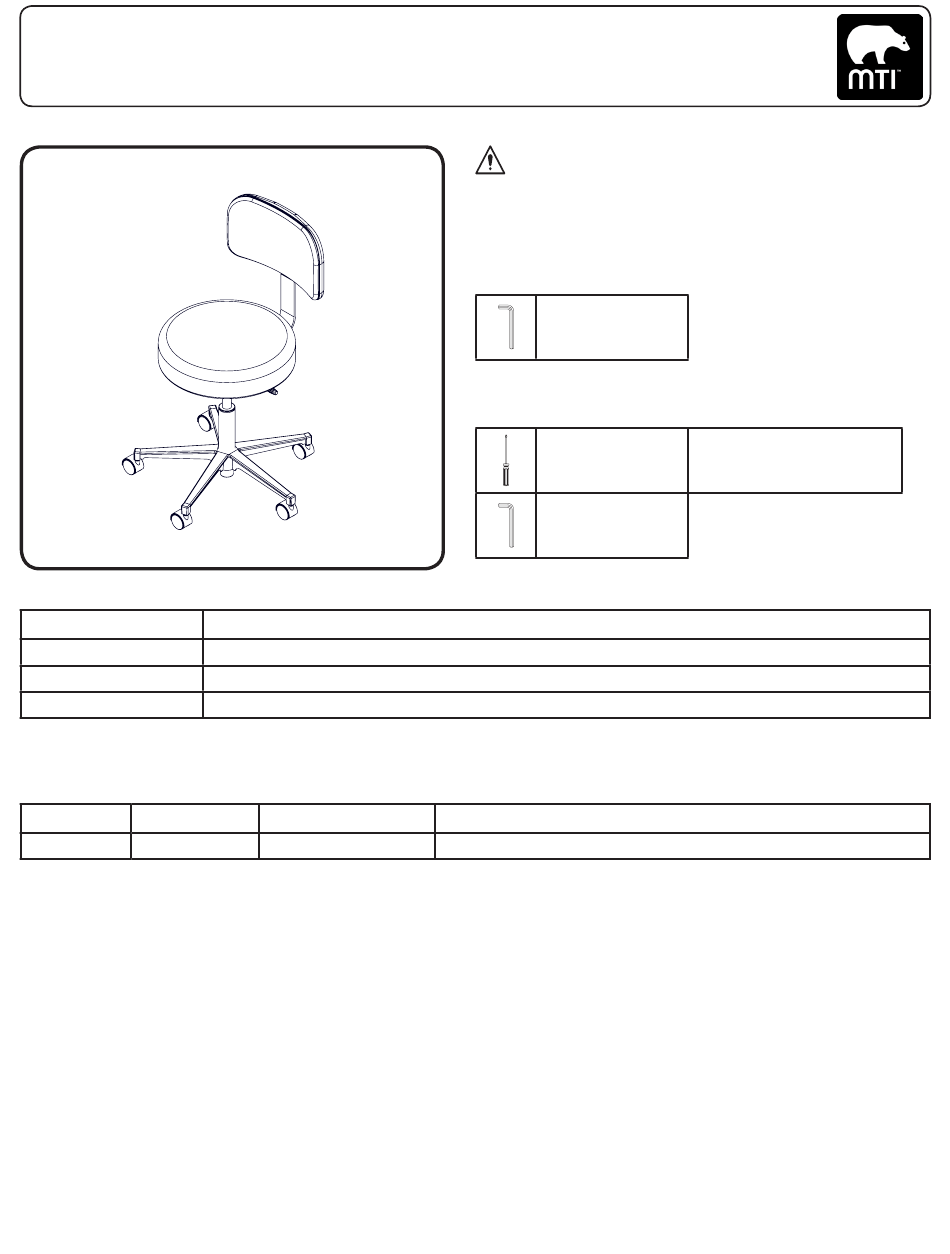

- Page 1 Instruction Guide | 322/323/324 U.S. & Canada (888) 520-4998 | International (801) 875-4998 | www.mti.net WARNING/AVERTISSEMENT Read this manual before installation and use. Lisez ce manuel avant l’installation et l’utilisation. Required Tools (324 Model Only) 5/32” Allen Wrench Optional Tools (324 Model Only)
-
