Owner's Manual
Original Instructions

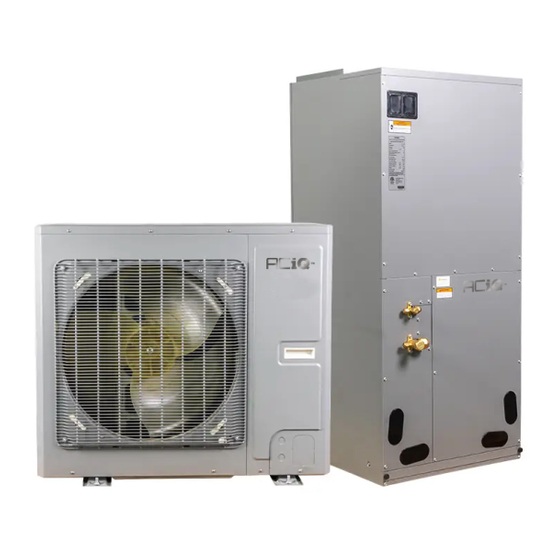

Split Air Conditioner
MODELS:
SC-42-AHB
SC-48-AHB
SC-60-AHB
Thank you for choosing our product.
Please read this Owner's Manual carefully before operation and
retain it for future reference.
NOTE :
Actual product may be different from graphics,
please refer to actual products.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-42-AHB and is the answer not in the manual?

Questions and answers

Related Manuals for ACIQ SC-42-AHB

Summary of Contents for ACIQ SC-42-AHB

  • Page 1 Owner's Manual Original Instructions Split Air Conditioner MODELS: SC-42-AHB SC-48-AHB SC-60-AHB Thank you for choosing our product. Please read this Owner’s Manual carefully before operation and retain it for future reference. NOTE : Actual product may be different from graphics,...
  • Page 3 To Users Thank you for selecting product. Please read this instruction manual carefully before installing and using the product, so as to master and correctly use the product. In order to guide you to correctly install and use our product and achieve expected operating effect, we hereby instruct as below: (1) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,...
  • Page 4 Exception Clauses Manufacturer will bear no responsibilities when personal injury or property loss is caused by the following reasons: Damage the product due to improper use or misuse of the product. Alter, change, maintain or use the product with other equipment without abiding by the instruction manual of manufacturer.

  • Page 5: Table Of Contents

    Contents 1 Safety Precautions ..............1 2 Product Introduction ............. 3 2.1 Product Description ..............3 2.2 Operating Range ................ 3 2.3 Optional Accessories..............3 2.4 Physical Dimension ..............3 2.5 Names of Main Parts ..............4 2.6 General Information ..............4 2.7 Dip Switch Configuration ............
  • Page 6 7.1 Drain Pipe ................32 7.2 Notice before Seasonal Use............. 32 7.3 Maintenance after Seasonal Use ..........32 7.4 Parts Replacement..............32 8 After-Sales Service .............. 33...

  • Page 7: Safety Precautions

    Air Handlers 1 Safety Precautions This product can’t be installed at corrosive, inflammable or explosive environment or the place with special requirements, such as kitchen. Otherwise, it will affect the normal operation or shorten the service life of the unit, or even cause fire hazard or serious injury.
  • Page 8 Air Handlers Electrical shock hazard: Failure to follow this warning could result in personal injury or death. Before installing, modifying, or servicing system, main electrical disconnect switch must be in the OFF position. There may be more than 1 disconnect switch. Lock out and tag switch with a suitable warning label.

  • Page 9: Product Introduction

    Air Handlers The first 6 inches of supply air plenum and ductwork must be constructed of sheet metal as required by NFPA 90B. Metal plenum of duct may be connected to the non-combustible floor base for downflow. Exposing combustible non-metal. material to the supply opening of a downflow unit can cause a fire resulting in property damage, personal injury or death.

  • Page 10: Names Of Main Parts

    Air Handlers Unit: inch(mm) Dimension Model 21-1/4 21-1/4 48-3/16 11-5/8 SC-42-AHB (540) (540) (1224) (295) (508) SC-48-AHB 24-13/16 21-1/4 11-5/8 (630) (540) (1320) (295) (508) SC-60-AHB NOTE: The outdoor unit models that can be matched with the indoor unit can be found on the AHRI website.

  • Page 11: Dip Switch Configuration

    Air Handlers 2.7 Dip Switch Configuration Set the indoor fan speed through the eight dip switches of the indoor main control board. The higher level, the higher speed of the indoor unit fan. Operation Instruction is below: Dip switch settings must be completed before power on the unit. After the unit is shut down or stopped at the temperature point, the indoor unit will delay for a few minutes and then shut down.

  • Page 12: Fan Performance Data

    Air Handlers Model Level Heat (SA2) Cool (SA1) Level 1 Level 2 Level 3 Level 4-Default SC-42-AHB Level 5 Level 6 Level 7 Level 8 Level 1 Level 2 Level 3 Level 4 SC-48-AHB Level 5 Level 6-Default Level 7...
  • Page 13 Air Handlers Model SC-42-AHB Static pressure:Inches W.C.(Pa) Level 0.15 (25) (37) (50) (75) (100) (125) (150) (175) (200) (225) (250) Speed 1100 1000 1(CFM) Speed 1300 1200 1100 1010 2(CFM) Speed 1380 1260 1200 1100 3(CFM) Speed 1710 1650 1600 1560 1480 1400 1230 1150 1080...
  • Page 14 Air Handlers Model SC-48-AHB Static pressure:Inches W.C.(Pa) Level 0.15 (25) (37) (50) (75) (100) (125) (150) (175) (200) (225) (250) Speed 1640 1500 1(CFM) Speed 1680 1560 1500 2(CFM) Speed 1810 1690 1620 1550 3(CFM) Speed 1930 1830 1770 1710 1580 1480 4(CFM) Speed 2200 2110 2040 1980 1860 1720 1620 1490...
  • Page 15 Air Handlers Model SC-60-AHB Static pressure:Inches W.C.(Pa) Level 0.15 (25) (37) (50) (75) (100) (125) (150) (175) (200) (225) (250) Speed 1660 1540 1470 1(CFM) Speed 1850 1720 1650 1600 2(CFM) Speed 1920 1800 1730 1650 1480 3(CFM) Speed 2110 2000 1950 1860 1760 1640 1500 4(CFM) Speed 2250 2200 2190 2140 2040 1930 1800 1670 1520...

  • Page 16: Preparative For Installation

    Air Handlers 3 Preparative for Installation 3.1 Pre-Installation Instruction 3.1.1 Checking Product Received After receiving the product, please check if there is any damage caused by transportation. Shipping damage is the responsibility of the carrier. Verify the model number, specifications and accessories are correct prior to installation. The distributor or manufacturer will not accept claims from dealers for transportation damage or installation of incorrectly shipped units.
  • Page 17 Air Handlers Immediate hazards which will result in property damage, product damage, severe personal injury or death. Hazards or unsafe practices could result in property damage, product damage, severe personal injury or death. Hazards or unsafe practices which may result in property damage, product damage, severe personal injury or death.

  • Page 18: Installation

    Air Handlers Other methods of grounding are permitted if performed in accordance with the “National Electric Code” (NEC)/ “American National Standards Institute” (ANSI)/ “National Fire Protection Association” (NFPA) 70 and local/state codes. In Canada, electric grounding conforms to the Canadian electric code CSA c22.1. Failure to observe this warning can result in electrical shock that can cause personal injury.

  • Page 19: Location

    Air Handlers Please check the equipment model number to ensure the unit is appropriately sized for the condensing unit. If an incorrect unit is supplied, it must not be installed and it is to be returned to the supplier. The manufacturer assumes no responsibility for the installation of incorrectly delivered units.

  • Page 20: Piping Work

    Air Handlers 4.3 Piping Work 4.3.1 Specification of Connection Pipe External diameter (inch) Model Gas pipe Liquid pipe SC-42-AHB SC-48-AHB Φ3/4 Φ3/8 SC-60-AHB 4.3.2 Piping Preparation The gas pipe connection method adopts solder connection, the liquid pipe connection method is screw connection.

  • Page 21: Screw Connection

    Air Handlers First, wrap the rubber grommet with water saturated cloth, and then weld off the cap closures from the gas pipes. Then weld the gas pipes with the connecting pipes. 4.3.2.2 Screw Connection Pipe diameter (inch) Tightening torque (N·m) Φ1/4 15-30 Φ3/8...

  • Page 22: Condensate Removal

    Air Handlers Pipe diameter (inch) Tightening torque (N·m) Φ5/8 60-65 Φ3/4 70-75 Φ7/8 80-85 4.4 Condensate Removal It is not allowed to connect the condensate drain pipe into waste pipe or other pipelines which are likely to produce corrosive or peculiar smell to prevent the smell from entering indoors or corrupt the unit.

  • Page 23: Electric Heater

    Air Handlers must comply with National Fire Protection Association as tested by U/L Standard 181 for Class I Air Ducts. Check local codes for requirements on ductwork and insulation. Duct system must be designed within the range of external static pressure the unit is designed to operate against.
  • Page 24 Air Handlers unsafe. Refer to the “Fan Performance Data” section of this manual, otherwise it is possible to cause an exception and dry risk of electric heating. The supply ducts that are 5 feet away from electric heating must be at least 1 feet away from other combustibles or walls. 4.6.1 Electric Heater Kits Available Ref.

  • Page 25: Electrical Installation

    Air Handlers 7) Connect ground wire to ground lug; M6 screws are required for grounding screws when installing electric heating. 8) Knock off appropriate area of the plastic circuit breaker cover on the access panel of the air handler. Knock off the holes according to the actual installation number and positions of circuit breakers.
  • Page 26 Air Handlers ②. The unit’s operating power must be within the nominal range stated in the instruction manual. Use a specialized power circuit for the air conditioner. Do not draw power from another power circuit. ③. The air conditioner circuit should be at least 1.5m away from any inflammable surface.

  • Page 27: Electrical Parameters

    Model Power supply circuit overcurrent ampacity (A) protection (A) SC-42-AHB SC-48-AHB 208/230V-1Ph-60Hz SC-60-AHB ①. Fuse is located on the main board. ②. Install a circuit breaker at every power terminal near the units (indoor unit and thermostat) with at least 3mm contact gap. The units must be able to be plugged or unplugged.
  • Page 28 Air Handlers For strand wires (as shown below): 1) Use wire cutters to cut off the wire end and then peel away about 10mm of the insulation layer. 2) Use a screwdriver to unscrew the terminal screw on the terminal board. 3) Use a round terminal fastener or clamp to fix the round terminal firmly on the peeled wire end.
  • Page 29 Air Handlers powered on. ②. Match the terminal numbers and wire colors with the colors indicated in the indoor unit. ③. Wrong wire connection may burn the electrical components. ④. Connect the wires firmly to the wiring box. Incomplete installation may lead to fire hazard.
  • Page 30 Air Handlers SC-42-AHB, SC-48-AHB, SC-60-AHB Electrical wiring of indoor units (Only for air handler with electric heater)
  • Page 31 Air Handlers...
  • Page 32 Air Handlers SC-42-AHB, SC-48-AHB, SC-60-AHB (only for air handler with BLR 5000W/240V, BLR 8000W/240V or BLR 10000W/240V)
  • Page 33 Air Handlers SC-48-AHB, SC-60-AHB (only for air handler with BLR 15000W/240V or BLR 20000W/240V) NOTE: Y means Compressor control signal for the outdoor unit. B which is energized under the heating mode means 4-way valve control signal. D means defrosting signal. R means 24V AC power supply.
  • Page 34 Air Handlers C means 24V common. G means indoor unit fan signal for the indoor unit. W2/AUX means heater control signal. L reserved function. NOTE: For cooling only unit, there is no need to connect the B and D terminals. NOTE: When outdoor defrosts, D of outdoor unit will send 24V signal to avoid cold winds.

  • Page 35: Installation Check And Trial Run

    Air Handlers 5 Installation Check and Trial Run 5.1 Checking Items after Installation Problems might happen due to Items to be checked Check improper installation Check if each parts of the unit have The unit might fall off, vibrate or emit been installed reliably.

  • Page 36: Common Malfunction And Elimination

    Air Handlers All the scattered objects should be removed, especially metal filing, thrum and clip. Check if the unit appearance and piping system has been damaged during transportation or handling. Check if the terminals are loose and the phases are correct. 5.2.2 Trial Run Trial run can be operated by professional personnel only after above items have been checked (items to be checked as per actual condition).
  • Page 37 Air Handlers service center and show phenomena and models. Following circumstances are not malfunction. “Malfunction” Reason When unit is started Overload protection switch immediately after it is makes it run after 3 minutes Unit doesn’t run. just turned off. delay. When power is turned Standby operating for about 1 minute.

  • Page 38: Maintenance And Care

    Air Handlers Different running indicator flashing light means different system failure. malfunction Running Indicator status Remark Indoor Jumper cap failure Light out 3S then flash once. Indoor fan failure Light out 3S then flash twice. Flash means light on 0.5S then light out 0.5S. Indoor tube temperature Light out 3S then flash sensor failure...

  • Page 39: After Sales Service

    Air Handlers 8 After-Sales Service In case the air-conditioning unit you bought has any quality problem or you have any inquiry, please contact the local after-sales service agency designated by factory. Warranty should meet the following requirements: First run of the unit should be operated by professional personnel from factory appointed service center.
