ACIQ -18ZPL-HP230C Owner's Manual

18k-60k floor/ceiling mount air handler & extreme heat single-zone condenser
Hide thumbs Also See for ACiQ-18ZPL-HP230C:
Table of Contents

Advertisement

Quick Links

Download this manual

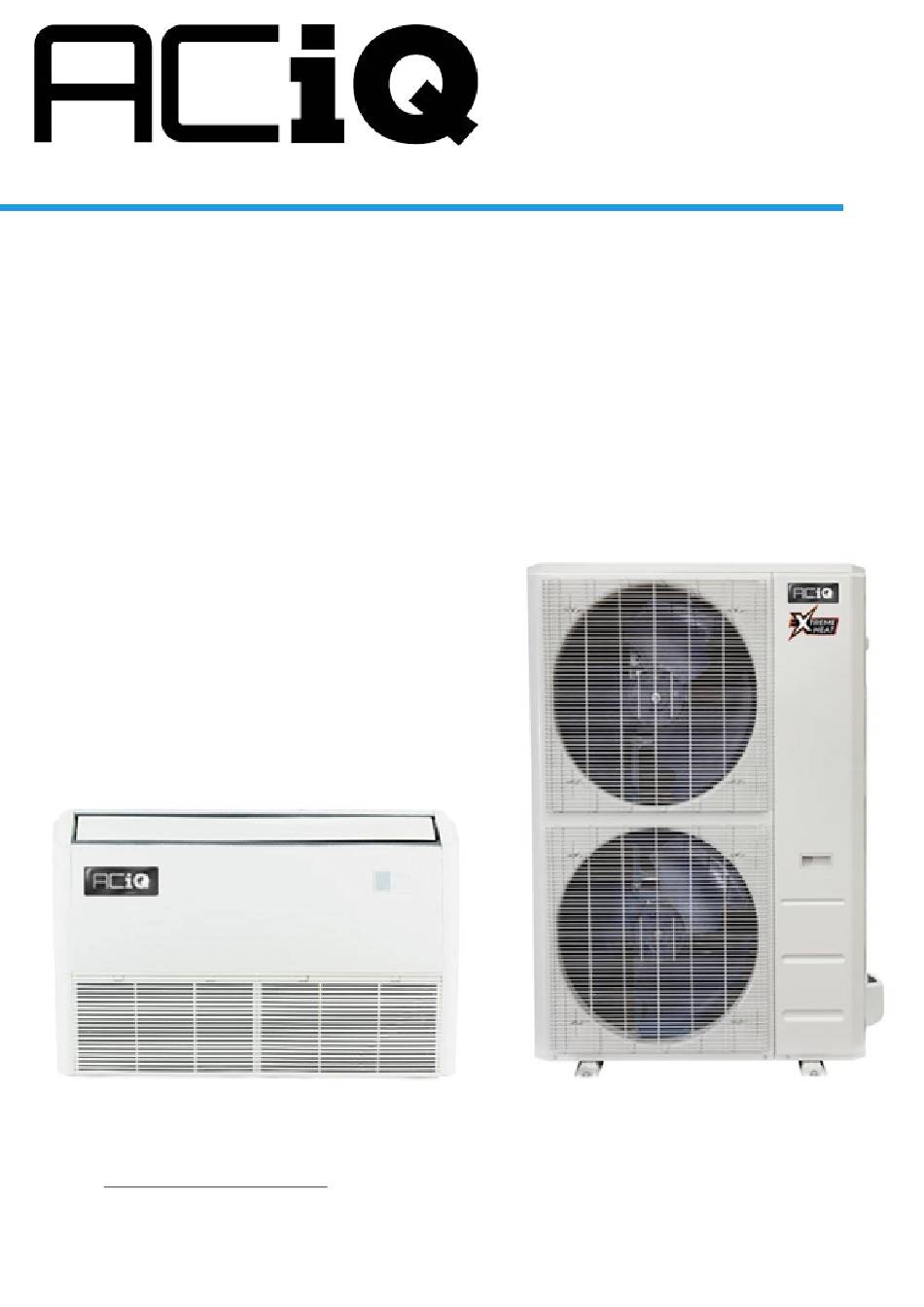

18K-60K FLOOR/CEILING MOUNT AIR HANDLER &
EXTREME HEAT SINGLE-ZONE CONDENSER
OWNER'S MANUAL
Models Covered:
ACiQ-18FM-HH-MD
ACiQ-24FM-HH-MD
ACiQ-36FM-HH-MD
ACiQ-48FM-HH-MD
ACiQ-60FM-HH-MD
WARNING: DO NOT destroy or lose this manual. Please read the manual thoroughly. Also, store the manual in a place that allows for easy
retrieval and future reference. As a result of continuous product improvement, the specification and design of this product are subject to
change without advanced notice. Consult your manufacturer or your dealer for further details regarding this product. The images and
illustrations within this this manual are for reference only. The actual shape and size of your product may vary.
ACiQ-18ZPL-HP230C
ACiQ-24ZPL-HP230C
ACiQ-36ZPL-HP230C
ACiQ-48ZPL-HP230C
ACiQ-60ZPL-HP230C
VERSION DATE: 02-20-25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACiQ-18ZPL-HP230C and is the answer not in the manual?

Questions and answers

Related Manuals for ACIQ ACiQ-18ZPL-HP230C

Summary of Contents for ACIQ ACiQ-18ZPL-HP230C

  • Page 1 18K-60K FLOOR/CEILING MOUNT AIR HANDLER & EXTREME HEAT SINGLE-ZONE CONDENSER OWNER'S MANUAL Models Covered: ACiQ-18FM-HH-MD ACiQ-18ZPL-HP230C ACiQ-24FM-HH-MD ACiQ-24ZPL-HP230C ACiQ-36FM-HH-MD ACiQ-36ZPL-HP230C ACiQ-48FM-HH-MD ACiQ-48ZPL-HP230C ACiQ-60FM-HH-MD ACiQ-60ZPL-HP230C WARNING: DO NOT destroy or lose this manual. Please read the manual thoroughly. Also, store the manual in a place that allows for easy retrieval and future reference.
  • Page 3 CONTENTS SAFETY PRECAUTIONS OPERATION INSTRUCTIONS CARE AND MAINTENANCE TROUBLESHOOTING...

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS It is really important that you read Safety Precautions Before Operation and Installation. Incorrect installation due to ignoring instructions can cause serious damage or injury. The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION. Explanation of Symbols WARNING This symbol indicates the possibility of personnel injury or loss of...
  • Page 5 ELECTRICAL WARNINGS Only use the specified wire. If the wire is damaged, it must be replaced by the ● manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The product must be properly grounded at the time of installation, or electric ●...
  • Page 6 Please check the machine you purchased. The height of the room cannot be less then 7.3ft/2.2m, and the minimum room area of operating or storage should be as specified in the following table: Model Indoor unit Outdoor unit ACIQ-18ZPL-HP230C ACIQ-18FM-HH-MD ACIQ-24ZPL-HP230C ACIQ-24FM-HH-MD ACIQ-36ZPL-HP230C ACIQ-36FM-HH-MD...
  • Page 7 NOTE: This air conditioner can be installed on the wall or suspended from the ceiling. [ft/m] inst 6.0~7.3/ c or 7.9/2.4 8.6/2.6 9.2/2.8 9.9/3.0 [ozs/kg] 1.8~2.2 12/1.10 ≤62.6/1.776 63.4/1.8 60/5.53 55/5.07 51/4.68 47/4.35 44/4.06 70.5/2.0 67/6.15 61/5.64 56/5.20 52/4.83 49/4.51 77.5/2.2 73/6.76 67/6.20...
  • Page 8 [ft/m] inst 0.66~1.97 5.9~7.2 c or [oz/kg] 0.2-0.6 0.8~1.2 12/1.10 ≤62.6/1.776 63.4/1.8 60/5.53 60/5.53 60/5.53 67/6.15 70.5/2.0 67/6.15 67/6.15 77.5/2.2 73/6.76 73/6.76 73/6.76 84.6/2.4 80/7.38 80/7.38 80/7.38 91.7/2.6 86/7.99 86/7.99 86/7.99 98.7/2.8 93/8.60 93/8.60 93/8.60 100/9.22 100/9.22 100/9.22 105.8/3.0 106/9.83 106/9.83 106/9.83 112.8/3.2...
  • Page 9 1. Installation(where refrigerant pipes are allowed) - Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification. - Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

  • Page 10: Information Servicing

    c. During the evacuation test, after achieving a vacuum level specified in the manual or less, the refrigeration system shall be isolated from the vacuum pump and the pressure shall not rise above 1500 microns within 10 min. The vacuum pressure level shall be specified in the manual, and shall be the lessor of 500 microns or the value required for compliance with national and local codes and standards, which may vary between residential, commercial,and industrial...
  • Page 11 6. No ignition sources No person carrying out work in relation to a REFRIGERATING SYSTEM which involves exposing any pipe work shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept su ciently far away from the site of installation, repairing, removing and disposal, during which refrigerant can possibly be released to the surrounding space.
  • Page 12 12. Cabling Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental e ects. The check shall also take into account the e ects of aging or continual vibration from sources such as compressors or fans.
  • Page 13 15. Charging procedures In addition to conventional charging procedures, the following requirements shall be followed: Works shall be undertaken with appropriate tools only (In case of uncertainty,  please consult the manufacturer of the tools for use with flammable refrigerants) Ensure that contamination of di erent refrigerants does not occur when using ...
  • Page 14 for the recovered refrigerant and labelled for that refrigerant (i. e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure-relief valve and associated shut-o valves in good working order. Empty recovery cylinders are evacuated and, if possible,cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of the flammable refrigerant.

  • Page 15: Indoor Unit Display

    OPERATION INSTRUCTIONS NOTE Di erent models have di erent front panel and display window. Not all the indicators describing ● below are available for the air conditioner you purchased. Please check the indoor display window of the unit you purchased. Illustrations in this manual are for explanatory purposes.
  • Page 16 • MANUAL button : This button selects the mode in the following order: AUTO, FORCED COOL, OFF. FORCED COOL mode : In FORCED COOL mode, the Operation light flashes. The system will then turn to AUTO after it has cooled with a high wind speed for 30 minutes. The remote control will be disabled during this operation.

  • Page 17: More Features

    More Features NOTE Every time the air conditioner is powered on, a buzzing sound will be heard to indicate that the product has been powered on normally. If there is no sound, it is possible that the unit is abnormal. Please power on again or check the circuit.

  • Page 18: Care And Maintenance

    CARE AND MAINTENANCE CAUTION • The cooling e ciency of your unit and your health would be damaged for the glogged AC， Make sure to clean the filter every two weeks. • Always TURN OFF your AC system and disconnect its power supply before cleaning or maintenance.

  • Page 19: Maintenance - Long Periods Of Non-Use

    CAUTION • Before changing the filter or cleaning, turn o the unit and disconnect its power supply. • When removing filter, do not touch metal parts in the unit. The sharp metal edges can cut you. • Do not use water to clean the inside of the indoor unit. This can destroy insulation and cause electrical shock.

  • Page 20: Troubleshooting

    TROUBLESHOOTING CAUTION If any of the following conditions occurs, turn o your unit immediately! • The power cord is damaged or abnormally warm • You smell a burning odor • The unit emits loud or abnormal sounds • A power fuse blows or the circuit breaker frequently trips •...
  • Page 21 Issue Possible Causes The outdoor unit The unit will make di erent sounds based on its current operating mode. makes noises Dust is emitted from The unit may accumulate dust during extended periods of non-use, which will be either the indoor or emitted when the unit is turned on.
  • Page 22 Problem Possible Causes Solution Wait for the power to be restored Power failure The power is turned o Turn on the power The unit is not The fuse is burned out Replace the fuse working Replace batteries Remote control batteries are dead The Unit’s 3-minutes protection Wait three minutes after restarting has been activated...
  • Page 24 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded to the service website, please check for the latest version. ACiQ-QS003U-DL(R454B) 16122700A24675...
