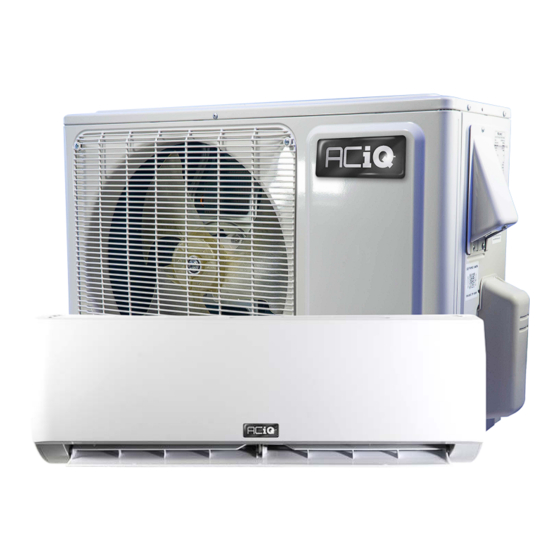

- Page 1 HIGH-WALL DUCTLESS AIR CONDITIONING & HEATING SYSTEM INSTALLATION MANUAL Models: SC-09ZGLD-HP230 SC-09WGLD-HP230 SC-12ZGLD-HP230 SC-12WGLD-HP230 SC-18ZGLD-HP230 SC-18WGLD-HP230 SC-24ZGLD-HP230 SC-24WGLD-HP230 SC-30ZGLD-HP230 SC-30WGLD-HP230 SC-36ZGLD-HP230 SC-36WGLD-HP230...
-
Page 2: Table Of Contents
Thank you for choosing an ACiQ Heat Pump for your customer. Table of Contents Safety Precautions ......... . . 2-3 System Requirements . -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read the following before operation. Recognize safety information. This is the safety-alert symbol. When you see this symbol on the unit and in instructions or manuals, be alert to the potential for personal injury. Understand these signal words: DANGER, WARNING, and CAUTION. These words are used with the safety-alert symbol. - Page 4 SAFETY PRECAUTIONS C UTION • The unit should be installed and serviced only by trained, qualified installers and service technicians. Untrained personnel can perform basic maintenance functions such as cleaning coils. All other operations should be performed by trained service personnel. •...
-
Page 5: System Requirements
SYSTEM REQUIREMENTS PIPE SIZE in (mm) Unit Size Voltage Liquid Line Suction/Gas Line (BtuH) 3/8 (9.5) 9,000 208/230v - 1ph 60hz 1/4 (6) 1/2 (12) 12,000 208/230v - 1ph 60hz 1/4 (6) 5/8 (16) 18,000 208/230v - 1ph 60hz 1/4 (6) 5/8 (16) 24,000 208/230v - 1ph 60hz... -
Page 6: Suggested Tools
SUGGESTED TOOLS • Standard Wrench • Adjustable/Crescent Wrench • Torque Wrench • Hex Keys or Allen Wrenches • Drill & Drill Bits • Hole Saw • Pipe Cutter • Screw drivers (Phillips & Flat blade) • Manifold and Gauges • Level •... -
Page 7: Installation Schematic
Installation Schematic Air inlet Indoor unit Air outlet Installation Components* 1. Front Panel 2. Aux. Button 3. Filter 4. Horizontal Louver 5. Remote Controller 6. Inter-Connecting Wire 7. Drain Hose 8. Refrigerant Lines * Not all items included with Air inlet equipment purchase Outdoor unit Air outlet... -
Page 8: Installation Site Instructions
INSTALLATION SITE INSTRUCTIONS Indoor Unit Select a site that allows for the following: 1. Ensure the installation complies with the installation minimum dimensions (defined below) and meets the minimum and maximum connecting piping length and maximum change in elevation as defined in the System Requirements section. 2. - Page 9 INSTALLATION SITE INSTRUCTIONS Outdoor Unit Select a site that allows for the following: 1. Outdoor location meets all minimum installation clearances defined below. 2. Sound from outdoor unit will not annoy neighbors. 3. All connections can be easily made to indoor unit. 4.
-
Page 10: Indoor Unit Installation
INDOOR UNIT INSTALLATION INDOOR UNIT DIMENSIONS in (mm) Model 33.4 11.4 SC-09WGLD-HP230 (848) (290) (208) 33.4 11.4 SC-12WGLD-HP230 (848) (290) (208) 38.2 11.8 SC-18WGLD-HP230 (970) (300) (224) 42.4 12.8 SC-24WGLD-HP230 (1077) (325) (246) 53.1 12.8 SC-36WGLD-HP230 (1349) (325) (254) Installation of Mounting Bracket 1. - Page 11 INDOOR UNIT INSTALLATION Mounting Bracket Diagrams and Dimensions 9,000 and 12,000 Units 7 1/4 2 1/4 2 1/4 1 1/2 1 1/2 7 1/2 5 1/2 18,000 Unit 8 1/9 7 3/8 2 3/4 2 3/4 1 5/8 1 5/8 3 1/8 24,000 Unit 13 3/4...
-
Page 12: Outdoor Unit Installation
OUTDOOR UNIT INSTALLATION Outdoor Unit Dimensions OUTDOOR UNIT DIMENSIONS in (mm) Model 33.4 21.3 11.3 21.3 12.6 SC-09ZGLD-HP230 (537) (285) (537) (842) (318) 33.4 21.3 11.3 21.3 12.6 SC-12ZGLD-HP230 (842) (537) (285) (537) (318) 37.6 14.3 27.6 15.6 SC-18ZGLD-HP230 (948) (554) (360) (696) - Page 13 OUTDOOR UNIT INSTALLATION Ground Pad or Wall Hangers Installation 1. Determine proper location for outdoor unit. 2. Follow all instructions provided by manufacturer for installing wall hangers or ground pad. 3. Verify the wall hangers or ground pad can safely support the weight of the outdoor unit. 4.
-
Page 14: Piping Installation
PIPING INSTALLATION Refrigerant Piping Drill Hole in Wall If indoor unit refrigerant piping is going to exit from the rear: 1. It is recommended that the refrigerant pipe flare connectors extend through the wall to the outside. In some situations field-fabricated piping extensions will be required to extend the indoor unit refrigerant flare connections to the outside of the wall. - Page 15 PIPING INSTALLATION Refrigerant Piping C UTION Use refrigeration grade piping ONLY. Uses of other piping will void the Manufacturer’s Warranty. Piping Preparation: 1. Do not open service valves or remove protective caps on pipes until all connections are made. 2. Keep tubing free of dirt, sand, moisture and contaminants. 3.
- Page 16 PIPING INSTALLATION Refrigerant Piping Piping Connections to Indoor Unit (con’t): 4. Properly align piping and tighten flare nut using a standard wrench and a torque wrench as shown in figure to the below. Carefully tighten flare nuts to correct torque level referring to the Torque Table on page 15.
- Page 17 PIPING INSTALLATION How to Relocate Drain Hose from Left to Right Side (if required) 1. Locate drain plug on right side of the drain tray. Firmly grab it and remove from drain tray. Left Right 2. Locate drain tube on the left side of drain tray. Twist drain tube counter-clockwise and gently pull to remove from the drain tray.
-
Page 18: Power And Wiring Installation
POWER AND WIRING INSTALLATION System Wiring Diagrams Indoor Unit Outdoor Unit 9,000 and 12,000 BtuH (230V Models) 18,000 and 24,000 BtuH (230V Models) 36,000 BtuH (230V Models) - Page 19 POWER AND WIRING INSTALLATION Indoor Unit Wire Connections W RNING Disconnect all electrical power to indoor and outdoor units including disconnects, fuses and circuit breakers. Lockout and tag all disconnect switches. 1. Open front cover of indoor unit and remove field wiring terminal block cover. 2.
- Page 20 POWER AND WIRING INSTALLATION Outdoor Unit Wire Connections Disconnect all electrical power to unit including disconnects, fuses and circuit breakers. Lockout and tag all disconnect switches. 1. Remove the service panel on right side of the outdoor unit. 2. Insert interconnecting wires and main power wires through the wire holes on conduit mounting bracket.
-
Page 21: Testing And Inspection
TESTING AND INSPECTION Leaking Test 1. Connect regulated nitrogen to manifold. Attach hose to service port. 2. Open manifold valve to add nitrogen to a pressure of 500 lbs. 3. Maintain applied pressure for 30 minutes, leak-test flare fittings with soap bubbles. If no leak is detected, release nitrogen. - Page 22 TESTING AND INSPECTION Vacuum Procedure (con’t) 7. Confirm that manifold valves are closed and disconnect the vacuum pump. 8. Open the service valves to the fully ‘back-seat’ position to let the refrigerant flow to the indoor unit and balance the pressure in system. Important: Do not allow air to enter the connection pipe when removing the hose.
- Page 23 TESTING AND INSPECTION Outdoor Oil Return Bend Oil return bend When the outdoor unit is more than 30 feet above the indoor unit, an oil return bend must be added for every 20 feet of connection pipe. Indoor Oil return bend Condensate Drain Pipe Testing Carefully and slowly add 8-10 ounces of water to the indoor unit drain pan.
-
Page 24: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE/SOLUTION System does not restart. Cause: The system has a built-in three-minute delay to prevent short and/or rapid cycling of the compressor. Solution: Wait three minutes for the protection delay to expire. Indoor unit emits unpleasant odor Cause: Typically unpleasant odors are the result of mold or mildew forming on when started the coil surfaces or the air filter. - Page 25 TROUBLESHOOTING PROBLEM CAUSE/SOLUTION Water leaking from the indoor Cause: While it is normal for the system to generate condensate water in cooling unit into the room. mode, it is designed to drain this water via a condensate drain system to a safe location. Solution: If water is leaking into the room, it may indicate one of the following.
-
Page 26: Diagnostic Codes
DIAGNOSTIC CODES Troubleshooting The ACiQ System has onboard diagnostics. The outdoor unit will provide status indicators. The indoor wall unit and remote controller will display error codes. The following is a sum-mary of the codes with explanation: Indoor Unit Outdoor Unit Indicators... - Page 27 DIAGNOSTIC CODES Outdoor Unit Indicators Indoor Unit Malfunction Name Possible Causes Display Yellow Indoor Ambient Temperature 1) Loose or bad connection between sensor and control board. Sensor Malfunction 2) Indoor ambient temperature sensor damaged. 3) Control board malfunction. Indoor Coil Temperature 1) Loose or bad connection between sensor and control board.
- Page 28 DIAGNOSTIC CODES Outdoor Unit Indicators Indoor Unit Malfunction Name Possible Causes Display Yellow IPM Module Protection 1) IPM module over heating. 4 flashes 2) Improper or Low voltage at the IPM module. 3) IPM module malfunction. 1 sec Off Indoor DC Fan Motor 1) Loose connections between fan motor and control board Malfunction 2) Fan motor or blower wheel bearings malfunction.
-
Page 29: Care And Cleaning
CARE AND CLEANING W RNING Take notice of the following items before cleaning the ACiQ Indoor wall unit. • To avoid electric shock or injury, do not attempt to clean the unit unless it has been turned off and disconnected from the main power supply. - Page 30 ACiQ system. 4. Once the faulty part(s) are sent to ACiQ, they will be tested to ensure the issue is a result of a factory fault. If the part(s) are deemed faulty, the amount paid for the part will be reimbursed.
- Page 31 7. All ACiQ equipment must be operated following the equipment's designated owner's manual and cannot be misused. 8. All ACiQ equipment must have an intact faceplate with its specifications, model number, and serial number still legible. If the equipment is not in this condition, both the standard and extended warranties are void.
- Page 32 3. Class-Arbitration Waiver: Arbitration is handled on an individual basis and if a dispute is arbitrated, you and ACiQ expressly waive any right to participate as a class representative or class member on any class claim you may have against ACiQ or that ACiQ has against you.
