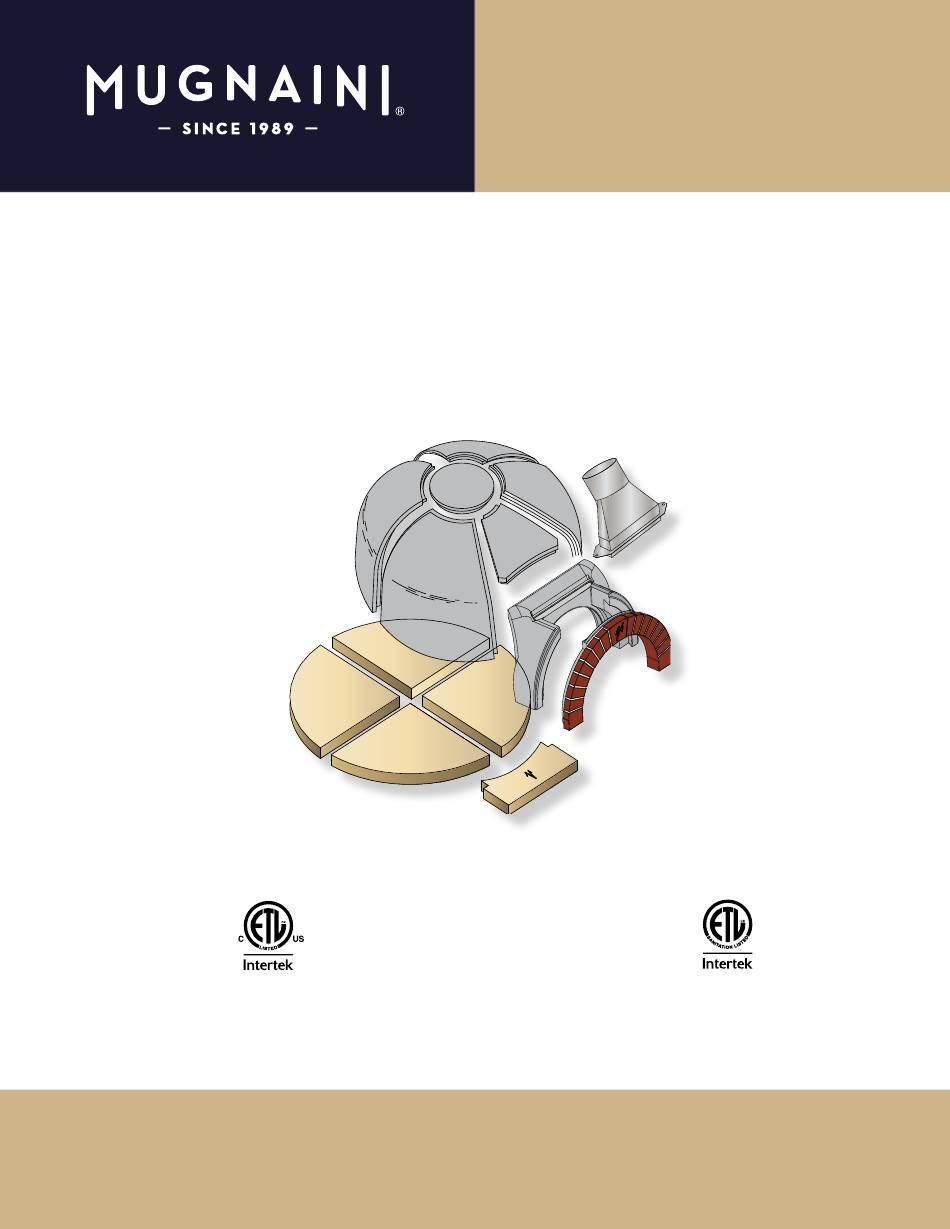

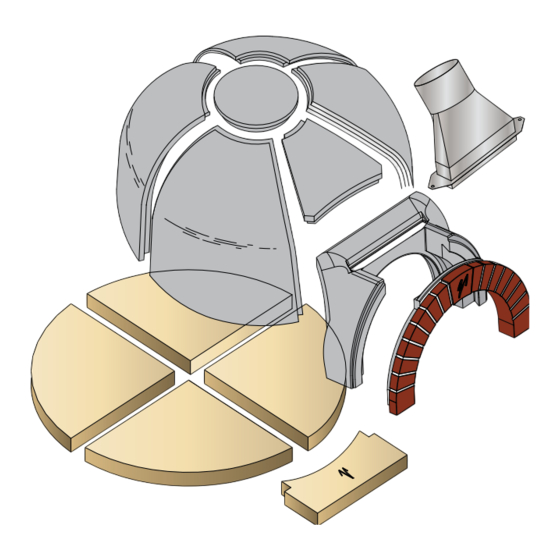

Masonry Assembled
MODEL: PRIMA 100 AOS
RESIDENTIAL WOOD FIRED OVEN
PRIMA 100 ASSEMBLY ON SITE/MASONRY
CONSTRUCTION MANUAL
I TA L I A N WO O D - F I R E D OV E N
Includes: Venting and Oven Curing Instructions
Mugnaini Residential Wood-Fired Ovens have been tested
to: UL 737–2007 / ULC S629
UL 737
ANSI-Z21.89
UL 737
ANSI-Z21.89
ANSI/NSF-4
ANSI/NSF-4
ULC S629
CAN/CGA-1.18
ULC S629
CAN/CGA-1.18
Mugnaini Imports, Inc. • 1530 Grove Street, Healdsburg, CA 95448
main: (707) 416-4106 • toll free: (888) 887-7206 • fax: (707) 857-7177
mugnaini.com • mugnaini@mugnaini.com
