Masonry Assembled

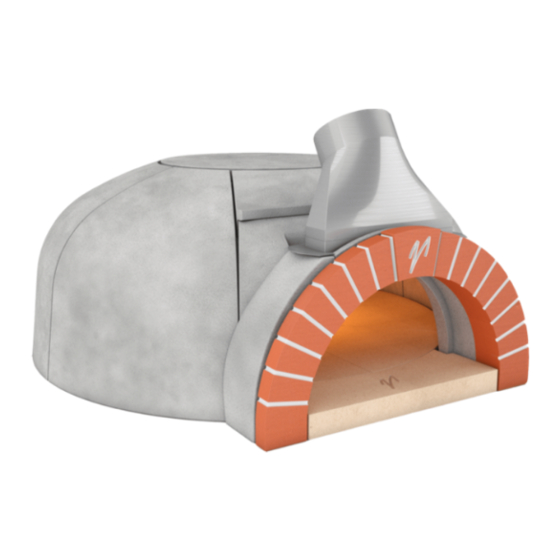

MODEL: COMMERCIAL 180 X 140 AOS
WOOD-FIRED OVEN

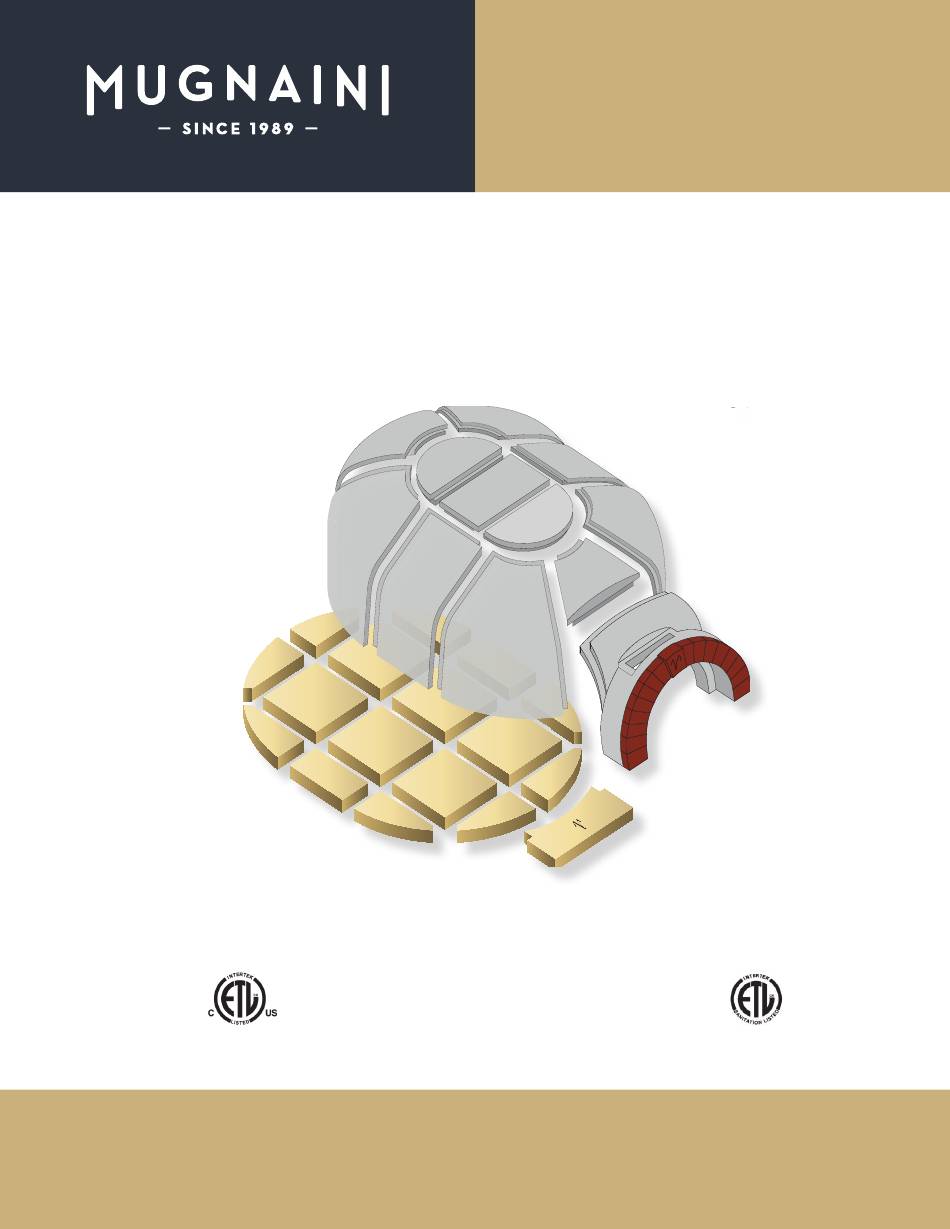

CO M M E R C I A L 180 x 140 A S S E M B LY O N
S I T E /M A S O N RY CO N S T R U C T I O N M A N UA L
W180 x 140 Oven
I TA L I A N WO O D - F I R E D OV E N
Includes: Venting and Oven Curing Instructions
Mugnaini Commercial Wood-Fired Ovens have been
tested to: UL 737–2007


Mugnaini Imports, Inc. • 1530 Grove Street, Healdsburg, CA 95448
main: (707) 416-4106 • toll free: (888) 887-7206 • fax: (707) 857-7177
mugnaini.com • mugnaini@mugnaini.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMMERCIAL 180 X 140 AOS and is the answer not in the manual?

Questions and answers

Related Manuals for Mugnaini COMMERCIAL 180 X 140 AOS

Summary of Contents for Mugnaini COMMERCIAL 180 X 140 AOS

  • Page 1 Includes: Venting and Oven Curing Instructions Mugnaini Commercial Wood-Fired Ovens have been tested to: UL 737–2007     Mugnaini Imports, Inc. • 1530 Grove Street, Healdsburg, CA 95448 main: (707) 416-4106 • toll free: (888) 887-7206 • fax: (707) 857-7177 mugnaini.com • mugnaini@mugnaini.com...
  • Page 2 For indoor installations, do not pack the required 1” air spaces with insulation or other material. Contact local building or fire officials concerning any installation restrictions or need for inspection of the oven installation. Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.

  • Page 3: Table Of Contents

    Using The Door ............................... 19 How to Measure Oven Temperature ....................... 19 Starting a Fire ................................19 Curing The Oven ..............................20 Curing Schedule ..............................23 6. LIMITED WARRANTY ............................... 24 Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.
  • Page 4 INTRODUCTION The following is intended to be used as a general reference for the installation of the Mugnaini Commercial 180 x 140 wood-burning oven, and more specifically for those individuals (like yourself, your architect, or W180 x 140 Oven your contractor) who will be involved with the design and the construction of your oven.
  • Page 5 5’9” in height. If elevation adjustments are desired, modify the height of the lower base only (the wood storage area). Contractor to verify height of final installation with the owner. (wood storage area) Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.
  • Page 6 (minimum--wider if preferred) as support for shelf. Pour a leveled 3” concrete slab on top of the rosin paper and sand base. Once cured, go to Section 3 — Oven Assembly. Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.

  • Page 7: Oven Assembly

    Note: Due to the handmade characteristics of this product, a 1/8” gap may exist between floor elements. DO NOT mortar or grout in between the floor element joints. The natural gap between floor elements is designed to allow for thermal expansion. Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.

  • Page 8: Step 3 - Crown Assembly

    DO NOT place mortar in the crown element joints. A small gap of roughly ¼”– ½” will also exist between the oven floor and crown elements. Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.

  • Page 9: Step 4 - Mortaring Crown Base

    STEP 5 – MORTARING CROWN JOINTS Wet sponge joints. Apply refractory mortar over the joints. (Approximately 4” wide x ½” thick over each joint). Do not allow mortar to enter joints. Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.

  • Page 10: Step 6 - Installing Flue Manifold

    Note: Ensure the flue manifold is level on top of crown elements. STEP 7 – INSULATION Cover the entire oven with 2-layers of 1” or 1-layer of 2” Thermal Insulation Blanket (Item O). Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.

  • Page 11: Step 8 - Oven Venting

    STEP 8 – OVEN VENTING Based on the overall oven design and architecture, each chimney system will vary. Contact your local licensed chimney or mechanical contractor. See pg. 12 for “Oven Venting Instructions”. Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.
  • Page 12 ENCLOSING THE OVEN Your Mugnaini Oven is now ready for the final step of the construction process – which relies entirely on your level of creativity and desired architectural effect. The oven enclosure protects the oven from atmospheric moisture, supplies ventilation to the oven (so that condensation does not occur within the compartment), and retains the insulating materials placed over and around the oven crown itself.
  • Page 13 Place a 2” diameter metal weatherproof air vent on the back near the top of your structure. You may use nonflammable roofing materials of your choice. (e.g. Slate, Roof Tiles, Metal etc.) Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.
  • Page 14 @ 16” O.C. each way #4 dowels @ 16” O.C. #4 cont. footing to conc. block 4” aggregate base 12” min. DOME SECTION SAMPLE DIMENSIONS PRIMA 120 SECTION SAMPLE DIMENSIONS Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.
  • Page 15 Perlite granules. Place a 2” diameter metal weatherproof air vent on the back near the top of your structure at the chimney to prevent condensation within the oven enclosure. Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.
  • Page 16 NOTE: If placing the oven under an overhang or patio structure follow local Building Codes and Fire Marshall requirements for passing the chimney through combustible ceilings. Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.
  • Page 17 @ 16” O.C. each way #4 dowels @ 16” o.C. #4 cont. footing to conc. block 12” 4” aggregate base min. DOME SECTION SAMPLE DIMENSIONS PRIMA 120 DOME SECTION SAMPLE DIMENSIONS Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.

  • Page 18: Overview

    SINGLE WALL AND B-TYPE VENT PIPES ARE NOT ACCEPTABLE FOR THIS TYPE OF APPLIANCE! IT IS IMPORTANT FOR THE INSTALLER TO CONTACT THE LOCAL BUILDING OR FIRE INSPECTOR TO DETERMINE WHICH VENTING METHOD IS ACCEPTABLE. Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.
  • Page 19 DIRECT VENTING WITH FACTORY BUILT CHIMNEY Direct Vent Requirements Using Factory Built Chimneys • Oven installations utilizing direct vent insulated chimneys must comply with UL 737 and NFPA 96 • DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE •...
  • Page 20 DIRECT VENTING WITH FACTORY BUILT GREASE DUCT Direct Vent Requirements Using Factory Built Grease Duct • Oven installations utilizing direct vent grease duct must comply with NFPA 96 • DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE •...

  • Page 21: Indirect

    INDIRECT VENTING Indirect Venting Requirements • DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE • Oven installations using indirect venting require a Type 1 Hood listed to UL 710 • The hood shall allow adequate clearance for removal and cleaning of the grease baffles (Captive Aire model SND is a low profile hood that enhances access) •...
  • Page 22 29 3/4” 60 1/2” 30° 63 1/8” 48“+ 9” 31 1/4” 30° 48“+ 12” 32 3/4” 65 3/4” 30° 71” 48“+ 18” 35 3/4” 30° 48“+ 24” 38 3/4” 76” 30° Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.
  • Page 23 CURING YOUR MUGNAINI WOOD-FIRED OVEN This manual covers the following Mugnaini series models: 180×140 AOS READ ALL INSTRUCTIONS BEFORE STARTING A FIRE AND CURING YOUR OVEN FOR USE WITH SOLID WOOD FUEL ONLY WARNING FOLLOW THE COMPLETE CURING SCHEDULE BEFORE COOKING IN THIS OVEN.

  • Page 24: Instructions

    OVEN CURING INSTRUCTIONS Your Mugnaini wood-fired oven is made from Refrattari Cotto or refractory clay. The water used to form the clay must be cooked out before your oven can be put into use. Curing is the process of slowly heating an oven to first drive out the moisture from the oven components and surrounding mass, and then to temper the oven dome.

  • Page 25: Using The Door

    HOW TO MEASURE OVEN TEMPERATURE Mugnaini wood-fired ovens will self regulate based on the size of the flame and the floor temperature. We measure temperature inside a wood-fired oven with an infrared thermometer for accuracy. By checking the floor temperature, using visual cues and flame size we can create distinct repeatable oven environments for different styles of cooking.

  • Page 26: Starting A Fire

    Prior to starting the next fire, open the door slowly and measure the temperature of the sides of the dome paying attention to use the same spot each time you measure. Average left and right side temperatures and record on the chart. Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.
  • Page 27 After the fire goes out, place the door through the arch into the fully closed position. The door should stay in place unit the next day’s fire. 100 PA 120 PA 140 PA 180 PA 180 PA ♦ ♦ ♦ Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.
  • Page 28 IF FLAMES EXTEND BEYOND THE OVEN DOOR OPENING AND UP THE EXHAUST FLUE – YOU ARE OVER FIRING THE OVEN. CONGRATULATIONS —you have fully cured your pizza oven! You can now fire your oven as per the operating instructions and start cooking. Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.
  • Page 29 Use the metal peel to shovel the ashes out of the oven. TECHNICAL ASSISTANCE We want your experience to be rewarding. Please call the office at 888.887.7206 if you have any questions or need help understanding these steps. Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.

  • Page 30: Curing Schedule

    DAY 1 DAY 2 Time Temperature Time Temperature Target 250° maximum Target 400° maximum DAY 3 DAY 4 Time Temperature Time Temperature Target 600° maximum Target Burn off all soot Commercial 180 x 140 Wood AOS Manual Mugnaini Imports, Inc.

  • Page 31: Limited Warranty

    Oven, related equipment, and accessories; To any Oven, or related equipment or accessory, that is improperly installed or maintained; To products resold in other than Mugnaini original packaging or to Ovens modified or altered by the Original Purchaser;...
  • Page 32 Warranty Period by Mugnaini or its authorized representative. Any and all rights under this warranty or at law of Original Purchaser against Mugnaini shall terminate and be void in the event Warranty Claims are not submitted within the time set forth in the immediately preceding sentence. Such Warranty Claims must be in writing and include the Oven type, the model and serial number of the Oven, the purchase date and a full description of the circumstances giving rise to the Warranty Claim.
  • Page 33 Original Purchaser can be reached. Mugnaini will review each notice and respond to the Original Purchaser in an effort to settle such dispute. Under federal law, no lawsuit may be initiated unless and until the dispute settlement procedures outlined in this warranty have been exhausted.
