ASSEMBLY INSTRUCTIONS
MODEL S8U
DO NOT TIGHTEN THE SCREWS UNTIL OUR INSTRUCTION NOTICES YOU TO DO SO
Contact Us!
Let Us Serve You Before You Return This Product!
Contact our friendly customer service team first for help
mrironstone@hotmail.com
www.mr-ironstone.com
Helpful Hints
PEOPLE NEEDED FOR ASSEMBLY:1-2
ESTIMATED ASSEMBLY TIME:0.5-1 HOUR
1
Advertisement
Table of Contents
Related Manuals for Mr IRONSTONE S8U
Summary of Contents for Mr IRONSTONE S8U
- Page 1 Mr IRONSTONE FURNITURE GYS8U-V1.1-20220706 Mr IRONSTONE is a Trademark of GG home&Beyond,Inc ASSEMBLY INSTRUCTIONS MODEL S8U DO NOT TIGHTEN THE SCREWS UNTIL OUR INSTRUCTION NOTICES YOU TO DO SO Contact Us! Let Us Serve You Before You Return This Product! Contact our friendly customer service team first for help...
-
Page 2: Assembly Overview

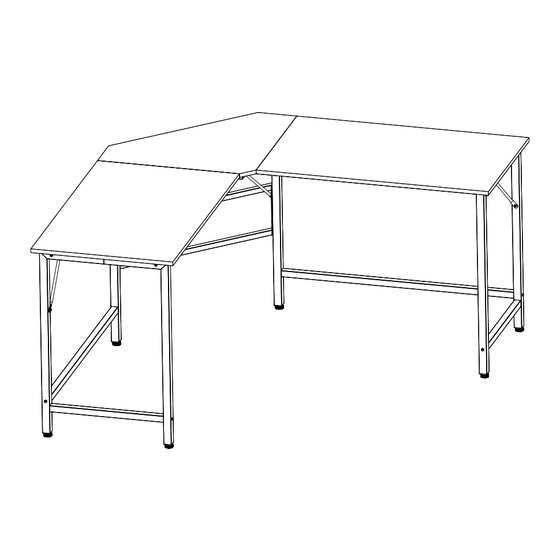

ASSEMBLY OVERVIEW... -
Page 3: Parts List
PARTS LIST THE PART NUMBER CAN BE FOUND ON THE SIDE OF THE PART, EITHER STAMPED OR ON A STICKER ITEMS ARE NOT SHOWN TO SCALE. IF THERE ARE ANY MISSING PARTS OR DAMAGED PARTS, PLEASE EMAIL US AT mrironstone@hotmail.com FIRST FOR HELP DESCRIPTON Leg Frame... - Page 4 PARTS LIST EXTRA HARDWARE INCLUDED FOR YOUR CONVENIENCE ITEMS ARE NOT SHOWN TO SCALE. DESCRIPTON Short Support Bar Connec�ng Bar Horizontal Bar Desktop Board Corner Board HARDWARE ① M6X40mm READ THE INSTRUCTION MANUAL BEFORE ASSEMBLING -OPEN THE HARDWARE AS NEEDED ②...
- Page 5 ASSEMBLY INSTRUCTIONS (S8U) STEP 1 A�ach Bar (I) to the Leg Frame (B) and Leg Frame (F) with two Screws ②. ②X2 WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to do so may result in collapsing the tubing.
- Page 6 ASSEMBLY INSTRUCTIONS (S8U) STEP 2 A�ach Horizontal Bar (N) and Lower Bar (H) to the Leg Frame (B) and Leg Frame (D) with Screws ②. A�en�on: please make sure the Horizontal Bar (N) are in the right direc�on. ②X4 A�en�on: please make sure the Horizontal Bar (N) are in the right direc�on.
- Page 7 ASSEMBLY INSTRUCTIONS (S8U) STEP 3 A�ach Upper Bar (G) to the Leg Frame (F) and Connec�ng Bar (M) with Screw ②. ②X1 WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to do so may result in collapsing the tubing.
- Page 8 ASSEMBLY INSTRUCTIONS (S8U) STEP 4 A�ach Short Support Bar (L) with Screws ②. ②X2 WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to do so may result in collapsing the tubing.
- Page 9 ASSEMBLY INSTRUCTIONS (S8U) STEP 5 A�ach Middle Bar (J) and Long Support Bar (K) to the the Leg Frame (C) and (D), and Connec�ng Bar (M) with Screws ②. ②X5 WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to...
- Page 10 ASSEMBLY INSTRUCTIONS (S8U) STEP 6 A�ach Bar (I) to the Leg Frame (A) and Leg Frame (E) with two Screws ②. ②X2 WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to do so may result in collapsing the tubing.
- Page 11 ASSEMBLY INSTRUCTIONS (S8U) STEP 7 A�ach Horizontal Bar (N) and Lower Bar (H) to the Leg Frame (A) and Leg Frame (C) with Screws ②. A�en�on: please make sure the Horizontal Bar (N) are in the right direc�on. ②X4 A�en�on: please make sure the Horizontal Bar (N) are in the right direc�on.
- Page 12 ASSEMBLY INSTRUCTIONS (S8U) STEP 8 A�ach Upper Bar (G) to the Leg Frame (E) and Connec�ng Bar (M) with Screws ②. ②X2 WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to do so may result in collapsing the tubing.
- Page 13 ASSEMBLY INSTRUCTIONS (S8U) STEP 9 A�ach Short Support Bar (L) with Screws ②. Then, �ghten all screws to 100% �ghtness. ②X2 ⑦X1 WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to do so may result in collapsing the tubing.
- Page 14 ASSEMBLY INSTRUCTIONS (S8U) STEP 10 First, turn two Desktop Boards (O) and Corner Board (P) upside down on a flat ground; Secondly, insertng Six Wood Dowels ⑥ into each side of the Corner Board (P); Then a�ach two Desktop Boards (O) in parallel to the Corner Board (P).
- Page 15 ASSEMBLY INSTRUCTIONS (S8U) STEP 11 Fix Desktop Boards (O) and Corner Board (P) with eight Screws ③ and Four Washers ④ and �ghten the screws to 50% �ghtness. ③X8 ④X4 ⑦X1 WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to...
- Page 16 ASSEMBLY INSTRUCTIONS (S8U) STEP 12 Fix Desktop Boards (O) and Corner Board (P) with Screws ① and �ghten the screws to 50% �ghtness. ①X7 ⑦X1 WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to do so may result in collapsing the tubing.
- Page 17 ASSEMBLY INSTRUCTIONS (S8U) STEP 13 Please make sure Desktop Boards (O) and Corner Board (P) are seamless and properly matched before �ghtening screws to 100% �ghtness as shown below. ⑦X1 100% 100% 100% ATTENTION: Please make sure Desktop Boards (O) and Corner...
- Page 18 ASSEMBLY INSTRUCTIONS (S8U) STEP 14 A�ach Six Feet ⑤ to the Leg Frames. ⑤X6 ATTENTION: Please make sure that all screws are 100% �ghtened.
- Page 19 ASSEMBLY INSTRUCTIONS (S8U) STEP 15 CONGRATULATIONS! Assembling complete! Please make sure that all the screws are 100% �ghtened. ATTENTION: IF YOU ENCOUNTER ANY PROBLEMS DURING ASSEMBLING, PLEASE FEEL FREE TO CONTACT US. ATTENTION: Please make sure that all screws are 100% �ghtened.
-
