Mr IRONSTONE FURNITURE
TM
GYLD05-V1.1-20220117
Mr IRONSTONE is a Trademark of GG home&Beyond,Inc
ASSEMBLY INSTRUCTIONS
MODEL LD05
DO NOT TIGHTEN THE SCREWS UNTIL OUR INSTRUCTION NOTICES YOU TO DO SO
Contact Us!
Let Us Serve You Before You Return This Product!
Contact our friendly customer service team first for help
mrironstone@hotmail.com
www.mr-ironstone.com
Helpful Hints
PEOPLE NEEDED FOR ASSEMBLY:1-2
ESTIMATED ASSEMBLY TIME:0.5-1 HOUR
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LD05 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mr IRONSTONE LD05

  • Page 1 Mr IRONSTONE FURNITURE GYLD05-V1.1-20220117 Mr IRONSTONE is a Trademark of GG home&Beyond,Inc ASSEMBLY INSTRUCTIONS MODEL LD05 DO NOT TIGHTEN THE SCREWS UNTIL OUR INSTRUCTION NOTICES YOU TO DO SO Contact Us! Let Us Serve You Before You Return This Product! Contact our friendly customer service team first for help...
  • Page 2: Assembly Overview

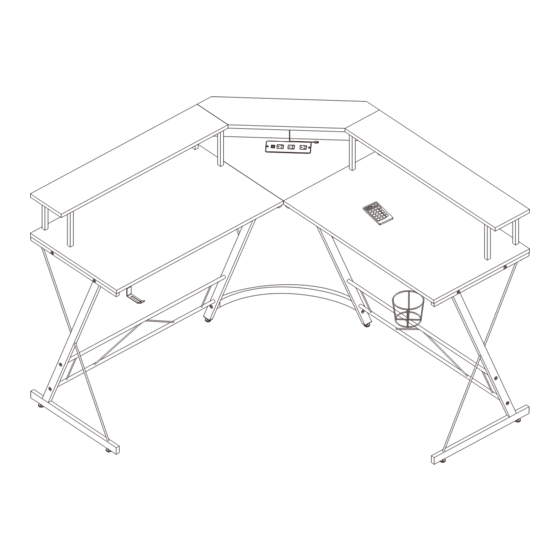

    ASSEMBLY OVERVIEW ⑦ ⑦ ⑦ ⑦ ⑦ ⑦...
  • Page 3: Parts List

    PARTS LIST THE PART NUMBER CAN BE FOUND ON THE SIDE OF THE PART, EITHER STAMPED OR ON A STICKER ITEMS ARE NOT SHOWN TO SCALE. IF THERE ARE ANY MISSING PARTS OR DAMAGED PARTS, PLEASE EMAIL US AT mrironstone@hotmail.com FIRST FOR HELP DESCRIPTON Leg Frame...
  • Page 4 PARTS LIST EXTRA HARDWARE INCLUDED FOR YOUR CONVENIENCE ITEMS ARE NOT SHOWN TO SCALE. DESCRIPTON Middle Monitor Shelf Power Outlet LED Light& Remote Control HARDWARE ① M6X40mm ② M6X25mm READ THE INSTRUCTION MANUAL BEFORE ASSEMBLING -OPEN THE HARDWARE AS NEEDED -ASSEMBLE IN AN AREA WITH PLENTY OF SPACE -READ EACH STEP BEFORE BEGINNING CONSTRUCTION M6X12mm...
  • Page 5 ASSEMBLY INSTRUCTIONS (LD05) STEP 1 Lay down the Middle Desktop (N) back side up on the floor. A�ach Middle Frame (E) to Middle Desktop (N) using three Screws ② and �ghten the screws to 50% �ghtness. ②X3 ⑧X1 ② ②...
  • Page 6 ASSEMBLY INSTRUCTIONS (LD05) STEP 2 A�ach Desktop (L) and Desktop (M) to Middle Frame (E) using four Screws ② and �ghten the screws to 50% �ghtness. ⑧X1 ②X4 A�en�on: please make sure the Desktop (L) and Desktop (M) are in the right direc�on.
  • Page 7 ASSEMBLY INSTRUCTIONS (LD05) STEP 3 A�ach two Leg Frames (A) to Desktop (L) and (M) using four Screws ② and �ghten the screws to 50% �ghtness. AX2 ②X4 ⑧X1 ② ② ② ② WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to...
  • Page 8 ASSEMBLY INSTRUCTIONS (LD05) STEP 4 A�ach Leg Frames (B) to Middle Frame (E) using four Screws ① and �ghten the screws to 50% �ghtness. BX2 ①X4 ⑧X1 ① ① ① WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to...
  • Page 9 ASSEMBLY INSTRUCTIONS (LD05) STEP 5 A�ach four Upper Bars (K) to Middle Frames (E) and Leg Frames (A) using eight Screws ① and �ghten the screws to 50% �ghtness. ①X8 ⑧X1 ① ① ① ① WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to...
  • Page 10 ASSEMBLY INSTRUCTIONS (LD05) STEP 6 A�ach two Lower Frames (C) to Leg Frames (A) and Leg Frames (B) using eight Screws ① and �ghten the screws to 50% �ghtness. ①X8 ⑧X1 ① ① ① ① WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to...
  • Page 11 ASSEMBLY INSTRUCTIONS (LD05) STEP 7 Tighten the three Screws on Middle Desktop (N). ⑧X1 WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to do so may result in collapsing the tubing.
  • Page 12 STEP 8 Please make sure Desktop (L) and (M) and Middle Desktop (N) are seamless and properly matched before �ghtening screws as shown below. ⑧X1 WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to do so may result in collapsing the tubing.
  • Page 13 ASSEMBLY INSTRUCTIONS (LD05) STEP 9 A�ach Connec�on Frame (D) to Leg Frames (B) using two Screws ① and �ghten the screws to 50% �ghtness. ①X2 ⑧X1 ① ① WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to do so may result in collapsing the tubing.
  • Page 14 ASSEMBLY INSTRUCTIONS (LD05) STEP 10 1.A�ach six Feet ⑦ to Leg Frames (A) and (B) 2.Then a�ach Cup Holder (J) and Headphone Hook (I) to the Desktop (L) and (M) by using 4 screws ③ 3.Tighten all the screws as shown below to 100% �ghtness.
  • Page 15 ASSEMBLY INSTRUCTIONS (LD05) STEP 11 Then a�ach the Power Outlet (Q) to the Middle Desktop (N) by using 2 screws ④. ④X2 ⑨X1 ④ ④...
  • Page 16 ASSEMBLY INSTRUCTIONS (LD05) STEP 12 First, turn two Side Monitor Shelves (O) and Middle Monitor Shelf (P) upside down on a flat ground; Secondly, inser�ng four Wood Dowels ⑤ into each side of the Middle Monitor Shelf (P); Then a�ach two Side Monitor Shelves (O) in parallel to the Middle Monitor Shelf (P).
  • Page 17 ASSEMBLY INSTRUCTIONS (LD05) STEP 13 A�ach Connec�ng Bar (H) to the Middle Monitor Shelf (P) by using two screws ② to 50% �ghtness. ②X2 ⑧X1 ② ② WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to do so may result in collapsing the tubing.
  • Page 18 ASSEMBLY INSTRUCTIONS (LD05) STEP 14 A�ach two Middle Brackets (G) to the Side Monitor Shelves (O) by using four screws ② to 50% �ghtness and to the Connec�ng Bar (H) by using two screws ② to 50% �ghtness. ②X6 ⑧X1 ②...
  • Page 19 ASSEMBLY INSTRUCTIONS (LD05) STEP 15 Please make sure that the two Side Monitor Shelves (O) and the Middle Monitor Shelf (P) are seamless and properly matched, then �ghten these 8 screws to 100% �ghtness. ⑧X1 100% NOTICE: You can �ghten these 8 screws to 100% �ghtness a�er...
  • Page 20 ASSEMBLY INSTRUCTIONS (LD05) STEP 16 A�ach two Side Brackets (F) to the two Side Monitor Shelves (O) by using 4 screws ② to 50% �ghtness. ②X4 ⑧X1 ② ② WARNING: Do NO T Over-�ghten the Bolts/ Screws. Failure to do so may result in collapsing the tubing.
  • Page 21 ASSEMBLY INSTRUCTIONS (LD05) STEP 17 Tear off the s�cker of the light strip, and s�ck the Led light strip to the posi�on of the Desktop (L) and Desktop(M) as shown below. Then a�ach 6 Connec�ng Pieces ⑥ to the Desktop (L) and (M) and Middle Desktop (N) by using 12 screws ④...
  • Page 22 ASSEMBLY INSTRUCTIONS (LD05) STEP 18 Final step Turn upside down the whole Monitor Shelves and a�ach it to the Desktop by using 8 screws ① A�en�on: You can use the screws ① to assemble the Middle Brackets (G) first, and then assemble the Side Brackets (F).
  • Page 23 ASSEMBLY INSTRUCTIONS (LD05) STEP 19 CONGRATULATIONS! Assembling complete! Please make sure that all the screws are 100% �ghtened. ATTENTION: IF YOU ENCOUNTER ANY PROBLEMS DURING ASSEMBLING, PLEASE FEEL FREE TO CONTACT US FOR HELP! ④ ④...
  • Page 24: Safety And Maintenance

    This warranty does not cover the cost of transporta�on or labor. In no event shall Mr IRONSTONE be liable in either tort or contract for any loss or direct, special, incidental, consequen�al, or exemplary damages. This limited warranty does NOT apply to end-user customers for rental purposes.
