Summary of Contents for AGD SOLO

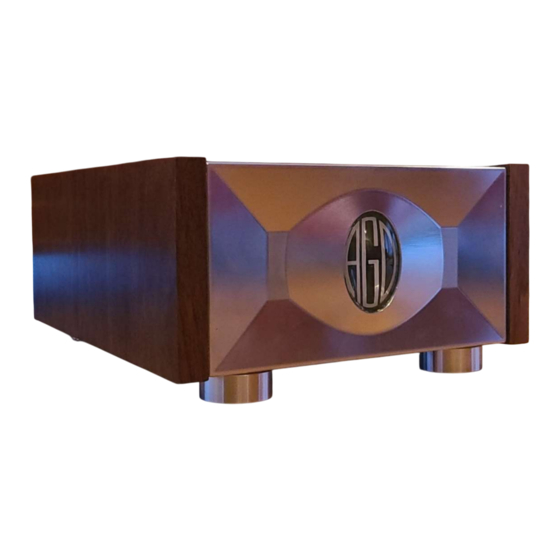

- Page 1 AGD Productions, Inc. AGD SOLO Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 1 of 20...
- Page 2 AGD Productions, Inc. AGD “SOLO” Mono-Block Amplifier With GaNSound Power Stage by AGD Productions, Inc. AGD SOLO Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 2 of 20...
- Page 3 UNCONTROLLED OUTDOOR CONDITIONS. BE CERTAIN TO INSTALL IT IN A SECURE LOCATION FROM WHICH IT CANNOT FALL OR TIP OVER. TIME SPENT FAMILIARIZING YOURSELF WITH THIS MANUAL WILL BE WELL REWARDED. AGD SOLO Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 3 of 20...
-
Page 4: Table Of Contents
Important Safety Instructions ........page 7. Product Introduction ............page 8. Specifications ..............page 9. Unpacking the AGD SOLO ..........page 9. Installation of the AGD SOLO ......... page 10. Back Panel Description ........... page 11. Installation ..............page 12. 10. Fault Conditions.............. page 15. -
Page 5: About This Document
This user manual is an integral part of the AGD “SOLO” and must be available and consulted prior to the installation of the equipment. AGD “SOLO” is designed to operate indoors and must be utilized uniquely for the scope of audio signal amplification within the specifications and conditions defined in the manual. -
Page 6: Letter From Agd Team
I have always been driven by my passion for merging perfection and beauty in the art of Audio reproduction. Hence, it is essential for all of us at AGD to thank you for choosing the AGD SOLO Monoblocks for your unique Hi-End audio experience. The AGD... -
Page 7: Important Safety Instructions
AGD Productions, Inc. Important safety instructions: READ ALL INSTRUCTIONS: All the safety and operating instructions of your AGD SOLO MONOBLOCK AMPLIFIER should be read before power is applied to the equipment. RETAIN OWNER'S MANUAL: These safety and operating instructions should be retained for future reference. -
Page 8: Product Introduction
The AGD “Solo” is rated 600W on 4ohm and is characterized by an outstanding >60A peak output driving capability. -
Page 9: Specifications
THD+N, 20Hz÷20KHz, 8Ω Bandwidth 0Hz÷80KHz 40kohm Input Impedance (600 Ohm upon request) Gain 23db Dynamic Range >120dB 14.5x11.25x6.5 inches Dimension (370x285x165mm) Weight 45lbs (20Kg) 110-240V, 50-60Hz Input Voltage (User selectable) AGD SOLO Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 9 of 20... - Page 10 AGD Productions, Inc. Unpacking All AGD products’ shipping boxes have been specially designed to protect their contents, and special care has been taken to prevent damage under normal shipping conditions. When unpacking your amplifier: • Mishandling should be evident upon inspection of the shipping container.
-
Page 11: Installation
Connect the source's cables to their appropriate inputs. • Connect your speakers using the binding posts on the center of the back panel. IMPORTANT: READ THE SECTIONS “BACK PANEL” AGD SOLO Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 11 of 20... - Page 12 AGD Productions, Inc. Back Panel The AGD “SOLO” back panel has the following features: ❶ Power entry module a. Plug the power cord securely before turning on the unit. b. Always unplug the unit from the wall outlet first. ❷ Fuse holder ❸...
- Page 13 AGD Productions, Inc. Each AGD SOLO is delivered with one 1.5mt. power cords. (US or UK or EU IEC standard plug). ❼ ❹ ⓫ ❸ ❷ ❽ ❿ ❾ -❻ ❺+ ❶ The power cord provided as standard with all AGD amplifiers is an audio-grade power cable manufactured and tested under specific stringent requirements.
- Page 14 9- Connect the source's cables to their appropriate inputs. 10- Connect your speakers using the binding posts. 11- Make sure to position the input selector on the correct connector of choice (XLR or RCA). AGD SOLO Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 14 of 20...
- Page 15 This push-button, if pressed again, will also place the unit on stand-by without the need to operate the main-power switch. ⓬ IMPORTANT: READ THE SECTIONS “BACK PANEL” AGD SOLO Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 15 of 20...
-
Page 16: Fault Conditions
You can turn it on again when it reaches a safe operating temperature. Please contact your retailer or installer for assistance if you cannot remedy a non-critical fault condition. AGD SOLO Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 16 of 20... -
Page 17: Trobleshooting
IF ALL ELSE FAILS… Contact your authorized AGD Productions, Inc. dealer and AGD Productions Customer Service at www.AGDproductions.com. AGD SOLO Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 17 of 20... - Page 18 AGD Productions, Inc. Fuse installation/replacement The AGD “SOLO” is configured to operate with the mains input voltage of any country, hence, i.e., 100/110V for USA and Japan, 220/240V for Europe, China, UK, and all other countries. The selection of the proper input voltage is done by setting the correct position of the Input Mains Voltage Selector ❿.
- Page 19 Directive: 2014/30/UE (EMC), 2014/35/UE (LVD), 2011/65/UE (RoHS) Los Angeles, May 20th, 2023 Alberto Guerra, President and CEO AGD Productions, Inc. ……………………………… AGD SOLO Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 19 of 20...
- Page 20 AGD Productions, Inc. Enjoy the music now! AGD SOLO Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 20 of 20...
