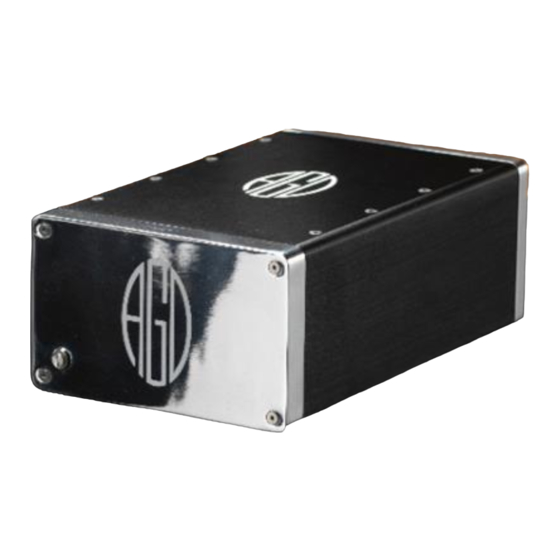

Mono-block power amplifier

Advertisement

Quick Links

AGD Productions, Inc.
AGD Duet Mono-block Power Amplifier Operating Manual_Rev1.0
Page. 1 of 20

Advertisement

loading
Need help?

Need help?

Do you have a question about the Duet and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AGD Duet

  • Page 1 AGD Productions, Inc. AGD Duet Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 1 of 20...
  • Page 2 AGD Productions, Inc. AGD “Duet” Mono-Block Amplifier With GaNSound Power Stage by AGD Productions, Inc. AGD Duet Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 2 of 20...
  • Page 3 UNCONTROLLED OUTDOOR CONDITIONS. BE CERTAIN TO INSTALL IT IN A SECURE LOCATION FROM WHICH IT CANNOT FALL OR TIP OVER. TIME SPENT FAMILIARIZING YOURSELF WITH THIS MANUAL WILL BE WELL REWARDED. AGD Duet Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 3 of 20...
  • Page 4: Table Of Contents

    Important Safety Instructions ........page 7. Product Introduction ............page 8. Specifications ..............page 9. Unpacking the AGD Duet ..........page 9. Installation of the AGD Duet .......... page 10. Back Panel Description ........... page 11. Installation ..............page 12. 10. Fault Conditions.............. page 15.
  • Page 5: About This Document

    This user manual is integral part of the AGD “Duet” and must be available and consulted prior the installation of the equipment. AGD “Duet” is designed to operate indoor and must be utilized uniquely for the scope of audio signal amplification within the specifications and conditions defined in the manual.
  • Page 6 I have always been driven by my passion to merge perfection and beauty in the art of Audio reproduction. Therefore, it is so important for all of us at AGD to thank you for choosing the AGD Duet Monoblocks for your unique Hi-End audio experience. The AGD Duet is one of the most advanced Hi-End Power Amplifier in the market.
  • Page 7: Important Safety Instructions

    AGD Productions, Inc. Important safety instructions: READ ALL INSTRUCTIONS: All the safety and operating instructions of your AGD VICACE MONOBLOCK AMPLIFIER should be read before power is applied to the equipment. RETAIN OWNER'S MANUAL: These safety and operating instructions should be retained for future reference.
  • Page 8: Product Introduction

    HV GaN MOSFET in the market today. The DUET also benefits of a new mother board with low noise linear supply rails and a superlative analog buffer stage. The DUET retains the feature of full upgradability of the GaNPower output stage module.
  • Page 9: Specifications

    Maximum Output Power at 0.1% 150W THD+N, 20Hz÷20KHz, 8Ω Bandwidth ±3dB 5Hz÷80KHz Input Impedance 40kohm Efficiency% >94% Gain 23db Dynamic Range >120dB 10x5.6x4.0in Dimension (254x142x100mm) Weight 8.25lbs (3.75kg) Input Voltage 110-240V, 50-60Hz AGD Duet Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 9 of 20...
  • Page 10 AGD Productions, Inc. Unpacking Unpacking All AGD products shipping boxes have been specially designed to protect their contents and special care has been taken to prevent damage under normal shipping conditions. When unpacking your amplifier: • Mishandling should be evident upon inspection of the shipping container.
  • Page 11: Installation

    Connect the source's cables to their appropriate inputs. • Connect your speakers using the binding posts on the center of the back panel. IMPORTANT: READ THE SECTIONS “BACK PANEL” AGD Duet Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 11 of 20...
  • Page 12 AGD Productions, Inc. Back Panel The AGD “Duet” back panel has the following features: ❶ Power entry module a. Plug the power cord securely before turning on the unit. b. Always unplug the unit from the wall outlet first. ❷ Fuse holder ❸...
  • Page 13 ❶ ❾ -❻ The AGD Duet is delivered with two 1.5mt. power cords. (US or UK or EU IEC standard plug. The power cord provided as standard with all AGD amplifiers is an Audio Grade power cable manufactured and tested under specific stringent requirements. If the customer decides...
  • Page 14 9- Connect the source's cables to their appropriate inputs. 10- Connect your speakers using the binding posts. 11- Make sure to have the input selector positioned on the correct connector of choice (XLR or RCA). AGD Duet Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 14 of 20...
  • Page 15 13- Push the button ❿ on the front panel, a LED will illuminate the logo. This push-button, if pressed again, will also place the unit in stand-by without the need to operate the main-power switch. IMPORTANT: READ THE SECTIONS “BACK PANEL” ❿ AGD Duet Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 15 of 20...
  • Page 16: Fault Conditions

    When it reaches a safe operating temperature, you will be able to turn it on again. If you are unable to remedy a non-critical fault condition, please contact your retailer or installer for assistance. AGD Duet Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 16 of 20...
  • Page 17 IF ALL ELSE FAILS… Contact your authorized AGD Productions, Inc. Dealer and/or contact AGD Productions Customer Service at www.AGDproductions.com. AGD Duet Mono-block Power Amplifier Operating Manual_Rev1.0...
  • Page 18 AGD Productions, Inc. Fuse installation/replacement The AGD “Duet” is configured to operate with the mains input voltage of any country, hence i.e., 100/110V for USA and Japan, 220/240V for Europe, China, UK, and all other countries. The main power switch entry module also contains the fuse holder, and it is easily accessible by opening the plastic cover that holds it as shown in the following picture.
  • Page 19 Directive: 2014/30/UE (EMC), 2014/35/UE (LVD), 2011/65/UE (RoHS) Los Angeles, May 20th, 2023 Alberto Guerra, President and CEO AGD Productions, Inc. ……………………………… AGD Duet Mono-block Power Amplifier Operating Manual_Rev1.0 Page. 19 of 20...
