Summary of Contents for DISCOVER AES RACKMOUNT

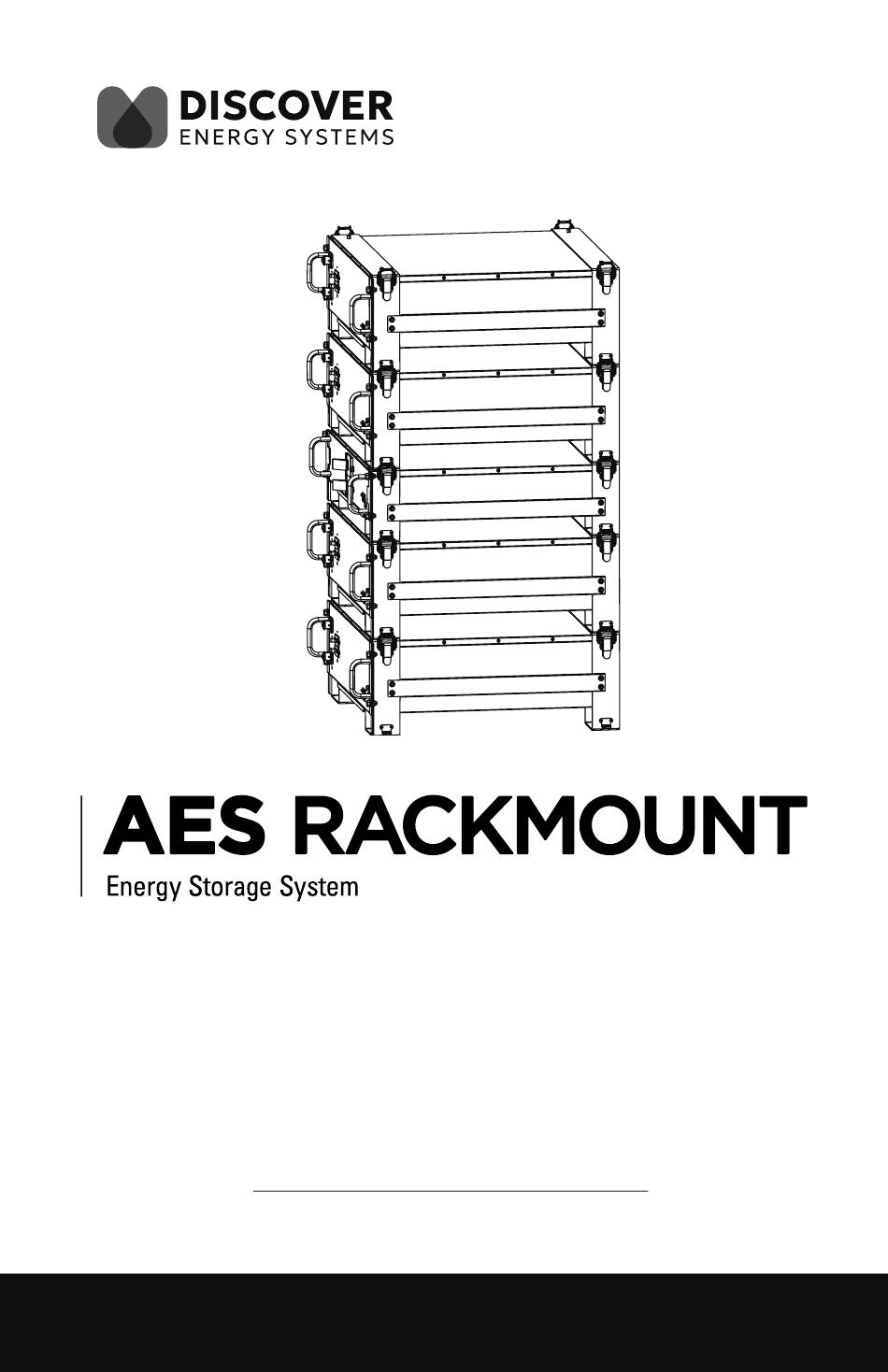

  • Page 1 AES RACKMOUNT Quick Stack Rack Manual READ AND SAVE THESE INSTRUCTIONS Quick Stack Rack 950-0050 805-0056 REV E...
  • Page 2: Table Of Contents

    INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1 .
  • Page 3: Introduction

    INTRODUCTION The AES RACKMOUNT Quick Stack Rack is designed for indoor use with AES RACKMOUNT Battery Modules and with the AES RACKMOUNT Battery Module Combiner to create an open stacking system containing up to six Battery Modules and one Battery Module Combiner. 1. AUDIENCE, WARNINGS, MESSAGES, GENERAL SAFETY, PERSONAL PROTECTIVE EQUIPMENT 1.1 Audience Configuration, installation, service, and operating tasks should only be performed by qualified personnel in consultation with local authorities having jurisdiction and authorized dealers. Qualified personnel should have training, knowledge, and experience in the: • Installation of electrical equipment • Application of electrical codes, safety and installation standards • Analysis and reduction of hazards involved in performing electrical work • Installation and configuration of batteries 1.2 Warning, Caution, Notice, and Note Messages Messages in this manual are formatted according to this structure .
  • Page 4: Safe Handling Procedures

    Ad hoc information concerning important procedures and features unrelated to personal injury or equipment damage. 1.3 Safe Handling Procedures Before using the AES RACKMOUNT Quick Stack Rack with AES RACKMOUNT Battery Modules and AES RACKMOUNT Battery Combiner Modules, read all instructions and cautionary markings on the units and all appropriate sections of this manual. • Use personal protective equipment when working with the Quick Stack Rack and Battery Modules. • Dispose of or recycle a Quick Stack Rack following local regulations. • Do not modify, re-manufacture, or attempt to insert foreign objects into the Quick Stack Rack, immerse or expose the Quick Stack Rack to water or other liquids, fire, explosion, or other hazards. • Use the Quick Stack Rack only with the AES RACKMOUNT Battery Combiner, Battery Modules, or with batteries that Discover Energy Systems specifies as compatible. • Do not lift or carry while in operation. • Take precautions when handling electrical cables. • Do not submerge the Battery Modules or Battery Module Combiner. • Do not install the Battery Module or Battery Module Combiner with the faceplate down. • Do not use the Battery Module Combiner with Battery Modules or a Power Conversion system that exceeds the specifications of the Battery Module Combiner. Using Battery Modules or a Power Conversion system that exceeds breaker, cable, and fuse specifications may present a fire risk or other hazards. • Do not short-circuit a Battery Module or Battery Module Combiner or allow metallic conductive objects to contact cable ends and terminals. • Do not drop the Battery Module or the Battery Module Combiner.
  • Page 5: Items Shipped In The Box

    2. ITEMS SHIPPED IN THE BOX The Quick Stack Rack is designed for use with the AES RACKMOUNT Battery Module and Battery Module Combiner. Use the Quick Stack Rack to stack a maximum of six Battery Modules plus one battery combiner. Table 2.1, AES RACKMOUNT Quick Stack Rack contents ITEMS DESCRIPTION Front End bracket Back End bracket Side Arm Side Arm Nut (M4) Mounting Screw (M6) 1 set Spares: Mounting Screw (2), Side Arm Nut (2) 3. SPECIFICATIONS 3.1 Mechanical Specifications 50 mm 446 mm (17.6 in) (2.0 in)
  • Page 6: Environment

    Mechanical Specifications AES RACKMOUNT Quick Stack Rack (3U) 950-00050 One Assembled Quick Stack Rack without Battery Module Combiner or Battery Module Height 179 . 0 mm (7 . 0 5 inch) Width 480 . 6 mm (18 . 9 inch) Depth 462 .
  • Page 7: System Overview And Configuration

    4. SYSTEM OVERVIEW AND CONFIGURATION The Quick Stack Rack can hold up to six AES RACKMOUNT Battery Modules and an AES RACKMOUNT Battery Module Combiner.    Figure 2. Quick Stack Racks with 6 Battery Modules and 1 Battery Module Combiner Item Description Up to 6 Battery Modules (not included) Battery Module Combiner (not included) 7 sets of Quick Stack Racks...
  • Page 8: Minimum Specifications For Aes Rackmount Battery Energy Storage Systems

    4.1 Minimum Specifications for AES RACKMOUNT Battery Energy Storage Systems To increase system capacity, install AES RACKMOUNT Battery Modules in a parallel battery bank configuration. Overall battery energy storage system capacity must be correctly sized to meet the requirements of the load and account for the following: • Total Continuous Charge Current • Total Peak Current • Total Continuous Discharge Current The total charging capacity of all charging sources in the system should not exceed the Continuous Charge Current operating limit of all the Battery Modules in the system or the limits on the Battery Module Combiner. Exceeding one of these limits will cause either the BMS in the Battery Modules to trigger over-current protection and disconnect or trip the breaker on the Battery Module Combiner. The charging system's maximum Continuous Charge Current must either be below the operating limit of installed Battery Modules or curtailed . The sum of all the Peak Current values for the attached loads must be less than the Peak Current value of the BESS, including inrush current values for any motors and surge values for any inverters.
  • Page 9: Quick Stack Rack Assembly

    Table 4-1, 48-48-5120 / 48-48-5120-H DC Capacity Values for a Sample Battery Energy Storage System Specifications @ 25 °C (77 °F) Peak Part Parallel Continuous Continuous Continuous Continuous Usable Current Number System Discharge Discharge Charge Charge Capacity (3 seconds) (1 hour) (1 hour) (1)(2) (1)(2) 1 Battery 950-0050_1 218 A...
  • Page 10: Attaching The Brackets And Side Arms Onto The Battery Module

    5.2 Attaching the Brackets and Side Arms onto the Battery Module Assemble a single Quick Stack Rack and lower the AES RACKMOUNT battery module into the front opening . 1 . Line up the holes of the Side Arms with the screw thread ends protruding from the Front End Bracket and Back End Bracket . Figure 3. Quick Stack Rack Assembly 2 . Screw on the M4 nuts (torque 2.5 to 3 Nm [1.85 to 2.2 ft-lbs]) to secure the Side Arms to the Front End Bracket and Back End Bracket . Once the single Quick Stack Rack is constructed, flip it vertically so the Back End Bracket is on the ground .
  • Page 11: Attaching The Brackets And Side Arms Onto The Battery Module Combiner

    3 . Using a two-person lift, slowly lower the Battery Module through the Front End Bracket and then through the Back End Bracket . 4 . Secure the side flanges of the AES RACKMOUNT Battery Module to the Front End Bracket using the mounting screws that came with the Battery Module (torque of 8 to 10 Nm [5.9 to 7.4 ft-lbs]). 5 . Repeat as necessary for all the AES RACKMOUNT Battery Modules. NOTICE EQUIPMENT DAMAGE When lowering the AES RACKMOUNT battery module through the Quick Stack Bracket, do it slowly to minimize scratches to the finish and to the safety and specification decals. Failure to follow these instructions may result in equipment damage. NOTE This assembly method is not suited for the Battery Module Combiner due to the interference caused by the pre-installed battery cables. 5.3 Attaching the Brackets and Side Arms onto the Battery Module Combiner 1 .
  • Page 12: Installation

    3 . Slide the Back End Bracket onto the Battery Module Combiner. Note the screw thread ends protruding from the sides of the Front End and Back End Brackets . 4 . Attach the Side Arms so the holes line up with the screw thread ends. 5 . Screw on the M4 nuts to secure the Side Arms with a torque of 2.5 to 3 Nm (1.85 to 2.2 ft-lbs). NOTE This assembly method can also be used to attach the Quick Stack Rack to battery modules. 6. INSTALLATION When using the Quick Stack Rack, the Battery Module Combiner should be placed in the middle of the stack so the battery cables can reach the terminals of all the Battery Modules . 6.1 Location The Quick Stack Rack must be installed and used indoors in a dry location on a flat surface with at least 1U (44.45 mm, 1.75 inch) clearance space above and on both sides of the Battery Modules and Battery Module Combiner. Provide enough space at the back of the modules to accommodate DC cables. For more installation details, refer to the (805-0043) AES RACKMOUNT Installation and Operation Manual and the (805-0055) AES RACKMOUNT Battery Module Combiner User Manual. 6.2 Stacking Battery Modules with the Battery Module Combiner CAUTION TIPPING HAZARD •...
  • Page 13 Before stacking Battery Modules, the Front End and Back End brackets and the side arms must be attached to all Battery Modules and the Battery Module Combiner. 1 . As a base, place a Battery Module, with brackets attached, in the final installation location . 2 . Stack a second Battery Module on top of the first Battery Module. Figure 6. Align pins on the lower unit’s brackets with holes in the upper unit’s brackets 3 . Mate the holes in the bottom of the upper unit’s brackets with the holding pins on the top of the lower unit’s brackets to correctly position the Battery Module. 4 . Secure the lower brackets to the upper brackets using the snap lock clasps. Figure 7. Secure Stacked Modules with Snap Lock Clasps 5 .
  • Page 14: Commissioning

    7. COMMISSIONING 1 . Review the Commissioning checklist before turning on the system (see Appendix 1). 2 . Turn on one Battery Module and wait 30 seconds. Confirm it stays on without any errors . 3 . Turn on the next Battery Module, and wait 30 seconds. Confirm it stays on without any errors. 4 . Continue turning on all the Battery Modules until all the Battery Modules are on. NOTICE If a Battery Module faults during the above sequence: • Check the polarity of the battery cable connections on the busbars and the Battery Module . • The SOC of the Battery Module may be different compared to the other Battery Modules. Try turning on the Battery Module again after waiting a few minutes. 8. ROUTINE INSPECTION CAUTION ELECTRIC SHOCK HAZARD • Configuration, installation, service, and routine inspections should only be performed by qualified personnel. • Do not touch the energized surfaces of any electrical component in the stack system. • Follow all procedures to fully de-energize the stack system. •...
  • Page 15: Quick Stack Rack Inspection

    NOTE An anchoring mechnism is not provided with the Quick Stack Rack. Please use off-the-shelf seismic wall or concrete anchors. 8.3 Energy Storage Inspection 1 . Ensure that all DC cables and connections are secure and torqued to their specification. 2 . Ensure all networking cables and connectors are secure and tight. 3 . Ensure that the installation location is clean and free from debris. 4 . Inspect the casing of the Battery Module Combiner and all Battery Modules for cracks or damage . 5 . Replace the Battery Module Combiner if cracked or damaged. 6 . Replace any cracked or damaged Battery Modules. 7 . Replace any frayed, cut, or damaged cables. 9. RELATED INFORMATION Find information about Discover Energy Systems at discoverenergysys . c om .
  • Page 16: Appendix

    APPENDIX A1. AES RACKMOUNT BESS Commissioning Checklist Use this checklist to confirm the correct installation and function of the AES RACKMOUNT BESS during the commissioning of a complete energy storage system. This checklist is only for the installation and operation of the AES RACKMOUNT BESS. Further system-level functionality checks and tests must be performed once the full system is interconnected with the battery energy storage system to complete commissioning . Battery Installation PROCEDURE CHECK 1 . Ensure that ALL Battery Modules and the Battery Module Combiner are   securely mounted to the Quick Stack Racks. Verify that:   • All FOUR screws are tight on each flange of the Battery Modules and Battery   Module Combiner.  2 . Ensure that the bottom of all four feet is making solid contact with the   mounting surface .   3 . Ensure that the Quick Stack Rack is suitably anchored to the wall or ground.   4 . Confirm the wiring from the Battery Module Combiner to Battery Modules.
  • Page 17 Battery Operation Verification The safety functions inside the Enclosure to protect the batteries are solely provided by each UL 1973 certified AES RACKMOUNT and its integral BMS battery module (Battery Management System). No communication with any equipment external to the AES RACKMOUNT BESS is needed to operate the battery module’s integral protection functions . Verify the items below to confirm that the protection functions of the battery modules are working correctly. PROCEDURE CHECK 1 . Confirm that each battery breaker is OPEN, and turn on each Battery Module   through the push button. Verify that:  • The battery status LED turns ON and pulses AMBER.  NOTE:  • If the LED does not turn ON, there is an issue with the battery module. Contact Technical Support.    • If the LED turns GREEN, check if the battery breaker is OPEN. If it is open, contact Technical Support.   • If the LED turns RED, there is a fault present. Use LYNK Access software to find details about the fault.  2 . CLOSE each battery breaker, one by one.  ...
  • Page 18: A2. Decommissioning Checklist

    A2. Decommissioning Checklist This checklist should be used to ensure the correct installation and function of the AES RACKMOUNT BESS during the decommissioning of a complete battery energy storage system. This checklist is only for the battery energy storage system; further system-level decommissioning procedures on the full system may be required. Disassemble, Recycle, and Dispose PROCEDURE CHECK 1 . Open disconnect devices to ensure there is no electrical connection to any   externally connected Power Conversion Equipment. 2 . Open the disconnect on the Battery Module Combiner.   3 . Turn off each Battery Module one by one using the battery ON/OFF push   buttons. 4 . Disconnect cables on each Battery Module and disconnect any cables   connected to a homerun . 5 . Use a multimeter to verify there is no voltage on the terminals of the Battery   Modules and the Battery Module Combiner.
