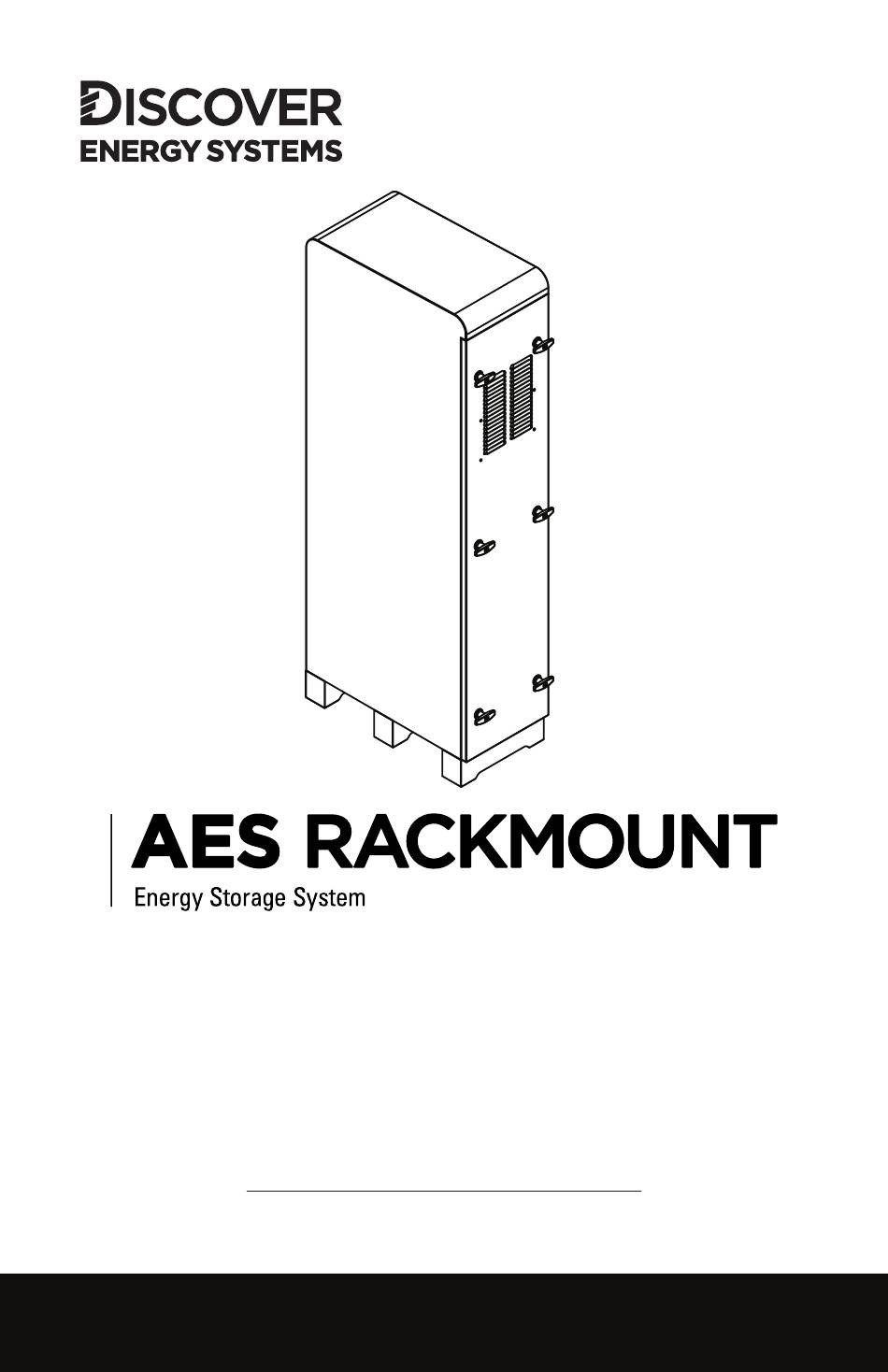

INTRODUCTION The solid casing of the AES RACKMOUNT Slimline Enclosure is designed to withstand the harshest weather and host up to six AES RACKMOUNT battery modules for an energy storage system rated up to 30 kWh. 1 . AUDIENCE, WARNINGS, MESSAGES, GENERAL SAFETY, PERSONAL PROTECTIVE EQUIPMENT 1 .1 Audience...
• Do not wire battery modules or Enclosures in series. • Dispose of or recycle a used Enclosure following local regulations. • Do not modify the Enclosure except as specified by Discover Energy Systems. • Do not immerse the Enclosure in water or other liquids.
• Do not drop the Enclosure or battery modules. • If the Enclosure or a battery module is damaged, take it to a service center for inspection. • Do not expose the battery energy storage system (BESS) to high temperatures. 1 .5 Personal Protective Equipment When handling or working near a battery: •...
3 .2 Mechanical Specifications Table 3-1, Enclosure Dimensions DIMENSION VALUE Height 1721 mm (67 .76 inch) Width 350 mm (13.78 inch) Depth 680.0 mm (26.77 inch) Depth (with handles) 715.7 mm (28.18 inch) Weight 80 kg (176.37 lbs) Weight (fully loaded with battery modules, battery cables, 360 kg (793.66 lbs) busbar, and the LYNK II Gateway) Roof angle...
Page 8
680 m m (26.77 in) 350 m m (13.78 in) 1.87° 680 m m (26.77 in) 715.7 m m (28.18 in) 1721 mm (67.76 in) Door Handles Figure 4. Top 209.6 mm 209.6 m m (8.25 in) (8.25 in) 80 mm 80 m m 80 m m (3.15 in)
3 .3 Environmental Specifications Use the Enclosure and the AES RACKMOUNT battery modules either indoors or outdoors and away from living quarters. NOTICE • Do not install or operate in a location exposed to direct sunlight. • Do not install or operate near an open flame or heating source.
6 . FEATURES Solid steel frame designed to withstand the harshest conditions. The AES RACKMOUNT Slimline Enclosure can hold up to six AES RACKMOUNT battery modules in a configuration of 2 columns of 3 batteries. Each module is supported by the cross brackets of an internal cage and secured to the rack frame with screws.
• Size fuses and breakers following established standards and have the system inspected by the local authority having jurisdiction. 7 . SYSTEM OVERVIEW AND CONFIGURATION The Enclosure can hold up to six AES RACKMOUNT battery modules in 2 columns of 3. Figure 7.
7 .1 Minimum Specifications for AES RACKMOUNT Battery Energy Storage Systems To increase system capacity, install AES RACKMOUNT battery modules in a parallel battery bank configuration. Overall battery energy storage system (BESS) capacity must be correctly sized to meet the requirements of the load and account for the following: •...
Table 7-1, 48-48-5120 / 48-48-5120-H DC Capacity Values for a Sample Battery Energy Storage System Specifications @ 25 °C (77 °F) Peak Part Parallel Continuous Usable Current Discharge Charge Continuous Discharge Capacity Number System (3 seconds) (1 hour) (1 hour) Charge 1 Battery 950-0053_1...
Power Conversion System (Inverter-charger / MPPT Controller) Power Conversion System Display NOTE One LYNK Network can support up to 36 AES RACKMOUNT battery modules. The total length of the LYNK network cables must not exceed 36 m (118.11 ft). 7 .3 Location The AES RACKMOUNT Slimline Enclosure can be used indoors or outdoors.
Page 15
Figure 9. Installation Locations Consider the following, as well as local fire and building codes, when determining the installation location: 1. Locate away from habitable and living areas. Install the Enclosure in a shed, attached or detached garage, or outdoors. Do not install in or within 152.4 cm (5 ft) of habitable and living spaces, including bathrooms, closets, halls, and storage spaces.
• Personal protective equipment 9 . PREPARING THE ENCLOSURE FOR INSTALLATION If any adjustments are required to the AES RACKMOUNT Slimline Enclosure, they should be made before installing the battery modules. • Use a two-person lift to move the Enclosure to its final installation location.
9 .1 Moving and Leveling the Enclosure CAUTION HEAVY OBJECT The Enclosure is very heavy once fully loaded. Do not move it after it is loaded. Failure to follow these instructions may result in injury. 1. Turn all the handles to their horizontal position (open) and remove the Enclosure door.
Page 18
To avoid damage to the internal frame, knock out the holes on the sides of the Enclosure 85 to 185 mm (3.35 to 7 .3 in) from the front opening, and 110 to 530 mm (4.3 to 20.87 in) from the bottom of the Enclosure body. The location of holes should minimize exposure to the elements and minimize the ingress of moisture due to rain, snow, or flooding.
Enclosure, rack, or support feet. If damage occurs, unload the Enclosure and replace the damaged components. • The AES RACKMOUNT Slimline Enclosure is very heavy when loaded with battery modules. It is, therefore, advisable to punch holes for home runs, and position, balance, and anchor the Enclosure before loading it with battery modules.
Page 20
1. Ensure the Enclosure is in its final position. Moving the Enclosure after it is loaded with battery modules is dangerous. You may damage parts of the Enclosure, including its base, screws, internal cage, and Enclosure walls. Figure 13. Order of Installation 2.
Page 21
(see below). The screws in these locations secure both the battery module and the busbar mounting assembly. 5. Referencing instructions in the AES RACKMOUNT battery module Installation and Owners Manual (805-0043): a. Ground each battery module to the grounding screws on the sides of the rack frame, as well as the bonding wire from the internal rack frame to the door.
Page 22
Figure 16. Network the Battery CAT 6 Modules 6. Attach the busbar mounting assembly to the internal rack frame of the Enclosure to secure the battery modules and busbar with the M6 screws using a torque of 8 to 10 Nm (5.9 to 7 .4 ft/lbs). 7 .
After positioning the Enclosure loaded with battery modules, and connecting the battery cables, connect the power conversion cables from the Power Conversion system to the AES RACKMOUNT Slimline Enclosure. For detailed instructions, reference the Power Conversion system documentation and the AES RACKMOUNT Installation and Operation Manual (805-0043).
5. Install protection in the positive cable. The protection should be either a disconnect or fuse located close to the busbar's home-run terminal. Local codes may limit how far the protection can be from the battery energy storage system. NOTE •...
Turning All the Battery Modules ON or OFF 1. Briefly pressing the Enclosure’s Remote Power ON/OFF Key inverts the state of connected Battery Modules. The Remote Power ON/OFF Key will function correctly when: • The Battery Modules are all connected in parallel over the busbar. •...
NOTICE If a battery module faults during this sequence: • Check the polarity of the battery cable connections on the busbars and the battery module. • The SOC of the battery module may be different compared to the other battery modules.
13. Close all battery breakers and turn on all the battery modules. Confirm the green status LED turns ON for all the battery modules. For the different colors of the status LED and their meaning, refer to the AES RACKMOUNT Installation and Operation Manual (805-0043).
13 . OPTIONAL ACCESSORIES AND REPLACEMENT PARTS The following are available for the AES RACKMOUNT Slimline Enclosure. Table 13-1, Accessories and Replacement Parts ACCESSORY PART NUMBER AES RACKMOUNT Battery Module 48-48-5120 900-0062 AES RACKMOUNT Battery Module - Heated 48-48-5120-H 900-0067...
This checklist is only for the installation and operation of the AES RACKMOUNT BESS. Further system-level functionality checks and tests must be performed once the full system is interconnected with the AES RACKMOUNT BESS to complete commissioning. Battery Installation...
Page 30
BMS battery module (Battery Management System). No communication with any equipment external to the AES RACKMOUNT BESS is needed to operate the battery module’s integral protection functions. Verify the items below to confirm that the protection functions of the battery...
Page 31
PROCEDURE CHECK 1. Confirm that each battery breaker is OPEN, and turn on each battery module through the push button. Verify that: • The battery status LED turns ON and pulses AMBER NOTE: • If the LED does not turn, there is an issue with the battery module. Contact Technical Support. ...
A2 . Decommissioning Checklist This checklist should be used to ensure the correct installation and function of the AES RACKMOUNT Slimline Enclosure during decommissioning of a complete battery energy storage system. This checklist is only for the battery energy storage system;...
