Summary of Contents for DISCOVER ELEMENT

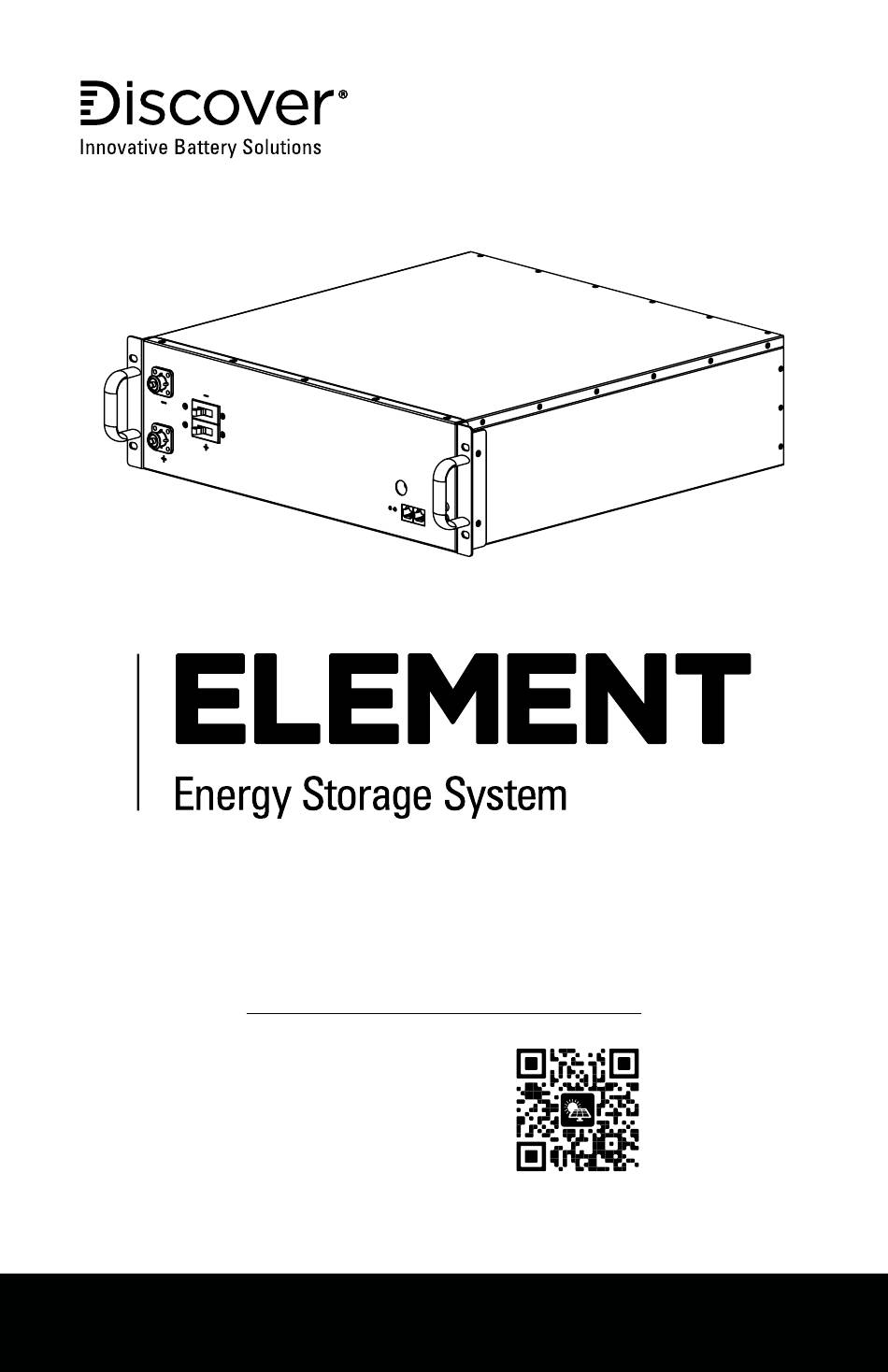

- Page 1 ELEMENT ESS INSTALLATION AND OPERATION MANUAL BATTERY MODELS 48-48-5120 48-48-5120-H 805-0043 REV B...
-
Page 2: Table Of Contents
Internal Heating Specifications ..........10 Minimum Specifications for Discover Battery Module Systems ....10 Regulatory . -
Page 3: Audience, Safety, Messages, And Warnings
Introduction The ELEMENT ESS is a battery module that can operate independently or in a battery bank configuration where multiple battery modules are connected in parallel. 1. AUDIENCE, SAFETY, MESSAGES, AND WARNINGS 1.1 Audience Configuration, installation, service, and operating tasks should only be performed by qualified personnel in consultation with local authorities having jurisdiction and authorized dealers. -
Page 4: General Warnings
1.3 General Warnings Do not crush, disassemble or dispose of the battery module in fire or the garbage. This product is made of recyclable materials and must be recycled. WARNING ELECTRIC SHOCK AND FIRE HAZARD • This equipment must only be installed as specified. •... -
Page 5: Safe Handling Procedures
CAUTION ELECTRIC SHOCK HAZARD • Do not touch the energized surfaces of any electrical component in the battery module system. • Before servicing the battery module, follow all procedures to fully de-energize the battery module system. • Follow the “Safe Handling Procedures” below when working with the battery module. -
Page 6: Personal Protective Equipment
• Use Personal Protective Equipment, including clothing, glasses, insulated gloves, and boots. • Do not wear metal rings, watches, bracelets, or necklaces. 2. ITEMS SHIPPED IN THE BOX Table 2-1, ELEMENT ESS box contents Items Description Battery Module CAT5 Cable... -
Page 7: Mechanical Specifications
SIDE 21.7 mm (0.85 in) 497.30 mm (19.58 in) 465.90 mm (18.34 in) 21.7 mm 459.30 mm (18.08 in) (0.85 in) 38.00 mm (1.50 in) 440 mm (17.32 in) 482.60 mm (19.00 in) Figure 1. ELEMENT ESS Battery Module Dimensions... -
Page 8: Environmental Specifications
3.3 Environmental Specifications Table 3-3, ELEMENT ESS Environmental Specifications Environmental Specifications 48-48-5120 48-48-5120-H (a)(b) Charge Operating Temperature Range 0°C to 45°C (32°F to 113°F) Discharge Operating Temperature Range -20°C to 55°C (-4°F to 131°F) Internal Heater Operating Temperature Range Not applicable -20°C to 5°C (-4°F to 41°F) - Page 9 Under-temperature in Charge Cell temperature below 0°C (32°F) for 5 seconds and charge Protection current detected Recovery after 120 seconds and cell temperature 2°C (32°F) or Recovery higher. Note: Discharge is available to -20°C (-4°F). Load Qualification Protection Mixed System Voltage, Short Circuit, Reverse Polarity, Input Protection Capacitance Overload Re-qualify after 120 seconds.
-
Page 10: Internal Heating Specifications
3.6 Minimum Specifications for Discover Battery Module Systems Install ELEMENT ESS battery modules in parallel in a battery bank configuration to increase system capacity. Overall battery module system capacity must be correctly sized to meet the requirements of the load and account for: •... -
Page 11: Regulatory
Table 3-7, 48-48-5120 / 48-48-5120-H DC Capacity Values for Sample Battery Module Systems Max Continuous Max Continuous Parallel System Peak Current Usable Capacity Discharge Charge 1 battery module 220 A 100 A 100 A 5,120 Wh 2 battery module 440 A 200 A 200 A 10,240 Wh... -
Page 12: Features
6. FEATURES Figure 3. ELEMENT ESS Battery Module Components Item Description Battery module negative (-) black, Amphenol RadLok connector Battery module positive (+) red, Amphenol RadLok connector Two Pole Breaker Equipment Ground At-a-glance LED ON/OFF Key LYNK Port x 2... -
Page 13: Battery Module On/Off Key
The main relay is OFF (Open), the battery module is in protection mode, and a fault has occurred. Flashing red For a list of faults, refer to Table 3-4. ELEMENT ESS Protection Specifications. NOTE The At-a-glance LED does not communicate the breaker position. Visually inspect the breaker position. -
Page 14: Equipment Ground
6.4.1 LYNK Port Communication RJ45 Pin Assignment Pin Number Function 1 2 3 4 5 6 7 8 Reserved. Do not use. Reserved. Do not use. Reserved. Do not use. CAN Low CAN High Reserved. Do not use. CAN Ground CAN Ground Do not populate. -
Page 15: Internal Heating (48-48-5120-H)
6. Load Qualification: Protection may occur when switching the battery module ON. The protection qualifies the load attached to it to prevent switching ON into a reverse polarity, short circuit, mixed voltage system, or large capacitive load. For trigger and recovery values, refer to Table 3-4, ELEMENT ESS Protection Specifications. - Page 16 ON, allowing you to connect battery modules at different SOC. The maximum input capacitance for a single battery module should not exceed the values in Table 3-1, ELEMENT ESS Electrical Specifications. NOTICE When switching ON battery modules, the inrush current may cause the battery modules to fault as they energize external capacitive loads.
-
Page 17: Lynk Network Communication
Do not use an external power source to power devices over the LYNK Network. 7.4.2 LYNK Network Size One LYNK Network can support up to 24 ELEMENT ESS battery modules. The network is limited to 30 devices, which include battery modules, displays, chargers, and LYNK Communication Gateway devices. -
Page 18: Optional Accessories
8. OPTIONAL ACCESSORIES The following optional accessories are available for the ELEMENT ESS battery module. Table 8-1, ELEMENT ESS Accessories Accessory Part Number LYNK II Communication Gateway 950-0025 ELEMENT ESS Terminal Connector Set 950-0054 9. INSTALLATION The following instructions describe how to connect single or multiple battery modules in parallel to the LYNK communication device. -
Page 19: Location
9.2 Location 44.45 mm (1.75 in) (1U) 44.45 mm (1.75 in) (1U) Figure 5. Battery spacing Install the battery module in locations that meet the following requirements: 1. Do not install in direct sunlight. Avoid installing the battery module in an area with high ambient temperature. -
Page 20: Dc Cables
9.3 DC Cables CAUTION FIRE HAZARD Undersized cables can become hot and may potentially catch fire. Failure to follow these instructions can result in minor to moderate injury. The DC battery cables should meet the following requirements: 1. Copper-stranded cable. DC cables must be stranded, copper, and rated 90 °C minimum. -
Page 21: Terminal Connections And Hardware
9.5 Terminal Connections and Hardware Amphenol RadLok connectors with the following part numbers are used to mate with the receiving pins on the battery module face plate. • Positive (+) Red - C10-730186-200 • Negative (-) Black - C10-730186-100 1. Plug the Connector Into the Receiving Pin. Connect all power connectors appropriately to the receiving pin. - Page 22 9.6.1 Installation Procedure CAUTION ELECTRIC SHOCK AND FIRE HAZARD: • Take precautions to avoid bridging the terminals. • Do not contact the terminals with metal mountings, fixtures, or body parts. Failure to follow these instructions can result in minor to moderate injury. Install equipment following the standards set by the local authority having jurisdiction.
-
Page 23: Parallel Battery Module Installation Procedure
NOTICE • Some inverter-chargers support temperature-compensated charging. Disable temperature compensated charging on the charger or inverter. • Do not use or install a battery temperature sensor. 9.7 Parallel Battery Module Installation Procedure CAUTION FIRE HAZARD Use cables that meet specifications. Undersized cables can become hot and may potentially catch fire. - Page 24 chassis ground Figure 7. Battery Module Grounding 8. Connect all positive (+) cable lugs to the positive (+) busbar. 9. Connect all negative (-) cable lugs to the negative (-) busbar. 10. Connect all positive (+) battery module connectors to the positive (+) battery module receiving pins and engage mating locks.
-
Page 25: Lynk Network
end of the cable to the LYNK Gateway. Refer to Section 9.8.2, Network Installation, for instructions. 14. Set all battery module BMS to the ON position. 15. Energize the system by setting all battery module breakers to ON. 16. Close the circuit disconnect (if open). NOTICE Failure to securely engage the mating lock will increase resistance and lower voltage, leading to burnout of the terminals and voiding of the warranty. -
Page 26: Operation
A voltage-based battery meter designed for lead-acid batteries will not provide an accurate state-of-charge (SOC) for lithium batteries. The following device, available from Discover Battery, can be used to communicate an accurate state of charge to other devices. • LYNK II Communication Gateway... -
Page 27: Charging
• Low charge current extends life. Charging at 50% of nominal current or lower helps extend the battery module cycle life. • Charge within the proper temperature range. Ensure that charging is within the charge temperatures specified in Table 3-3, ELEMENT ESS Environmental Specifications. -
Page 28: Charging Profile
Figure 10. Charge Graph NOTICE • Charge with a Lithium charge profile matching the specifications for the ELEMENT ESS battery module. • Do not charge using a lead-acid charging profile. Charging using a lead-acid profile will void the warranty. - Page 29 CAUTION FIRE AND BURN HAZARD Do not perform an equalization charge on the ELEMENT ESS battery module. Failure to follow these instructions can result in minor to moderate injury. Do not equalize charge the ELEMENT ESS battery module. Equalization charging is intended only for lead-acid batteries.
-
Page 30: Routine Inspection
11. ROUTINE INSPECTION CAUTION ELECTRIC SHOCK HAZARD • Do not touch the energized surfaces of any electrical component in the battery module system. • Before servicing the battery module, follow all procedures to fully de-energize the battery module system. • Follow the “Safe Handling Procedures” (refer to Section 1.4, Safe Handling Procedures) when working with the battery module. -
Page 31: Battery Module Firmware And Data Logs
Gateway and LYNK ACCESS software on a laptop to monitor and troubleshoot their system. 15. RELATED INFORMATION For warranty information, refer to 885-0043 Discover ELEMENT ESS Battery Module Warranty Policy, available from the Discover Battery website at discoverbattery.com. 16. GLOSSARY OF TERMS, ABBREVIATIONS, AND ACRONYMS... - Page 32 NOTES...
