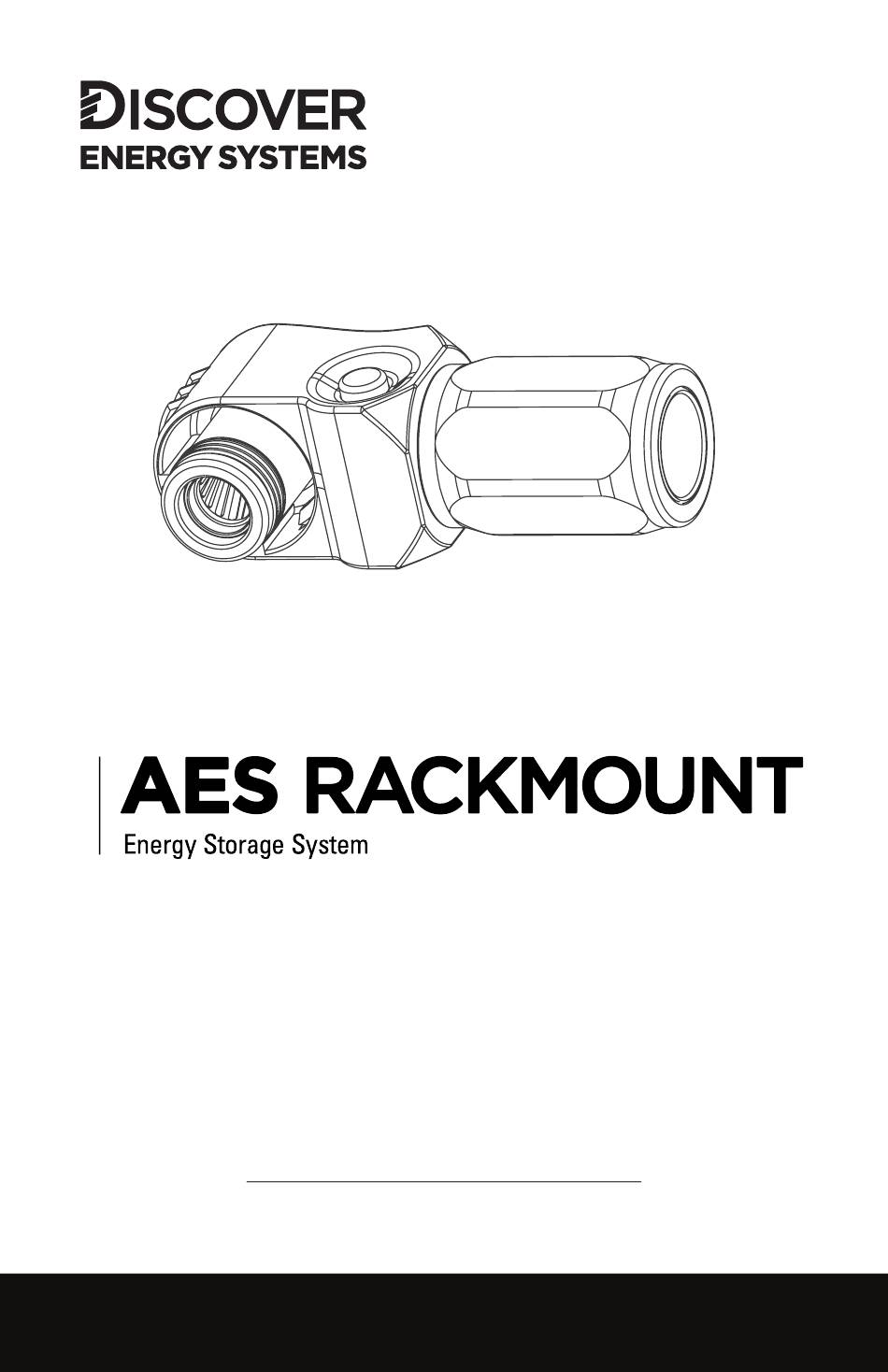

AES RACKMOUNT Battery Cable
Terminal Connector Set Manual
READ AND SAVE THESE INSTRUCTIONS
950-0054
Battery Cable Terminal Connector Set
805-0057 REV B
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AES RACKMOUNT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DISCOVER AES RACKMOUNT

Summary of Contents for DISCOVER AES RACKMOUNT

  • Page 1 AES RACKMOUNT Battery Cable Terminal Connector Set Manual READ AND SAVE THESE INSTRUCTIONS 950-0054 Battery Cable Terminal Connector Set 805-0057 REV B...

  • Page 2: Table Of Contents

    INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1 .

  • Page 3: Introduction

    INTRODUCTION The AES RACKMOUNT Battery Cable Terminator Set consists of a Positive (Red) Connector and a Negative (Black) Connector. The connectors secure battery cables to the front terminals on the AES RACKMOUNT Battery Module. 1 . AUDIENCE, MESSAGES, WARNINGS, GENERAL SAFETY, PERSONAL PROTECTIVE EQUIPMENT 1 .1 Audience...

  • Page 4: Warnings And General Safety

    • Do not immerse or expose the Battery Cable Terminal Connector to water or other liquids, fire, explosion, or other hazards. • Use the Battery Cable Terminal Connector only with AES RACKMOUNT Battery Modules or equipment that Discover Energy Systems specifies as compatible.

  • Page 5: Personal Protective Equipment

    Connector - C10-730186-100 3 . SPECIFICATIONS 3 .1 Electrical Specifications The AES RACKMOUNT Battery Cable Terminal Connector Set is designed for use with the AES RACKMOUNT Battery Module Combiner and AES RACKMOUNT Battery Modules. Table 3-1. AES RACKMOUNT Battery Cable Terminal Connector Electrical...

  • Page 6: Mechanical Specifications

    3 .2 Mechanical Specifications Table 3-2. AES RACKMOUNT Battery Cable Terminal Connector Mechanical Specifications AES RACKMOUNT Battery Cable Terminal Mechanical Specifications Connector Height 22.6 mm (0.89 in) Width 18 mm (0.71 in) Length 55.1 mm (2.17 in) Cable Acceptance 26.5 mm² (3 AWG)

  • Page 7: Handling

    Back Shell back onto the Connector to encapsulate the cable after crimping. The assembled Battery Cable Terminal Connector connects to the male receiving terminal pin on the faceplate of the AES RACKMOUNT Battery Module when you push the connector onto the receiving pin.

  • Page 8: Tools

    • Post cleaner and wire brush • Personal protective equipment 7 . ASSEMBLY The AES RACKMOUNT Battery Cable Terminal Connector consists of three pieces: Connector, Grommet, and Back Shell. A 26.5 mm² (3 AWG) battery cable is passed through the Back Shell and Grommet, and into the Drum, and the cable is secured by crimping the drum and cable together.

  • Page 9: Connecting To The Battery Module

    At-a-glance LED shows that the AES RACKMOUNT Battery Modules are OFF . • Even if the AES RACKMOUNT Battery Module Combiner LED is OFF , the combiner may be energized by power from the Power Conversion System (inverter-charger / MPPT controller).

  • Page 10: Disconnecting From Battery Module Terminals

    8 .2 Disconnecting from Battery Module Terminals De-energize all AES RACKMOUNT Battery Modules and the AES RACKMOUNT Battery Module Combiner. Detach the red, positive (+) connector from the positive (+) terminals on the Battery Module by holding down the button on the side of the Connector and pulling it away from the Battery Module.
