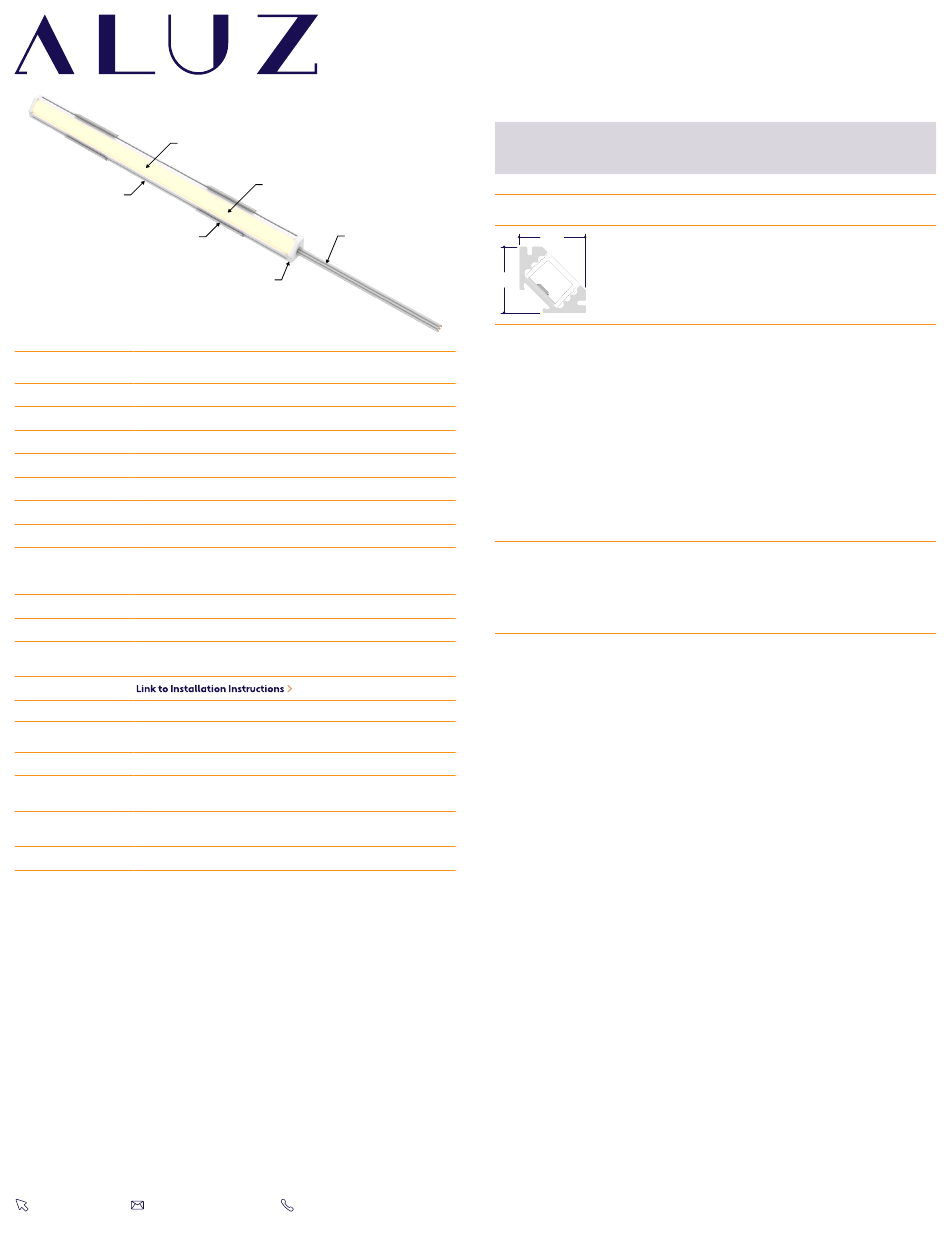

ALUZ ZUDA A8 Series Installation Manual

Dynamic White Lightstrip
(A8-ZUDA-TAPE)
Aluminum Extrusion
(A8-ZUDA-CRN)
Mounting Clip
(A8-ZUDA-CRN-MC)
White End Cap with Hole
(A8-ZUDA-CRN-EC-H-WH)
GENERAL FEATURES
Applications
Accent, Decorative, Surface, Recessed, Pendant Lighting
Viewing Angle 120°
Length Built to Order (+/- 1/8" Tolerance)
Construction Aluminum Extrusion
Field Cutting Dry and Wet Location Field Cuttable
Weight 0.241 lbs per foot
Mounting Mounting Channel or Mounting Clips (Sold Separately)
Dry, Wet, or IP67 Location
Listing UL2108, CSA C22.2 #9
UL8750, CSA250
Driver Remote (Sold Separately)
Closet Rating Up to 3.6 Watts per Foot Maximum
Operating / Startup: -20° to 48°C (-4° to 120°F)
Temperature Ratings
Storage: -40° to 76°C (-40° to 170°F)
Installation Link
ELECTRICAL
Dimming DMX, DALI
26' (4.5W)
Maximum Run
33' (3.6W)
(Class 1 Applications)
18' (4.5W)
Maximum Run
23' (3.6W)
(Class 2 Applications)
Luminaire Voltage 24VDC
PRODUCT INFORMATION
• For accent, decorative, surface, recessed, or pendant lighting.
• 24 Volts DC for easy and safe installation.
• Long life, energy effi cient LEDs.
• Can be ordered to specifi c lengths for when exact dimensions are known
Example: 10 x 10'6"
• Plug and light system.
• Lead wires are typically 36" long and exit on one end.
1170 N Red Gum St, Anaheim, CA 92806
aluz.lighting info@aluz.lighting
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifi cations without prior notice.
A8 Series | LED Tape
ZUDA Corner
(A8-ZUDA-CRN)
100% Frosted Lens
(A8-ZUDA-CRN-F)
Dry Power Connector
(20/3 Gauge Wire)
(A8-ZUDA-CRN-PC-DRY)
866.ALUZ.LTG | 714.535.7900
READ ENTIRE GUIDE BEFORE STARTING INSTALLATION
Important Notice: Verify correct luminaire was received with correct
color temperature, voltage, and wattage before cutting or installing.
ALUZ will not be responsible if incorrect luminaire is installed.
END VIEW / DIMENSIONS
.70"
.70"
ELECTRICAL REQUIREMENTS
• Luminaires require a 24 Volt DC remote driver.
• To calculate driver size, determine Watts per Foot.
Example: 4.5W per Foot
• Determine Length in Feet.
Example: 10'
• Calculate Load: Multiply Watts per Foot x Length in Feet
Example: 4.5W x 10'= 45W
• Choose a driver from catalog.
Example: 60 Watt Driver
• Determine maximum driver distance using Maximum Wire Length Table on
drivers page.
Example: 45 watts is between 40W and 60W. Using #14 wire, maximum distance
is 37' from driver to fi rst LED.
INSTALLATION RECOMMENDATIONS
• Luminaires must be mechanically attached directly to mounting surface using
mounting clips, channels, or other appropriate means.
Refer to installation step by step pages for details.
• Conduit raceway should be sleeved at one end for low voltage wires going to driver.
INSTALLATION TOOLS REQUIRED
• Electric Hammer Drill
• 14.4 to 28 Volt Cordless Drill
• Phillips Bits
• Utility Knife
• Electrical Cord
• Marker
• Wire Stripper
Page 1 of 14
Overview
• Long Nose Pliers
• Drill Bits - Concrete or Wood
• Electrical Three Ways
• Safety Glasses
• Measuring Tape
• Laser Line or Chalk Line
Installation Instructions
7 / 16 / 2024 / Rev 3
