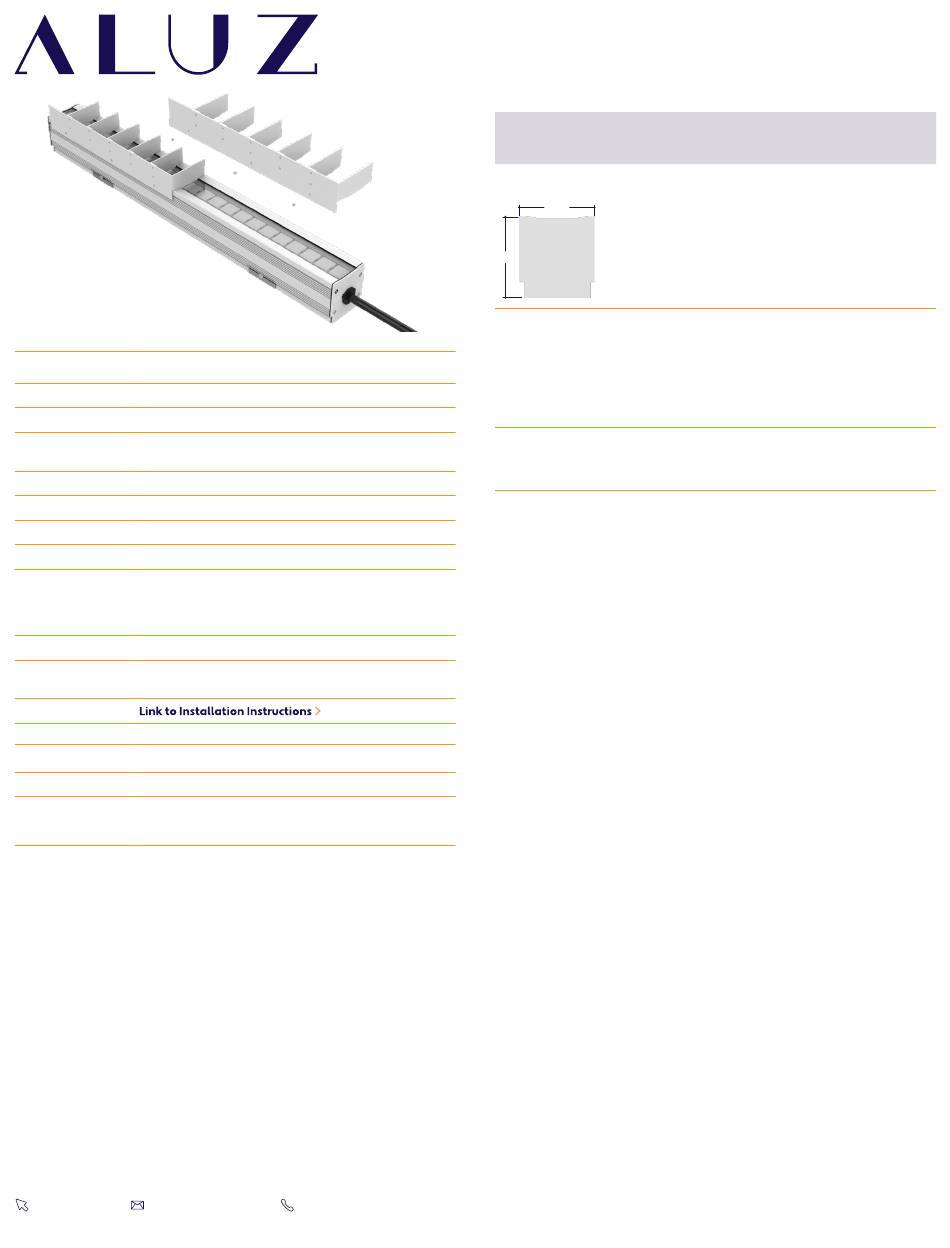

ALUZ ZIBI A1 Series Installation Instructions Manual

GENERAL FEATURES
Applications Wall Washing Lighting
Lens Tempered Clear Glass Lens
Optics &
10° - 60° or Asymmetric Optics
Asymmetric
Length Built to Order (2', 3', or 4' Increments)
Construction Aluminum Extrusion
Weight 2.3 lbs (1'), 5.6 lbs (2'), 7.9 lbs (3'), 11.2 lbs (4')
Mounting Mounting Clips (Sold Separately)
Dry or Wet (IP65 or IP67) Location
UL1598, CSA C22.2#250.0
Listing
UL8750, CSA250
UL2108, CSA C22.2 #9
Driver
Integral
Temperature Operating / Startup: -20° to 48°C (-4° to 120°F)
Ratings Storage: -40° to 76°C (-40° to 170°F)
Installation Link
ELECTRICAL
Dimming DMX
Maximum Run
100' (3W), 64' (5W), 53' (6W),
(Line Voltage
40' (8W), 35' (9W), 26' (12W), 21' (15W)
Integral Driver)
Luminaire Voltage 120V - 277V (UNV)
1170 N Red Gum St, Anaheim, CA 92806
aluz.lighting info@aluz.lighting
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifi cations without prior notice.
A1 Series | Surface
ZIBI Standard RGBW
(A1-ZIBI-STN-RGBW)
866.ALUZ.LTG | 714.535.7900
READ ENTIRE GUIDE BEFORE STARTING INSTALLATION
Important Notice: Verify correct luminaire was received with correct
color temperature, voltage, and wattage before cutting or installing.
ALUZ will not be responsible if incorrect luminaire is installed.
END VIEW / DIMENSIONS
2.52"
2.69"
PRODUCT INFORMATION
• Lighting for wall washing, cove, edge, undercabinet, accent, displays
• Line Voltage (Integral Driver) or Low Voltage (Remote Driver)
• Color changing LEDs
• Available in 3 Watts up to 18 Watts Per Foot
• Product is shipped in 1', 2', 3', and 4' luminaires
• Available for outdoor rated installations
ELECTRICAL REQUIREMENTS
• Line Voltage luminaires do not require a remote driver.
• Maximum load per line voltage fi xture is 320 watts per circuit.
INSTALLATION TOOLS REQUIRED
• Electric Hammer Drill
• 14.4 to 28 Volt Cordless Drill
• Phillips Bits
• Utility Knife
• Electrical Cord
• Marker
• Wire Stripper
Page 1 of 12
Overview
• Long Nose Pliers
• Drill Bits - Concrete or Wood
• Electrical Three Ways
• Safety Glasses
• Measuring Tape
• Laser Line or Chalk Line
Installation Instructions
4 / 29 / 2022 / Rev 2
