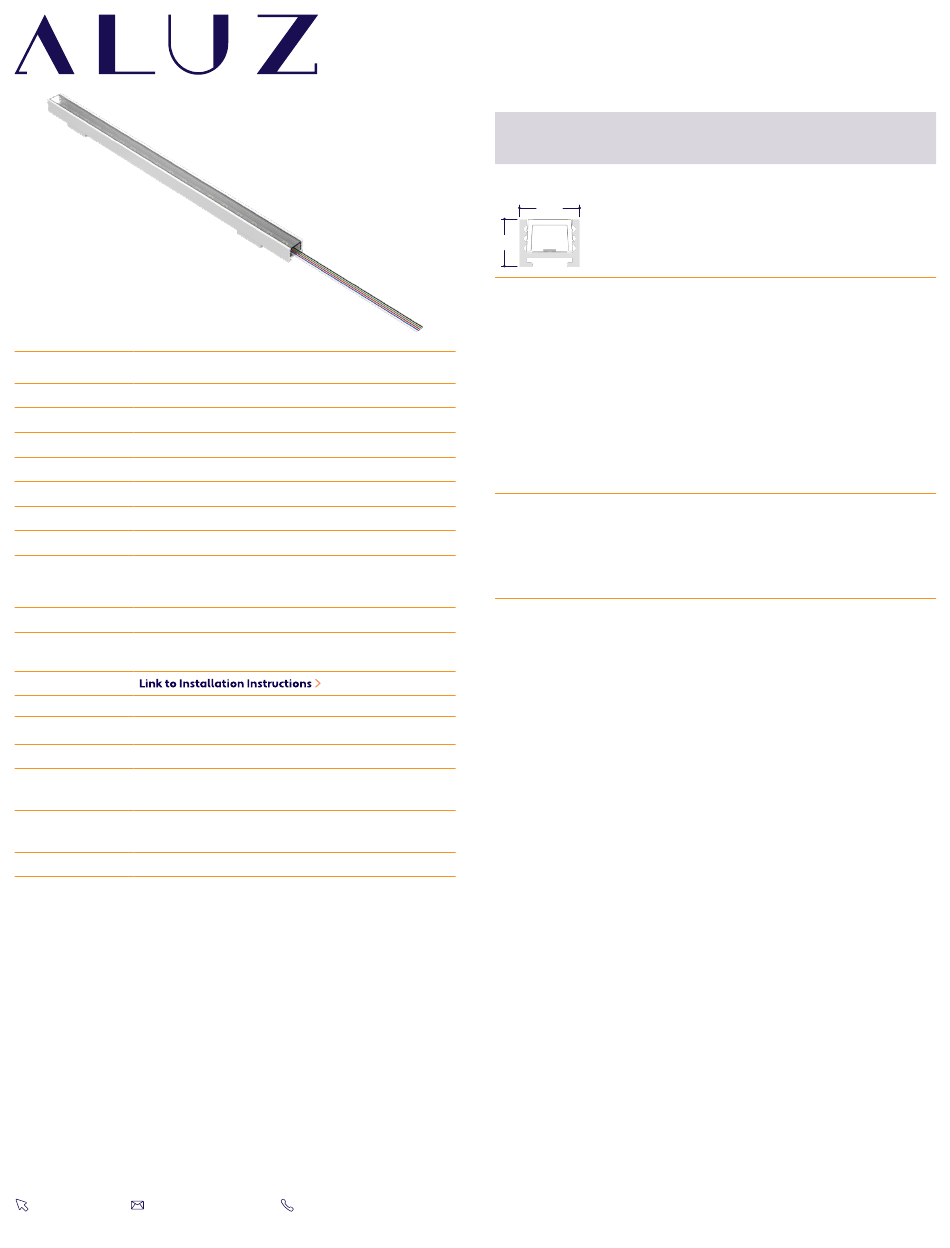

ALUZ A8 Series Manual

GENERAL FEATURES
Applications Accent, Decorative, Surface, Recess, Pendant Lighting
Lens Clear, 50% Semi-Frosted, or 100% Frosted
Viewing Angle 120°
Length Built to Order (+/- 1/8" Tolerance)
Construction Aluminum Extrusion
Weight 0.241 lbs per foot
Mounting Mounting Channel or Mounting Clips (Sold Separately)
Dry, Wet, or IP67 Location
Listing UL2108, CSA C22.2 #9
UL8750, CSA250
Driver Remote (Sold Separately)
Temperature Operating / Startup: -20° to 48°C (-4° to 120°F)
Ratings Storage: -40° to 76°C (-40° to 170°F)
Installation Link
ELECTRICAL
Dimming DMX
21' (5.5W)
Maximum Run
26' (4.5W)
(Class 1 Applications)
17' (5.5W)
Maximum Run
(Class 2 Applications) 21' (4.5W)
Luminaire Voltage 24VDC
PRODUCT INFORMATION
• For accent, decorative, surface, recessed, or pendant lighting.
• 24 Volts DC for easy and safe installation.
• Long life, energy effi cient LEDs.
• Can be ordered to specifi c lengths for when exact dimensions are known
Example: 10 x 10'6"
• Plug and light system.
• Lead wires are typically 36" long and exit on one end.
1170 N Red Gum St, Anaheim, CA 92806
aluz.lighting info@aluz.lighting
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifi cations without prior notice.

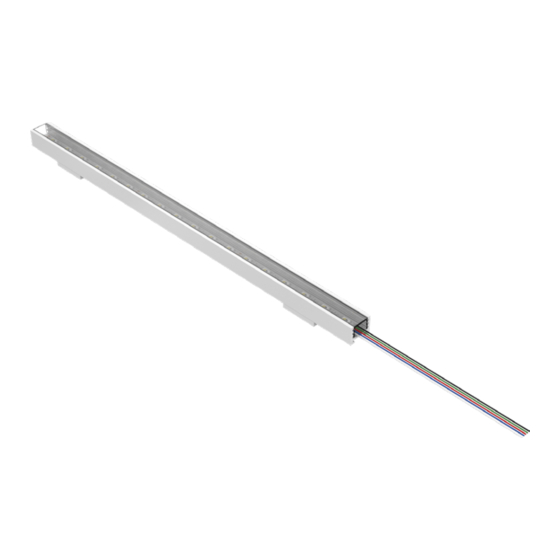

A8 Series | LED Tape
ZIZA Standard
(A8-ZIZA-STN)
866.ALUZ.LTG | 714.535.7900
READ ENTIRE GUIDE BEFORE STARTING INSTALLATION
Important Notice: Verify correct luminaire was received with correct
color temperature, voltage, and wattage before cutting or installing.
ALUZ will not be responsible if incorrect luminaire is installed.
END VIEW / DIMENSIONS
.64"
.50"
ELECTRICAL REQUIREMENTS
• Luminaires require a 24 Volt DC remote driver.
• To calculate driver size, determine Watts per Foot.
Example: 4.5W per Foot
• Determine Length in Feet.
Example: 10'
• Calculate Load: Multiply Watts per Foot x Length in Feet
Example: 4.5W x 10'= 45W
• Choose a driver from catalog.
Example: 60 Watt Driver
• Determine maximum driver distance using Maximum Wire Length Table on
drivers page.
Example: 45 watts is between 40W and 60W. Using #14 wire, maximum distance
is 37' from driver to fi rst LED.
INSTALLATION RECOMMENDATIONS
• Luminaires must be mechanically attached directly to mounting surface using
mounting clips, channels, or other appropriate means.
Refer to installation step by step pages for details.
• Conduit raceway should be sleeved at one end for low voltage wires going to driver.
INSTALLATION TOOLS REQUIRED
• Electric Hammer Drill
• 14.4 to 28 Volt Cordless Drill
• Phillips Bits
• Utility Knife
• Electrical Cord
• Marker
• Wire Stripper
Page 1 of 12
Overview
• Long Nose Pliers
• Drill Bits - Concrete or Wood
• Electrical Three Ways
• Safety Glasses
• Measuring Tape
• Laser Line or Chalk Line
Installation Instructions
4 / 11 / 2022 / Rev 1
