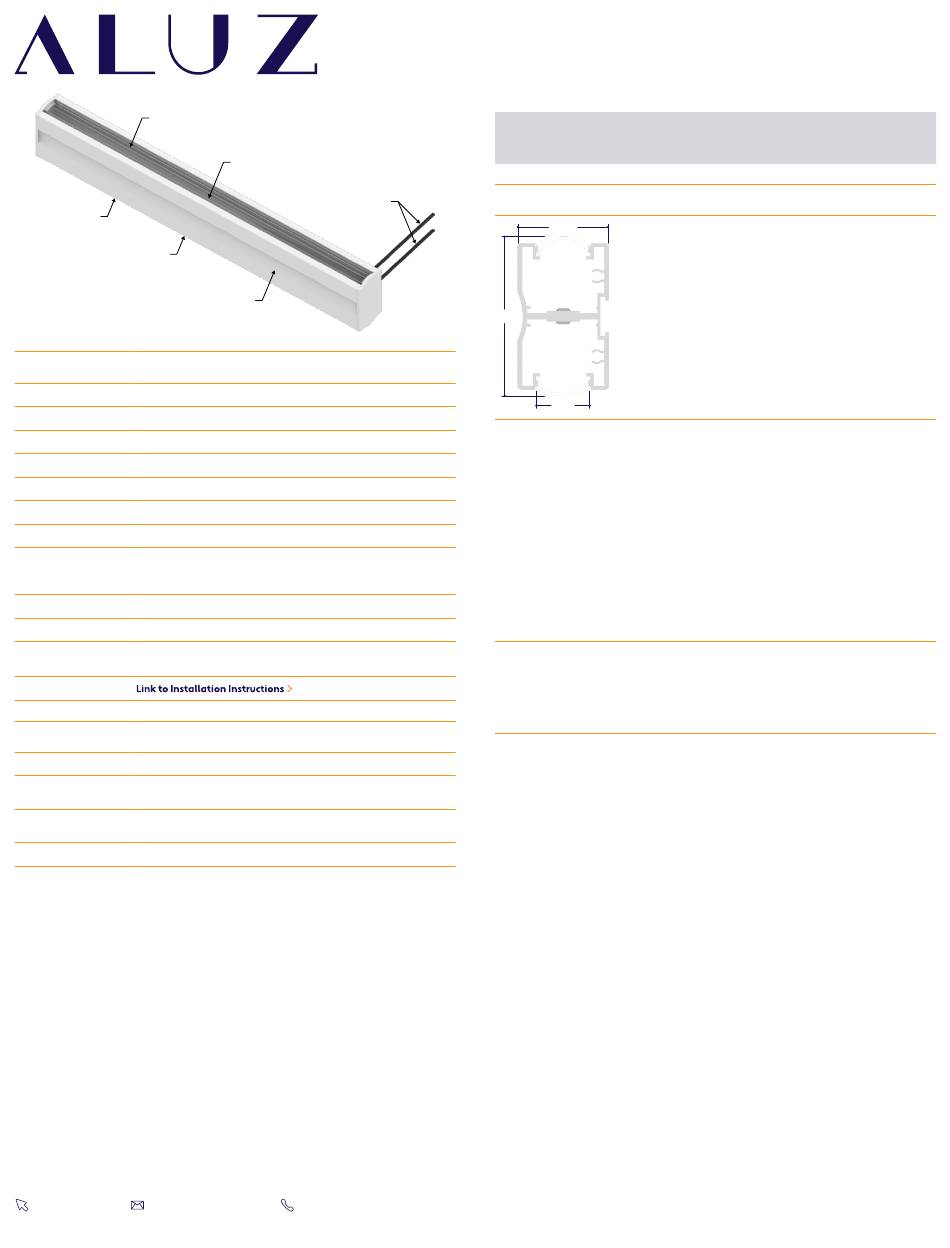

ALUZ A1 Series Installation Instructions Manual

Clear Lens
(A1-ZAKY-SWD-CL)
Clear Lens
(A1-ZAKY-SWD-CL)
Replaceable LED Board
Aluminum Extrusion
GENERAL FEATURES
Applications
Accent, Decorative, Surface, Recessed, Pendant Lighting
Lens Clear, 50% Semi-Frosted, or 100% Frosted
Viewing Angle 120°
Length Built to Order (+/- 1/8" Tolerance)
Construction Aluminum Extrusion
Weight 0.81 lbs per Foot
Mounting Mounting Clips (Sold Separately)
Dry or Damp Location
Listing UL2108, 67.1.9, 60.4, CSA C22.2 #9
UL8750, CSA250
Driver Remote (Sold Separately)
Closet Rating Up to 3.6 Watts per Foot Maximum
Operating / Startup: -20° to 48°C (-4° to 120°F)
Temperature Ratings
Storage: -40° to 76°C (-40° to 170°F)
Installation Link
ELECTRICAL
Dimming 0-10V, Forward / Reverse Phase, Lutron, DMX, DALI
Maximum Run
20' (12W), 30' (8W), 36' (6W, 4W)
(Class 1 Applications)
Maximum Run
7' (12W), 10' (8W), 14' (6W), 21' (4W)
(Class 2 Applications)
Luminaire Voltage 24VDC
PRODUCT INFORMATION
• For accent, decorative, surface, recessed, or pendant lighting.
• 24 volts DC for easy and safe installation.
• Long life, energy effi cient LEDs.
• Can be ordered to specifi c lengths for when exact dimensions are known.
Example: 10 x 10'6"
• Plug and light system.
• Lead wires are typically 36" long and exit on one end.
1170 N Red Gum St, Anaheim, CA 92806
aluz.lighting info@aluz.lighting
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifi cations without prior notice.
A1 Series | Surface
ZAKY Side Wall Duo
(A1-ZAKY-SWD)
LED Board
Dry Power Connector
20/2 Gauge Wire
(A1-PC-2P-DRY)
866.ALUZ.LTG | 714.535.7900
READ ENTIRE GUIDE BEFORE STARTING INSTALLATION
Important Notice: Verify correct luminaire was received with correct
color temperature, voltage, and wattage before cutting or installing.
ALUZ will not be responsible if incorrect luminaire is installed.
END VIEW / DIMENSIONS
1.08"
1.91"
.63"
ELECTRICAL REQUIREMENTS
• Low Voltage luminaires require a 24 Volt DC remote driver.
• Drivers are 120V - 277V AC (UNV) Input Voltage and 24V DC Output Voltage.
• To calculate driver size, determine Watts per Foot.
Example: 6W per Foot
• Determine Length in Feet.
Example: 7'-6"
• Calculate Load: Multiply Watts per Foot x Length in Feet.
Example: 6W x 7'-6" = 45W
• Choose a driver from catalog.
Example: 60 Watt Driver
• Determine maximum driver distance using Maximum Wire Length Table on
drivers page.
Example: 45 watts is between 40W and 60W. Using #14 wire, maximum distance
is 37' from driver to fi rst LED
INSTALLATION RECOMMENDATIONS
• Luminaires must be mechanically attached directly to mounting surface using
mounting clips, channels, or other appropriate means.
Refer to installation step by step pages for details.
• Conduit raceway should be sleeved at one end for low voltage wires going to driver.
INSTALLATION TOOLS REQUIRED
• Electric Hammer Drill
• 14.4 to 28 Volt Cordless Drill
• Phillips Bits
• Utility Knife
• Electrical Cord
• Marker
• Wire Stripper
Page 1 of 11
Overview
• Long Nose Pliers
• Drill Bits - Concrete or Wood
• Electrical Three Ways
• Safety Glasses
• Measuring Tape
• Laser Line or Chalk Line
Installation Instructions
2 / 22 / 2023 / Rev 1
