JVC GR-DVF1EG Service Manual

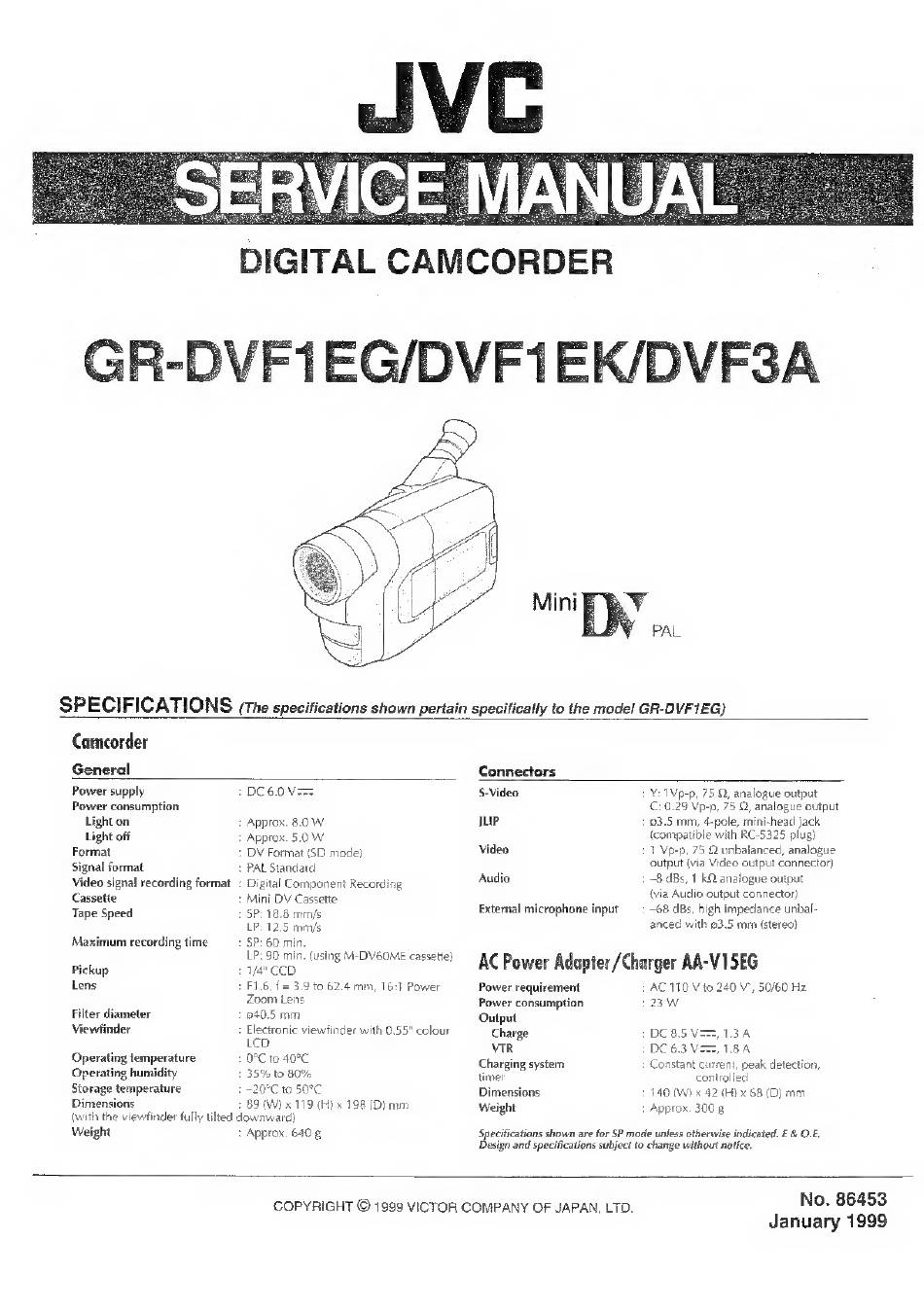

SPECIFICATIONS (the specifications shown pertain specifically to the model GR-DVF1EG)
Camcorder
General Connectors
Power supply :DC6.0V=E S-Video Y: 1Vp-p, 75 Q, analogue output
Power consumption C:0.29 Vp-p, 75 , analogue output
Light on : Approx. 8.0 W' yup 03.5 mm, 4-pole, mini-head jack
Light off Approx. 5.0 W (compatible with RC-5325 plug)
Format ! DV Format (SD mode) Video : 1 Vp-p, 75 @ unbalanced, analogue
Signal format + PAL Standard output (via Video output connector}
Video Sania recording format Audio =8 dBs, 1 kQ analogue output
Cassette
Tape Speed
Maximum recording time
Pickup
Lens
Filter diameter
Viewfinder
Operating temperature
Operating humidity
Storage temperature
Dimensions
: Digital Component Recording
Mini DV Cassette
SP: 18.8 mm/s
LP: 12.5 mm/s
SP: 60 min
LP: 90 min. (using M-DV60ME cassette)
1/4"CCD.
F1.6, f= 3.9 to 62.4 mm, 16:1 Power
Zoom Lens
040.5 mm
Electronic viewfinder with 0.55" colour
LcD
OC to 40°C
1 35% to 80%
-20°C to 50°C
89 {W) x 119 (H) x 198 (D) mm
(with the viewfinder fully tilted downward)
Weight
: Approx. 640 g
{via Audio output connector)
—68 ds, high impedance unbal-
anced with 03.5 mm (stereo)
AC Power Adapter /Charger AA-V15EG
AC 110 V to 240 V', 50/60 Hz
External microphone input
Power requirement
Power consumption 23W
Output
Charge Dcasy
VIR DC 6.3
Charging system Constant current, peak detection,
timer controlled
Dimensions 140 (W) x 42 (H) x 68 (D) mm
Weight Approx. 300 g
Specifications shown are for SP mode unless otherwise indicated. E & O.E,
Design and specifications subject to change without notice.
