Summary of Contents for Gooloo GT-TRUCK JS-275

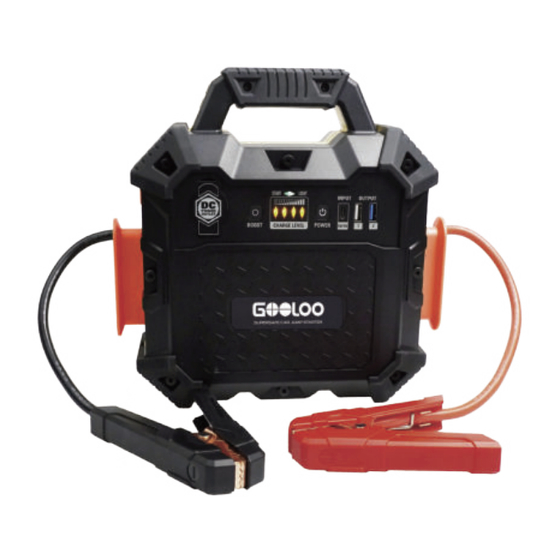

- Page 1 User Manual GT-TRUCK Jump Starter 6750A Model No.: JS-275...
- Page 2 Thank you for choosing gooloo jump starter. To ensure a good user experience, personal safety, and property security, please read all of the instructions carefully before using this product, please keep this manual for reference. Charge It First ! While reading through the manual, you can start to charge your GT-TRUCK with the wall charger and the USB Type-C to USB Type-A charging cable attached.
- Page 3 PACKAGE CONTENTS GT-TRUCK GT-TRUCK Power Supply USB Type-C To USB Type-A Charging Cable Full Color User Manual USB Wall Charger...
- Page 4 PRODUCT LAYOUT & CONTROLS MULTI-MODE LED FLASHLIGHT MAIN POWER BUTTON USB TYPE-C INPUT PORT FLASHLIGHT POWER BUTTON WORKLIGHT POWER BUTTON USB TYPE-A STANDARD OUTPUT PORT DC OUTPUT PORT USB TYPE-A QUICK CHARGE BOOST BUTTON OUTPUT PORT LED WORKLIGHT CHARGE LEVEL INDICATOR LIGHTS...
-
Page 5: Product Highlights
PRODUCT HIGHLIGHTS: 【HEAVY DUTY JUMP STARTER】Gooloo GT-TRUCK starts all gas or 13.0L diesel engines with 6750 peak amps. Specially designed to start big truck engines other jumpers won't. Also works well with 12V earthmovers, farm tractors and all makes and models of consumer vehicles including cars, pickups, ATVs, boats, motorcycles, etc. - Page 6 To check the charge level and provide power to the USB ports on the GT-TRUCK , quick press the power button. Quick Press The GOOLOO GT-TRUCK will automatically power itself off to save power when not in use. USING THE FLASHLIGHT/WORKLIGHT How to turn on the flashlight.
- Page 7 ATTENTIONS Discharge Rate: With the GT-TRUCK powered off and stored, the typical discharge rate is 2-3% per month. Meaning after 6 months, you should still have at least three bars of charge, assuming it was left at 100%. This is enough to boost your vehicle in most conditions, however, to be safe, we recommend charging the GT-TRUCK back to 100% every 3 months to ensure maximum power when you need it.
-
Page 8: Jump Starting A Vehicle
JUMP STARTING A VEHICLE Step 1: Make sure your GT-TRUCK has at least 75% (three bars) charge before boosting, we recommend a full charge for larger engines. The higher the charge level, the more available boosting power. Step 2: Connect the red clamp to the vehicles positive "+"... - Page 9 JUMP STARTING A VEHICLE TIPS & TRICKS It is possible to jump start most vehicles when the GT-TRUCK has a charge below 75% , but a more powerful boost is available at higher charge levels. We recommend boosting with a charge level as close to 100% as possible.
- Page 10 JUMP STARTING A VEHICLE Troubleshooting: Explanation of lights and alerts cont’d RED LIGHT WITH BEEPING - The connection is in correct. the clamps are reverse of the correct setup. Refer to STEP 2 of the “Starting a Vehicle” instructions. Once the GREEN LIGHT is on, it is safe to start the vehicle.
- Page 11 JUMP STARTING A VEHICLE TIPS & TRICKS CONT’D In cold weather or for vehicles that are more difficult to start (older, in poor mechanical shape, vehicles that have been sitting for extended periods, etc.) it may be necessary to make a few start attempts.
-
Page 12: Charging Usb Devices
CHARGING USB DEVICES INPUT OUTPUT Step 1: The GT-TRUCK has two USB ports including one High Speed USB Type-A port (Blue port) and one 2.4A USB Type-A port (White port). Plug your USB charging cable into one of the ports as required Step 2: Plug the other end of your USB charging cable into the device in need of charging. - Page 13 DC OUTPUT The DC Output port is designed to provide mobile power to 12V devices such as air compressors, GPS units and more. The port is rated for max output of 12V/10A. As with any battery, the output voltage varies based on the charge level. Step 1: Open the rubber cover on port labeled as POWER OUTLET...
- Page 14 CHARGING THE GT-TRUCK The GT-TRUCK features an 18W max USB Type-C input charging port. This gives the GT-TRUCK the flexibility to be charged with any compatible USB Type-C charging cable using most USB Type-A or Type-C ports on the market. Please note, however, that the power output from USB ports can vary significantly which will affect total charge times.
-
Page 15: Specifications
SPECIFICATIONS INTERNAL BATTERY: 118Wh Lithium PEAK CURRENT RATING: 6750A GAS ENGINE RATING: 12V, Up to ALL DIESEL ENGINE RATING: 12V, Up to 13.0L STORAGE TEMPERATURE: -22°F to +140°F (-30°C to +60°C) OPERATING TEMPERATURE: -4°F to +122°F (-20°C to +50°C) INPUT RATING (USB-C): USB Type-C 18W Max OUTPUT RATING (USB TYPE-A): 1 @ 5V/2A, 9V/2A, 12V/1.5A, 1 @ 5V/2.4A OUTPUT RATING (DC): 12-16V, 10A PRODUCT DIMENSIONS: 10"... -
Page 16: Safety Information
SAFETY INFORMATION WARNING: PLEASE READ THIS ENTIRE MANU AL AND PAY SPECIAL ATTENTION TO THE FOLLOWING WARNINGS PRIOR TO USE TO ENSURE YOUR PERSONAL SAFETY AND PREVENT PROPERTY DAMAGE. This unit is intended for use with 12V SYSTEMS ONLY. Use on any other system will void the manufacturer's warranty. -
Page 17: Warranty And Support
WARRANTY AND SUPPORT THE COSTS OF TRANSPORTING PRODUCTS TO GOOLOO FOR WARRANTY SERVICE IS THE RESPONSIBILITY OF THE ORIGINAL PURCHASER. THIS LIMITED WARRANTY IS VOID UNDER THE FOLLOWING CONDITIONS: 1. The Product is misused, subjected to careless handling, or operated under conditions of extreme temperature, shock, or vibration beyond GOOLOO's recommendations for safe and effective use. - Page 18 Attention Do Not Submerge In Water Do Not Disassemble Do Not Drop Avoid Extreme Temperatures Do Not Place Near or Into Fire...
- Page 19 Customer Service 18 Months Limited Warranty Service Lifetime Technical Service Feel Free to Contact Us fiona@gooloo.com(US Recommend) support.eu@gooloo.com(EU Recommend) For FAQ and More Information www.gooloo.com 1-888-886-1805 Mon.-Fri. PST 9:00a.m.-5:00p.m. @gooloofans @GoolooOfficial...
- Page 20 Thank You for Choosing Us Made in China...
