Celestron AstroMaster 90EQ MAK Quick Setup Manual

90 E Q T E L E S C O P E
M A K S U T O V - C A S S E G R A I N
T E L E S C O P E
127 EQ
M A K S U T O V - C A S S E G R A I N
QUICK SET-UP GUIDE
1

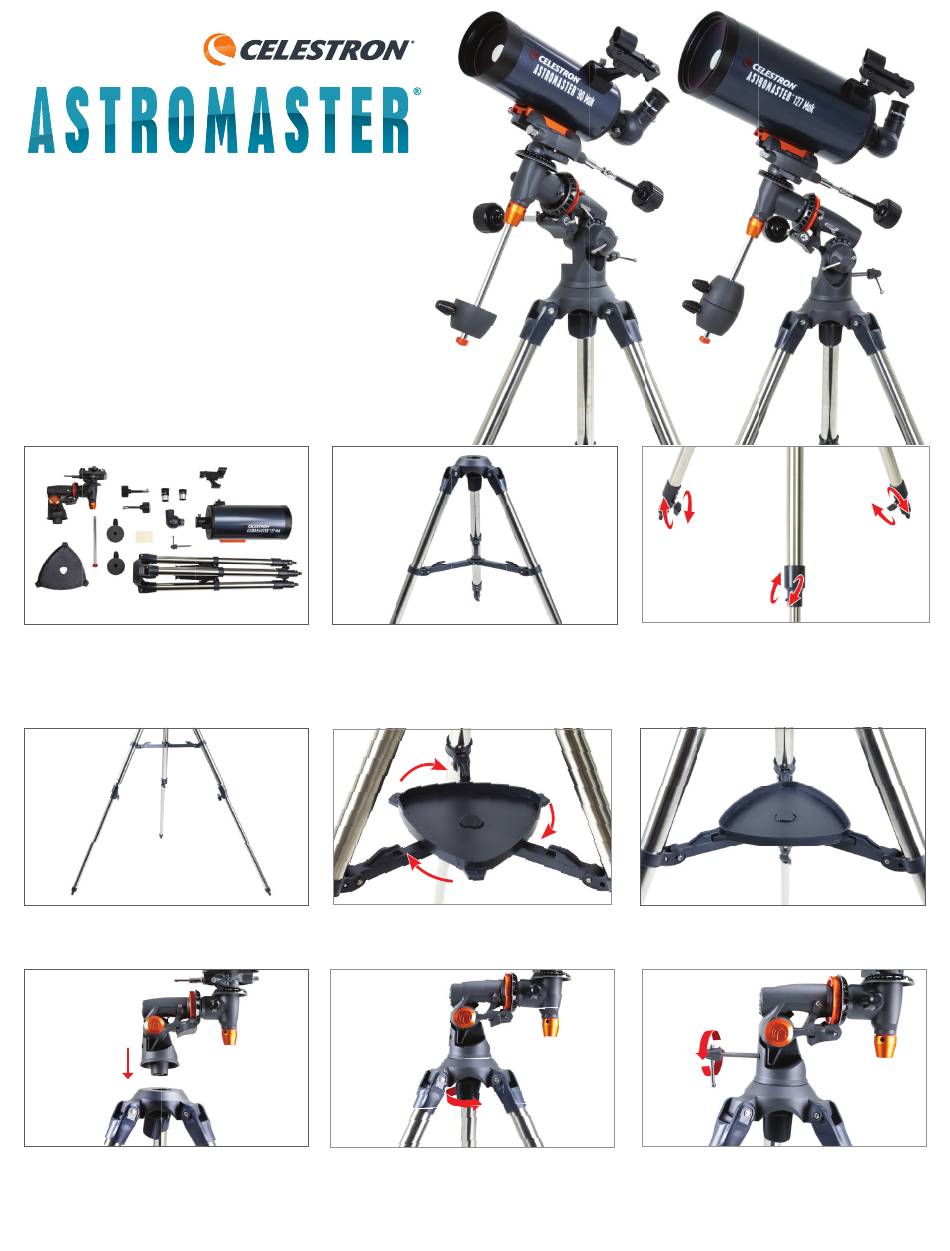

Your AstroMaster 90/127EQ MAK includes: optical tube w/
StarPointer fi nderscope, tripod with center support bracket,
equatorial mount, two eyepieces, two counterweights,
counterweight bar, two slow motion cables, erect image
diagonal, and accessory tray.
4
All three legs should be the same length to provide a level
platform for the telescope.
7
Locate the equatorial mount and place the base of the mount
through the hole in the center of the tripod mounting platform.
#22058
#22059
ENGLISH
2
To set up the tripod, spread the legs outward until they are
fully extended. Extend the center portion of each of the three
tripod legs down 6-12".
5
To attach the accessory tray, line up notches and turn clockwise
until tray tabs lock into place with the tripod brackets.
8
From underneath the tripod mounting platform, thread the
mounting nut into the threaded hole on the bottom of the
equatorial mount.
3
Use the three tightening screws located at the bottom of each
leg to secure the extended legs in place.
6
Properly assembled, the accessory tray should appear as
pictured above.
9
Thread the latitude adjustment screw into the equatorial
mount until the screw is touching the inside of the mount.
ENGLISH | 1
