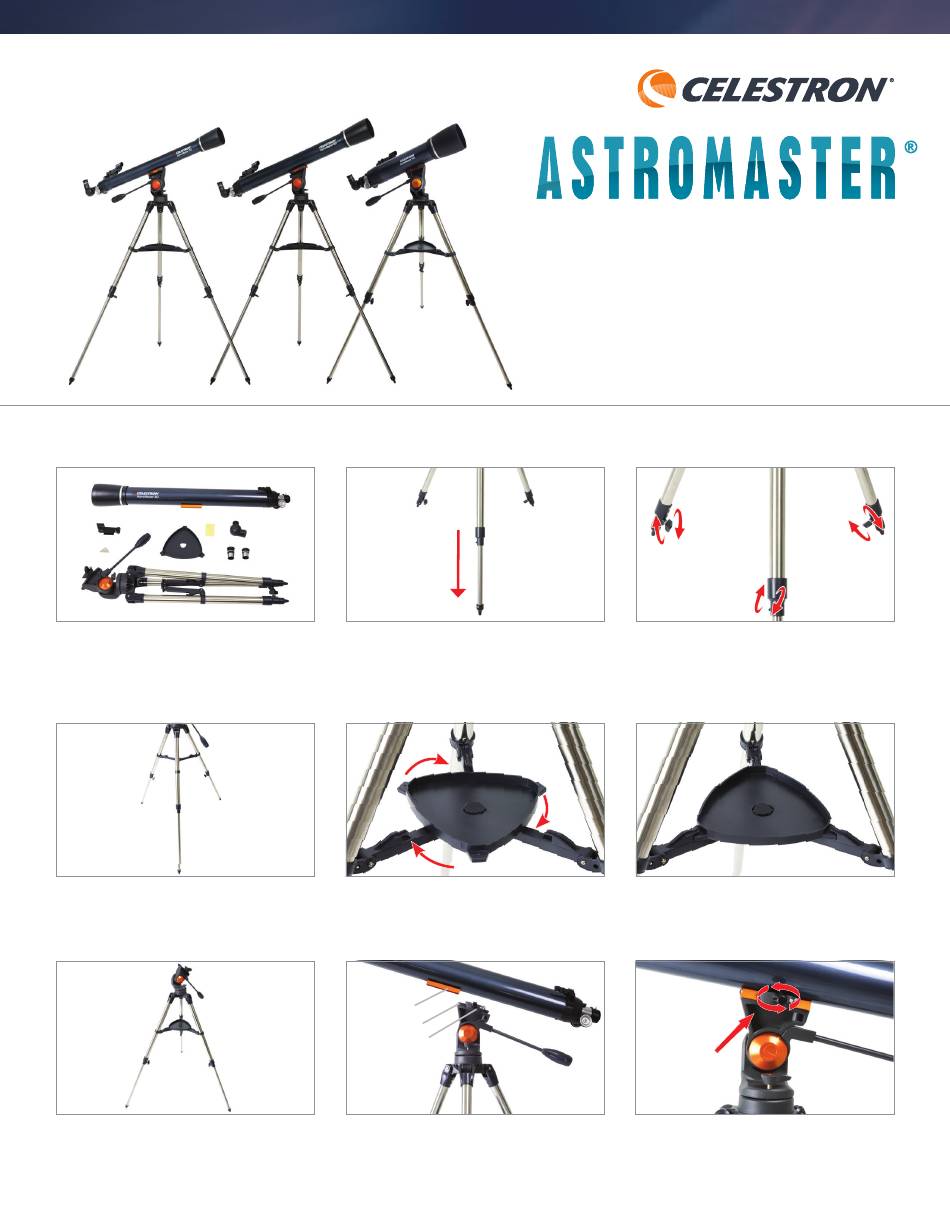

Celestron ASTROMASTER 70AZ Quick Setup Manual

1
Your AstroMaster includes: Optical tube, StarPointer
pre-assembled tripod with center leg brace and altazimuth mount
attached, two eyepieces, erect image diagonal, accessory tray, lens
cloth, owner's manual, and a bonus Astronomy software.
4
All three legs should be the same length to provide a level platform
for the telescope.
7

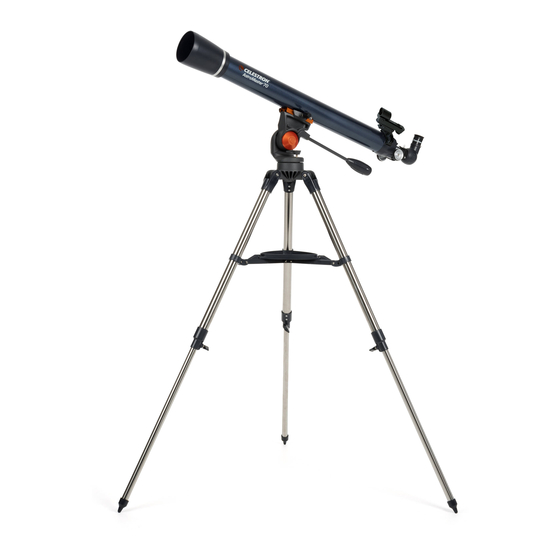

Here is how the fully assembled tripod and mount should appear.
2
finderscope, To set up the tripod, spread the legs outward until they are fully
®
extended. Extend each of the three tripod legs down 6-12".
5
To attach the accessory tray, line up notches and turn clockwise until
tray tabs lock into place with the tripod brackets.
8
Dovetail
Mount
Fastening
Screws
Next, slide telescope tube into the mount. Be sure to back out fasten-
ing screws to allow enough clearance for the dovetail.
A Z T E L E S C O P E
MODELS #21061, 21063, 22065 (70AZ, 90AZ, 102AZ)
Q U I C K S E T - U P G U I D E
3
Use the three tightening screws located at the bottom of each leg to
secure the extended legs in place.
6
Properly assembled, the accessory tray should appear as
pictured above.
9
Center dovetail in the mount and tighten fastening screw. For added
security tighten the angled lock down screw next to the fastening
screw.
ENGLISH
