UNITY PEAK ARGB
Included in the package: ARGB fan
hub controller, remote control.
ARGB INSTALLATION MANUAL

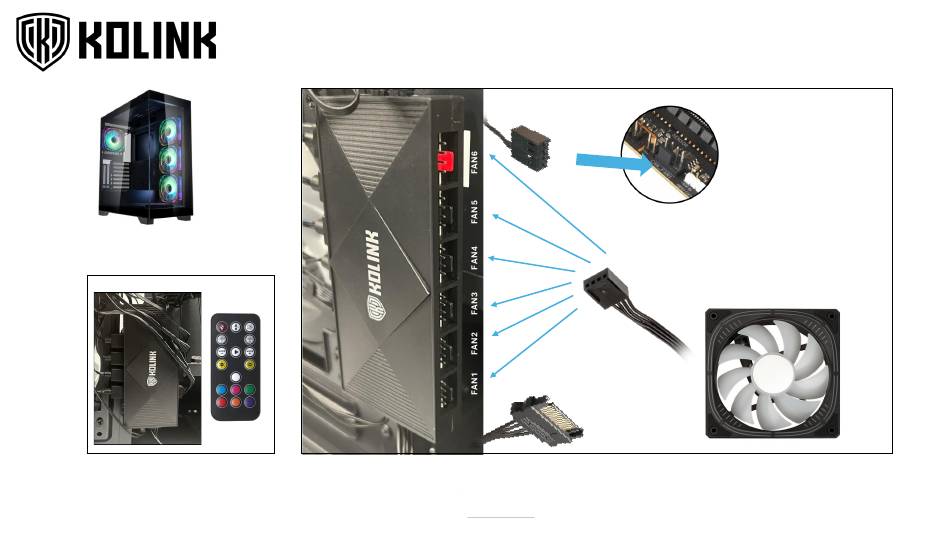

Connect up to 6 fans to the ARGB fan hub controller. 4 fans are pre-installed. Connect additional fans to the free PWM headers. Connect the
PWM signal cable to a free mainboard PWM fan header (e.g. CHA_FAN1) to control the fan speed via the mainboard. Connect the SATA power
cable to a free SATA power connection on your PSU.
Note: Only use the PWM headers of the ARGB fan hub controller to control fans. AIO pumps require PWM headers with constant 12V from
your mainboard.
www.kolink.eu
Power Connection
Fan
PWM Cable
PWM Signal Cable:
→ Connect to MB
SATA Power Cable:
→ Connect to PSU
Mainborad
PWM Header
Page 1/2
Advertisement
Related Manuals for KOLINK Unity Peak ARGB
Summary of Contents for KOLINK Unity Peak ARGB
- Page 1 ARGB INSTALLATION MANUAL UNITY PEAK ARGB Power Connection PWM Cable Mainborad PWM Header PWM Signal Cable: → Connect to MB SATA Power Cable: → Connect to PSU Connect up to 6 fans to the ARGB fan hub controller. 4 fans are pre-installed. Connect additional fans to the free PWM headers. Connect the Included in the package: ARGB fan PWM signal cable to a free mainboard PWM fan header (e.g.
- Page 2 ARGB INSTALLATION MANUAL UNITY PEAK ARGB ARGB Connection Mainboard 5V ARGB Header 5V ARGB MB-Sync.Cable: → Connect to MB 5V ARGB Cable Connect up to 6 ARGB devices to the ARGB fan hub controller. 4 fans are pre-installed. Connect additional ARGB devices to the free headers. Connect the 5V ARGB MB sync.
- Page 3 ARGB INSTALLATION MANUAL UNITY PEAK ARGB Remote Control Functions Lock current Mode/Colour Lighting On/Off Mainboard Sync On/Off Decrease Speed Increase Speed Previous Mode Next Mode Decrease Brightness Decrease Brightness Start Auto-Cycle Effects Preset Colours www.kolink.eu Page 2/2...
