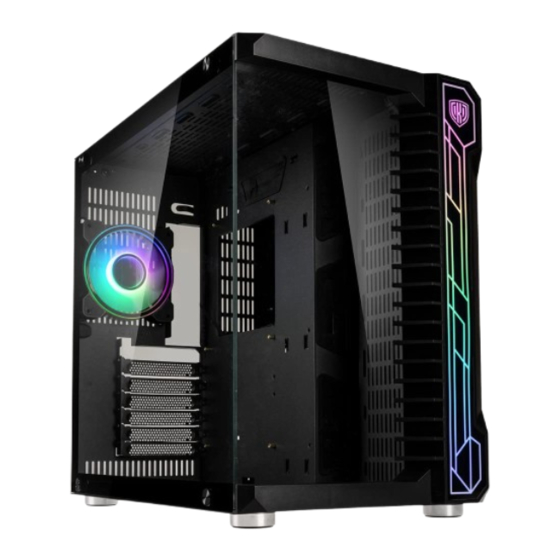

KOLINK UNITY CODE X User Manual

Argb midi tower case

Advertisement

Quick Links

UNITY
CODE X
ARGB MIDI TOWER CASE
U S E R M A N U A L

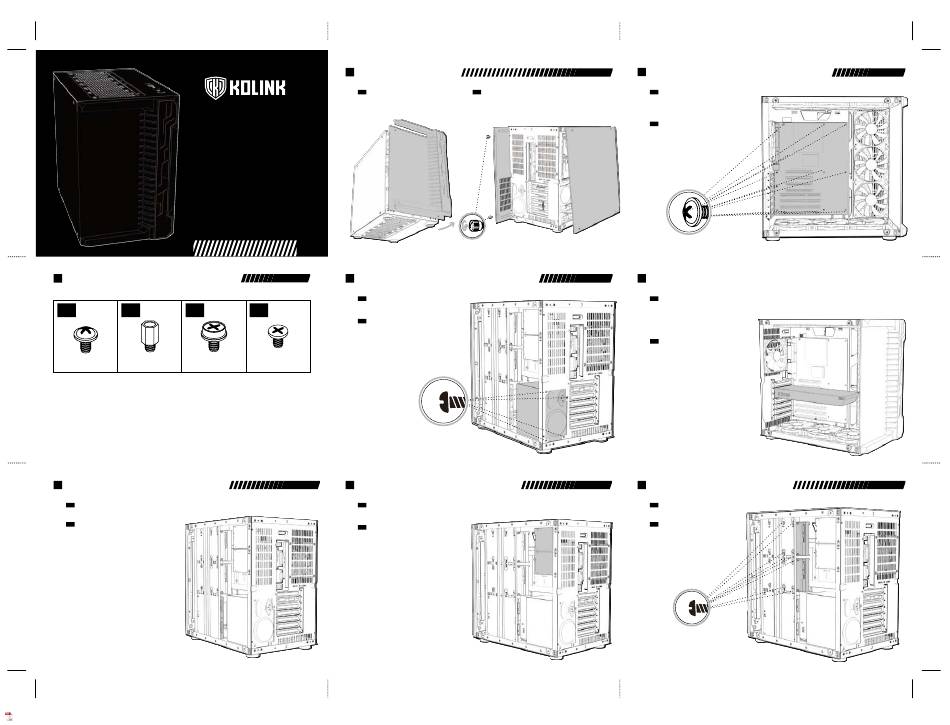

ACCESSORY PACK CONTENTS
1
x10
x1
x5
Motherboard/SSD Screws
Motherboard Stand-off
PSU Screw
2.5" SDD INSTALLATION (R)
6
2.5" SSD INSTALLATION (REAR)
EN
• Mount your SSD's onto the bottom of the HDD/SSD bracket and secure using screws.
2.5" SSD-INSTALLATION (RÜCKSEITE)
DE
• Befestigen Sie das Laufwerk unten an dem HDD-/SSD-Bracket mit Schrauben.
PANEL REMOVAL
2
PANEL REMOVAL
EN
• Remove the left side panel by removing the four thumbscrews and lifting the glass panel away.
• Remove the right side panel by removing the two rear thrumbscrews and sliding the panel backwards.
• To remove the front panel, remove the right hand side plastic panel first (being careful with
the I/O wiring) and unscrew the two screws on the glass panel, before lifting away from the chassis.
POWER SUPPLY INSTALLATION
4
POWER SUPPLY INSTALLATION
EN
• Place PSU in the bottom rear right side of the case, within the rear chamber.
x4
• Align the holes and secure with screws.
INSTALLATION DES NETZTEILS
DE
• Platzieren Sie das Netzteil an der unteren rechten Seite des Gehäuses
unter der Netzteilabdeckung.
• Richten Sie die Bohrungen des Netzteils an der Rückseite des Gehäuses
aus und befestigen Sie es mit Schrauben.
3.5" Drive Screw
2.5" SDD INSTALLATION (R)
7
2.5" SSD INSTALLATION (REAR)
EN
• Align the 2.5" HDD/SSD with the screw holes on the top right hand side of the rear of the chassis
and mount using screws (please note, only 2 screws can be used to mount the SSD's in this position)
2.5" SSD-INSTALLATION (RÜCKSEITE)
DE
• Richten Sie die Bohrungen des Laufwerks oben rechts der Rückseite des Laufwerks und
befestigen Sie es mit Schrauben. Beachten Sie, dass pro Laufwerk nur zwei
Schrauben benötigt werden.
MOTHERBOARD INSTALLATION
3
ENTFERNEN DER SEITENTEILE
DE
EN
• Entfernen Sie das linke Seitenteil, indem Sie die vier Rändelschrauben und heben Sie das Paneel ab.
• Align your motherboard with the chassis to locate where the stand-offs should be installed.
• Entfernen Sie das rechte Seitenteil, indem Sie die beiden rückwärtigen Rändelschrauben
Once done, remove the motherboard and fasten stand-offs accordingly.
entfernen und das Paneel nach hinten ziehen.
• Insert your motherboard I/O plate into the cutout at the rear of the case.
• Um die Front zu entfernen, lösen Sie zunächst vorsichtig die rechte Kunststoffabdeckung ab. Achten Sie
• Place your motherboard into the chassis, making sure the rear ports fit into the I/O plate.
dabei auf die Verkabelung. Anschließen entfernen Sie die beiden Schrauben und heben Sie das Temperglaspaneel ab.
• Use the provided motherboard screws to attach your motherboard to the chassis.
DE
• Richten Sie Ihr Mainboard im Gehäuse aus, um festzustellen, wo die
Abstandshalter befestigt werden sollen. Entfernen Sie anschließend das
Mainboard und verschrauben Sie die Abstandshalter an den vermerkten Stellen.
• Befestigen Sie das I/O-Shield ihres Mainboards im Ausschnitt an der
Rückseite des Gehäuses.
• Platzieren Sie Ihr Motherboard im Gehäuse und achten Sie darauf, dass die
hinteren Anschlüsse in das I/O-Shield passen.
• Verwenden Sie die mitgelieferten Schrauben Ihres Mainboards, um es an den
Abstandshaltern im Gehäuse zu befestigen.
GRAPHICS CARD/PCI-E CARD INSTALLATION
5
EN
• Remove the rear PCI-E slot covers as necessary (depending on the slot size of your card)
• Carefully position and slide your PCI-E card into place,
then secure with the add-on card screws supplied.
• If mounting vertically, attach the provided vertical GPU bracket to the PSU shroud, secure
your Kolink PCI-E riser cable to it (sold separately) and attach the cable to the motherboard.
Remove the rear PCI-E slot covers as necessary, then carefully position your PCI-E card,
slot into the PCI-E riser mount and secure with the add-on screws supplied.
DE
• Entfernen Sie die PCI-Slotblenden an der Rückseite entsprechend der Größe ihrer Grafikkarte.
• Richten Sie ihre Grafikkarte am Mainboard aus und drücken Sie sie vorsichtig in den
• Bei einer vertikalen Installation befestigen Sie zunächst die mitgelieferte Halterung an
3.5" HDD INSTALLATION
8
EN
• Mount your HDD to the bracket using the supplied screws and rubber grommets.
DE
• Befestigen Sie das Laufwerk am Bracket mit Hilfe der beiliegenden
Schrauben und Gummitüllen.
MOTHERBOARD INSTALLATION
MAINBOARD INSTALLATION
VIDEO CARD/PCI-E
CARD INSTALLATION
INSTALLATION DER
GRAFIKKARTE/PCI-E-KARTE
entsprechenden Slot. Befestigen Sie die Grafikkarte mit den entsprecheden Schrauben an
der Rückseite des Gehäuses.
der Netzteilabdeckung und befestigen Sie die optionale Riser-Karte dort und an ihrer
Grafikkarte. Entfernen Sie die entsprechenden PCI-Slotblenden, richten Sie die
Grafikkarte vorsichtig aus und befestigen Sie sie mit den mitgelieferten Scharuben.
3.5" HDD INSTALLATION
3.5" HDD-INSTALLATION
