UNITY ARENA ARGB
PWM Signal Cable:
→ Connect to MB
3 pin ARGB cable (5V/Data/-/GND)

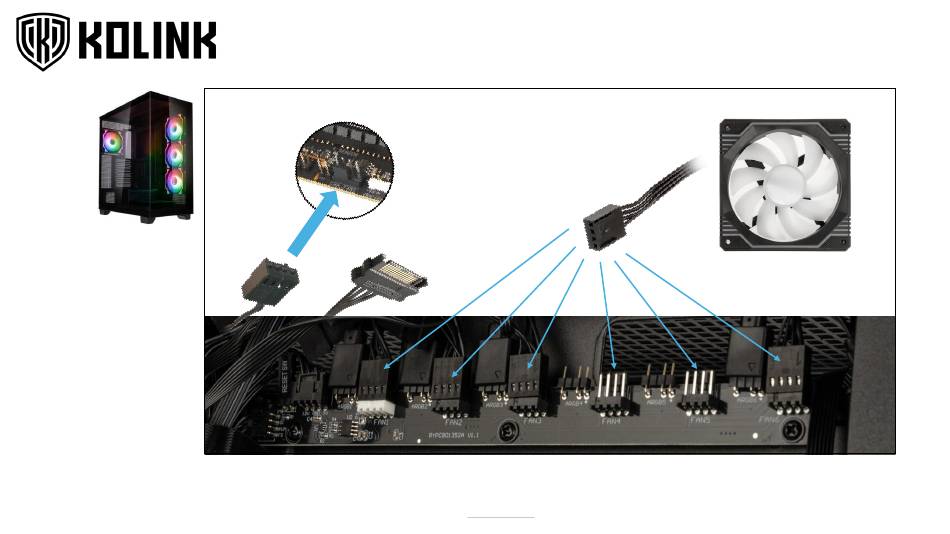

Connect up to 6 fans to the ARGB fan hub controller. 4 fans are pre-installed. Connect additional fans to the free PWM headers. Connect the PWM signal cable to a free
mainboard PWM fan header (e.g. CHA_FAN1) to control the fan speed via the mainboard. Connect the SATA power cable to a free SATA power connection on your PSU.
Note: Only use the PWM headers of the ARGB fan hub controller to control fans. AIO pumps require PWM headers with constant 12V from your mainboard.
ARGB INSTALLATION MANUAL
Power Connection
Mainboard
PWM Header
SATA Power Cable:
→ Connect to PSU
www.kolink.eu
Fan
PWM Cable
Page 1/3
Advertisement
Related Manuals for KOLINK Unity Arena ARGB
Summary of Contents for KOLINK Unity Arena ARGB
- Page 1 ARGB INSTALLATION MANUAL UNITY ARENA ARGB Power Connection Mainboard PWM Header PWM Cable PWM Signal Cable: → Connect to MB SATA Power Cable: → Connect to PSU 3 pin ARGB cable (5V/Data/-/GND) Connect up to 6 fans to the ARGB fan hub controller. 4 fans are pre-installed. Connect additional fans to the free PWM headers. Connect the PWM signal cable to a free mainboard PWM fan header (e.g.
- Page 2 ARGB INSTALLATION MANUAL UNITY ARENA ARGB ARGB Connection Mainboard 5V ARGB Header 5V ARGB Cable 5V ARGB MB-Sync.Cable: → Connect to MB 3 pin ARGB cable (5V/Data/-/GND) Connect up to 6 ARGB devices to the ARGB fan hub controller. 4 fans are pre-installed. Connect additional ARGB devices to the free headers. Connect the 5V ARGB MB sync.
- Page 3 ARGB INSTALLATION MANUAL UNITY ARENA ARGB ARGB Control DUAL FUNCTION BUTTON Function 1 RGB: Effects Press the button to switch the RGB effects. Function 2: MB Sync on/off Press and hold the button for 3 seconds to switch between mainboard control and case control.
