FRONT VIEW
- Ensure that the power supply is turned off before starting
the installation.
- Use a standard 35mm DIN rail channel and make sure
that it is securely mounted.
- As per Fig. 1(a), hold the power supply unit at a slight angle
and place it over the bottom edge of the DIN rail channel.
- Press the unit slightly upward until it mounts securely
on the DIN rail as per Fig. 1(b).
- To remove the power supply unit, push the instrument upward and
rotate it counterclockwise as per Fig. 2
PUSH
Fig. 1(a) - Mounting Stage

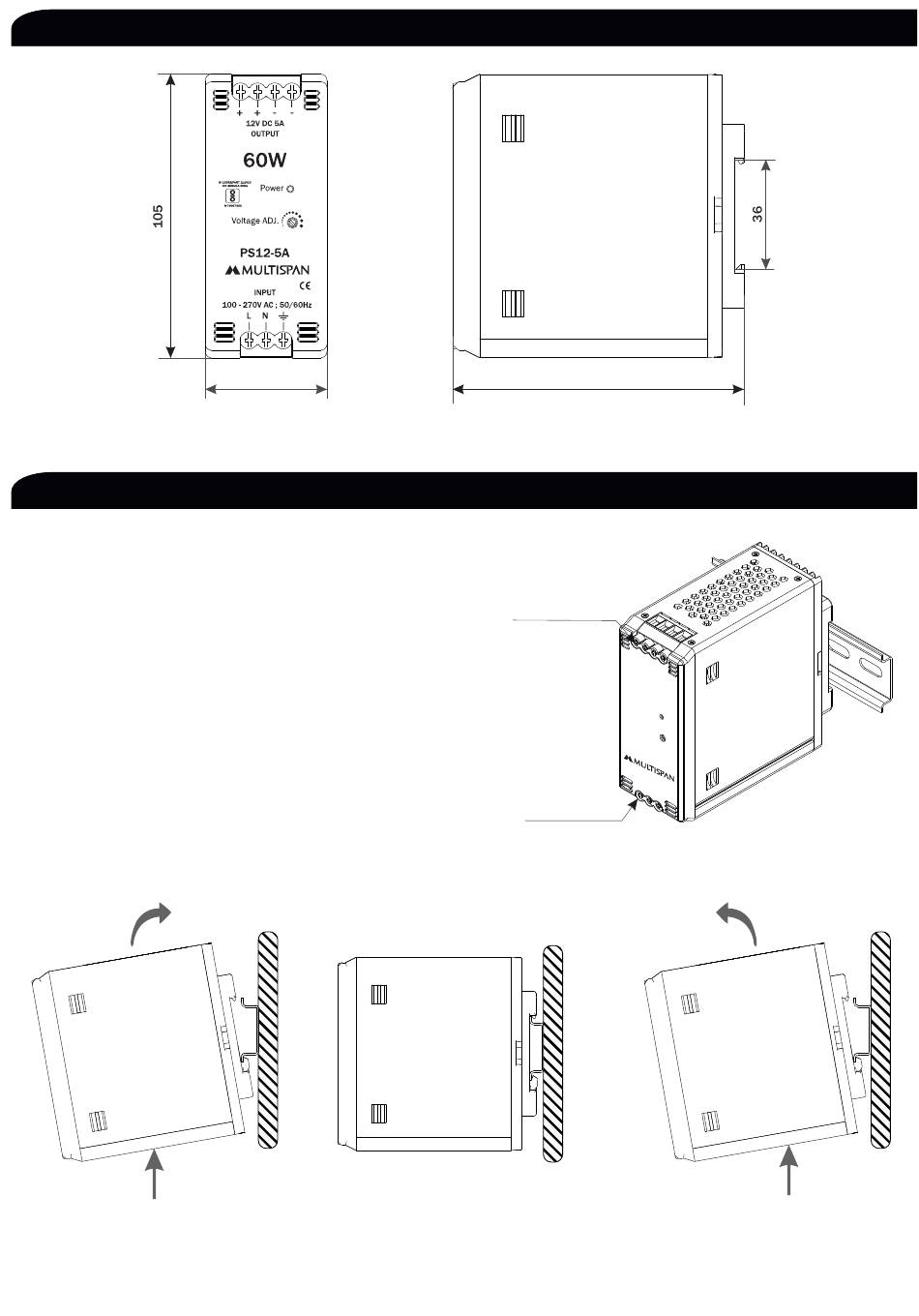

MECHANICAL DIMENSIONS
45
POWER SUPPLY UNIT INSTALLATION STEPS
Fig. 1(b) - Ideal Stage
110
RIGHT SIDE VIEW
OUTPUT TERMINAL
INPUT TERMINAL
All dimensions are in mm
PUSH
Fig. 2 - Removal Stage
