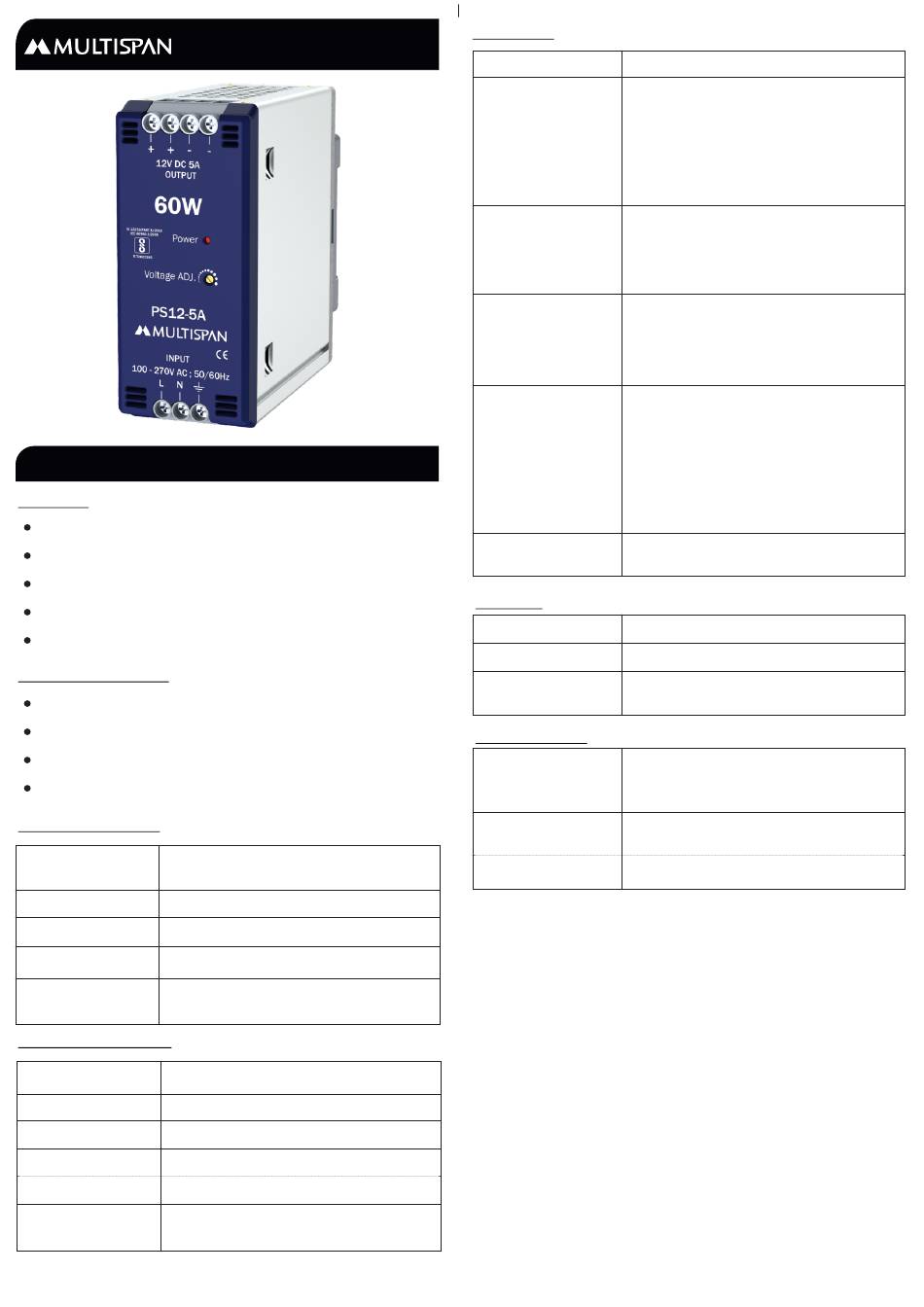

MULTISPAN PS12-5A Manual

Switch Mode Power Supply
TECHNICAL SPECIFICATION
Features :
60W rated power
Compact Size
LED Indication For Power ON
Din Rail Mount
Cooling by free air convection
Protection Available :
Overload
Over Voltage
Output short circuit
Over Temperature
Input Specification :
Supply Voltage 100 to 270V AC±10%,(L-N)
Frequency Range 50 / 60Hz
AC Current (TYP.) 1A@100V AC, 0.52A@270V AC
Efficiency (TYP.) >85%@230V AC
<1 sec@230V AC &
Start UP time
<3 sec@100VAC (Full Load)
Output Specification :
Output Voltage
11.50V - 13.50V DC
Output Current 5A at 12V ; 4.44A at 13.50V DC
Ripple & noise
<1% of V out
Line Regulation
±1%
Load Regulation
±1%
<60ms at 230V AC &
Hold UP Time
>15ms at 100V AC (Full Load)
Protection :
PS12-5A
Input Fuse
Output Over Load
Output Short Circuit
Output Over Voltage
Over Temperature
Isolation between
Input and Output :
Physical :
Mounting Type
Size (H) x (W) x (D)
Material
Environmental :
Working
Temperature
Storage
Temperature
Relative Humidity
3.15A-250V AC Internal
110% to 120% of rated
Output Current protection
Protection Type :Hiccup
mode;recover automatically
after fault condition
is removed
Hiccup mode when output
is shorted; Recovers
automatically after fault
condition is removed.
SMPS Latches off if output
voltage Exceeds the
specified output
voltage Limits.
Power supply shuts down
when the temperature
goes above specified limit;
Turns on automatically
after temperature goes
back to Normal operating
conditions.
2.5 KV
Din Rail Mount
105 x 45 x 110mm
ABS
Front
Aluminum
Enclosure
-25°C to 50°C * De-rate
output power at 3w/°C
above +50°C Ambient
-40°C to 85°C
95% RH Non-condensing
