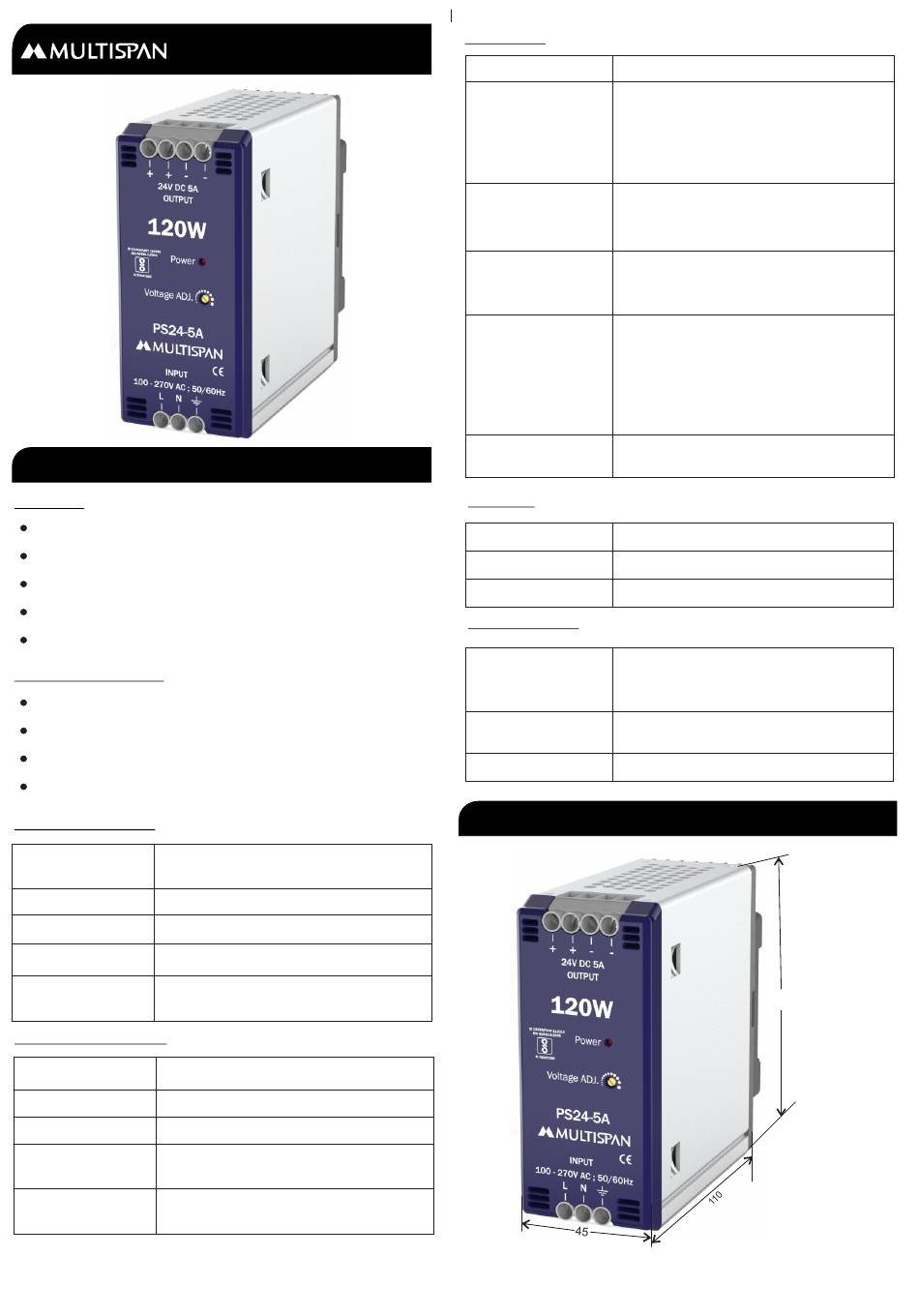

MULTISPAN PS24-5A Manual

Switch Mode Power Supply
TECHNICAL SPECIFICATION
Features :
120W rated power
Compact Size
LED Indicate For Power ON
Din Rail Mount
Cooling by free air convection
Protection Available :
Overload
Over Voltage
Output short circuit
Over Temperature
Input Specification :
Supply Voltage 100 to 270V AC±10%,(L-N)
Frequency Range 50 / 60Hz
AC Current (TYP.) 2.1A@100V AC, 0.95A@270V AC
Efficiency (TYP.)
>89%@230V AC
<1 sec@230V AC &
Start UP time
<3 sec@100VAC (Full Load)
Output Specification :
Output Voltage 23 - 28V DC
Output Current
5A at 24; 4.29A at 28V
Ripple & noise <1% of V out
Line & Load
±1%
Regulation
<60ms at 230V AC &
Hold UP Time
>15ms at 100V AC (Full Load)
Protection :
PS24-5A
Input Fuse
Output Over Load
Output Short Circuit
Output Over Voltage
Over Temperature
Isolation between
Input and Output :
Physical :
Mounting Type
Size (H) x (W) x (D)
Material
Environmental :
Working
Temperature
Storage
Temperature
Relative Humidity
3.15A-250V AC Internal
110% to 120% of rated output
Current protection
Protection Type : hiccup mode;
recover automatically after fault
condition is removed
Hiccup mode when output is
shorted;Recovers automatically
after fault condition is removed.
SMPS Latches off if output
voltage Exceeds the specified
output voltage Limits.
Power supply shuts down when
the temperature goes above
specified limit;
Turns on automatically after
temperature goes back to
Normal operating conditions.
2.5 KV
Din Rail Mount
105 x 45 x 110
ABS + Metal
-25°C to 50°C * De-rate
output power at 3w/°C
above +50°C Ambient
-40°C to 85°C
95% RH Non-condensing
MECHANICAL INSTALLATION
105
